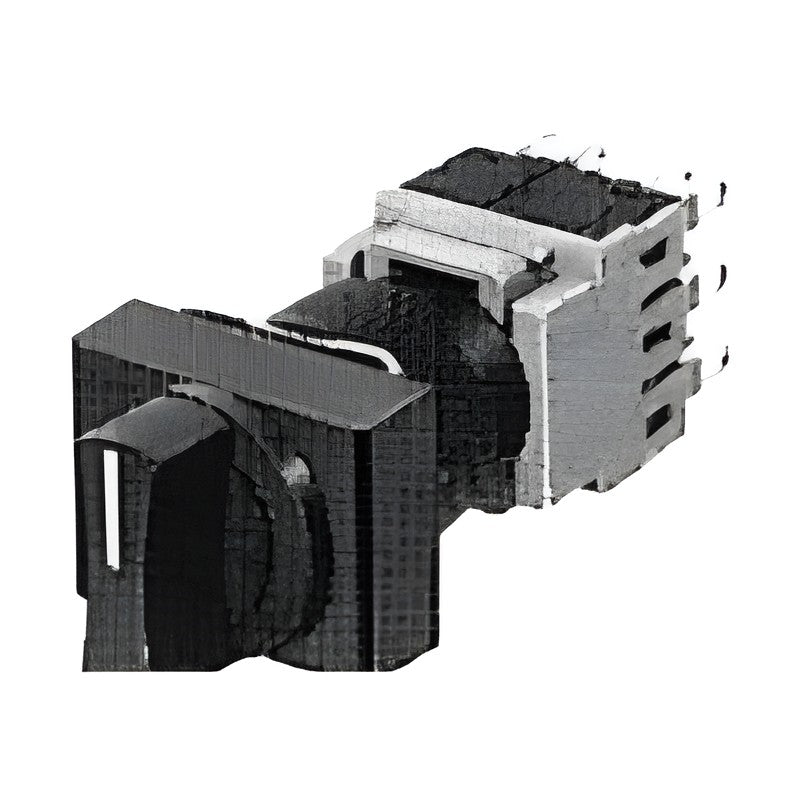

Fuji Electric AH164/AH165 Series Selector and Key Switches (16 mm)

AH164, AH165 and AH165-2 series selector switches with knob and key operators in 2- and 3-position versions, including an illuminated knob selector.

Key features

Knob and key operators
2- and 3-position, maintained and spring-return versions
Key removal positions selectable (key types)
Illuminated knob selector AH165-2PL (LED or incandescent)
Contacts 1a1b, 2a2b, 3a3b

Specifications

Mounting	16 mm class panel cut-out
Terminals	Solder tab (#110) or wrapping (W suffix)
Ordering	Base type + operation + colour + contacts + key code
Example	AH165-2J2B11A-W
Series	AH164 / AH165 / AH165-2
Key code	A standard; B-F optional
Source	Fuji Electric AH164/AH165 command switch catalogue, p. 5-6, 8-9

AH164-P		Series: AH164 (dust-tight) \| Operator: Knob \| Action: 2 or 3 position
AH165-P		Series: AH165 (oil-tight) \| Operator: Knob \| Action: 2 or 3 position
AH164-SP		Series: AH164 (dust-tight) \| Operator: Square knob \| Action: 2 or 3 position
AH165-SP		Series: AH165 (oil-tight) \| Operator: Square knob \| Action: 2 or 3 position
AH164-J		Series: AH164 (dust-tight) \| Operator: Key \| Action: 2 or 3 position
AH165-J		Series: AH165 (oil-tight) \| Operator: Key \| Action: 2 or 3 position
AH164-SJ		Series: AH164 (dust-tight) \| Operator: Square key \| Action: 2 or 3 position
AH165-SJ		Series: AH165 (oil-tight) \| Operator: Square key \| Action: 2 or 3 position
AH165-2P		Series: AH165-2 (oil-tight) \| Operator: Knob, round bezel \| Action: 2 or 3 position
AH165-2YP		Series: AH165-2 (oil-tight) \| Operator: Knob, square bezel \| Action: 2 or 3 position
AH165-2J		Series: AH165-2 (oil-tight) \| Operator: Key, round bezel \| Action: 2 or 3 position
AH165-2YJ		Series: AH165-2 (oil-tight) \| Operator: Key, square bezel \| Action: 2 or 3 position
AH165-2PL		Series: AH165-2 (oil-tight) \| Operator: Illuminated knob, round bezel \| Action: 2 or 3 position

Selector SwitchesFuji Electric

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric AH164/AH165 Series Selector and Key Switches (16 mm)

Brand Fuji Electric·Selector Switches

Available part numbers (13)

AH164-P, AH165-P, AH164-SP, AH165-SP, AH164-J, AH165-J, AH164-SJ, AH165-SJ, AH165-2P, AH165-2YP + 3 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
