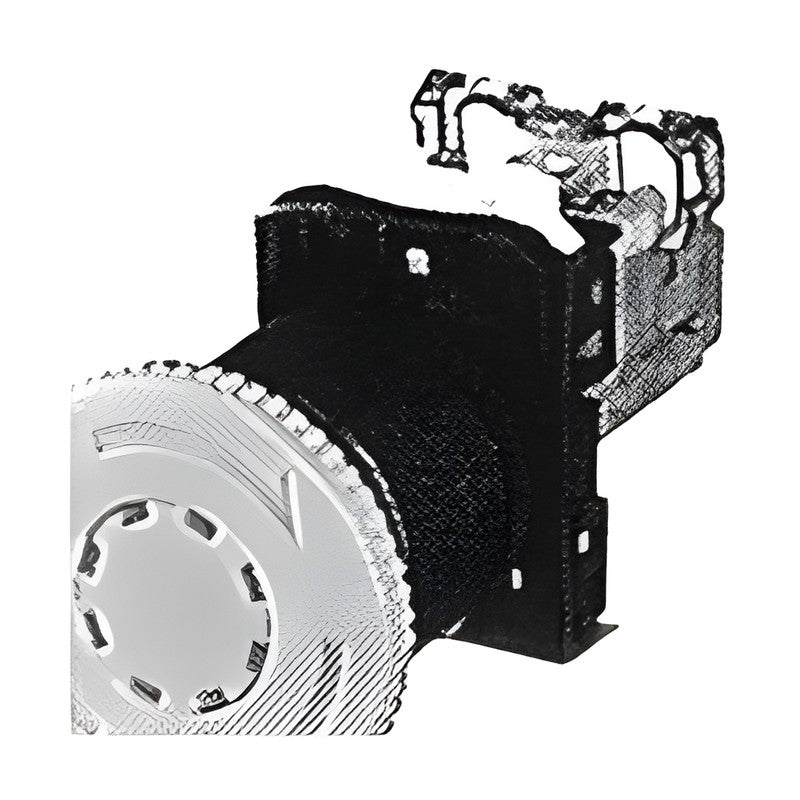

Fuji Electric AR22 Series 22 mm Emergency Stop Pushbuttons

Fuji Electric AR22 Series 22 mm Emergency Stop Pushbuttons

AR22 series emergency-stop pushbutton switches with direct-opening mechanism and safety trigger action, in non-illuminated and illuminated versions.

Key features

  • Direct (forced) opening mechanism and safety trigger action (catalogue)
  • Push-lock turn-reset 40 mm and 29 mm heads
  • Push-pull 35 mm head
  • Illuminated versions with LED or incandescent lamp
  • Red button

Specifications

Mounting hole 22.3 mm / 25.5 mm (common)
Contacts 1a to 4a / 4b, 2a2b, 3a3b (code)
Button colour Red (R)
Ordering Base type + contacts + (voltage/lamp) + R
Series AR22 / DR22
Mechanism Direct opening + safety trigger action
Source Fuji Electric AR22/DR22 command switch catalogue, p. 31, 33
AR22V2R Operator: Push-lock, 40 mm | Frame: Round | Action: Turn reset
AR22V4R Operator: Push-lock, 29 mm | Frame: Round | Action: Turn reset
AR22Q2R Operator: Push-pull, 35 mm | Frame: Round | Action: Pull reset
AR22V2L Operator: Illuminated push-lock, 40 mm | Frame: Round | Action: Turn reset
AR22VAL Operator: Illuminated push-lock, clear, 40 mm | Frame: Round | Action: Turn reset
Emergency Stop SwitchesFuji Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric AR22 Series 22 mm Emergency Stop Pushbuttons

Brand Fuji Electric·Emergency Stop Switches

Available part numbers (5)

AR22V2R, AR22V4R, AR22Q2R, AR22V2L, AR22VAL

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AR22V2ROperator: Push-lock, 40 mm | Frame: Round | Action: Turn reset
AR22V4ROperator: Push-lock, 29 mm | Frame: Round | Action: Turn reset
AR22Q2ROperator: Push-pull, 35 mm | Frame: Round | Action: Pull reset
AR22V2LOperator: Illuminated push-lock, 40 mm | Frame: Round | Action: Turn reset
AR22VALOperator: Illuminated push-lock, clear, 40 mm | Frame: Round | Action: Turn reset
