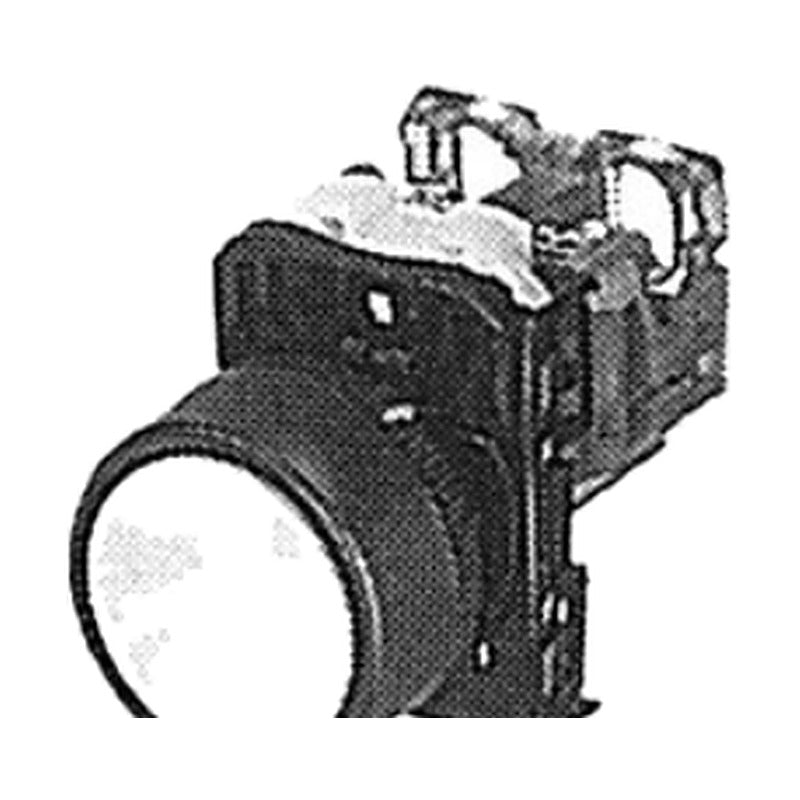

Fuji Electric AR22 Series 22 mm Pushbutton Switches

AR22 series 22 mm (25 mm) non-illuminated pushbutton switches in round, square and square-round frames, including full-guard and ring-select operators.

Key features

Flat, extended, medium, large, full-guard and ring-select operators
Momentary and alternate action
Round (R), square (S) and square-round (Y) frames
Button colours G, R, B, W, Y, A, S
Fits 22.3 mm and 25.5 mm panel holes

Specifications

Mounting hole	22.3 mm / 25.5 mm (common)
Contacts	1a to 4a / 4b, 2a2b, 3a3b (code)
Ordering	Base type + contacts + colour
Example	AR22F0R-11B
Series	AR22 / DR22
Button colours	G, R, B, W, Y, A, S
Source	Fuji Electric AR22/DR22 command switch catalogue, p. 30-31, 33

AR22F0R		Operator: Flat, 24 mm \| Frame: Round \| Action: Momentary
AR22F5R		Operator: Flat, 24 mm \| Frame: Round \| Action: Alternate
AR22E0R		Operator: Extended, 24 mm \| Frame: Round \| Action: Momentary
AR22E5R		Operator: Extended, 24 mm \| Frame: Round \| Action: Alternate
AR22M0R		Operator: Large, 40 mm \| Frame: Round \| Action: Momentary
AR22M5R		Operator: Large, 40 mm \| Frame: Round \| Action: Alternate
AR22M4R		Operator: Medium, 29 mm \| Frame: Round \| Action: Momentary
AR22G3R		Operator: Full guard, 24 mm \| Frame: Round \| Action: Momentary
AR22G8R		Operator: Full guard, 24 mm \| Frame: Round \| Action: Alternate
AR22M3R		Operator: Full guard large, 40 mm \| Frame: Round \| Action: Momentary
AR22S1R		Operator: Ring select, 24 mm \| Frame: Round \| Action: Momentary
AR22S2R		Operator: Ring select, 24 mm \| Frame: Round \| Action: Momentary
AR22S3R		Operator: Ring select, 24 mm \| Frame: Round \| Action: Momentary
AR22S6R		Operator: Ring select, 24 mm \| Frame: Round \| Action: Momentary
AR22F0S		Operator: Flat, 24 mm square \| Frame: Square \| Action: Momentary
AR22F5S		Operator: Flat, 24 mm square \| Frame: Square \| Action: Alternate
AR22E0S		Operator: Extended, 24 mm square \| Frame: Square \| Action: Momentary
AR22E5S		Operator: Extended, 24 mm square \| Frame: Square \| Action: Alternate
AR22F0Y		Operator: Flat, 24 mm \| Frame: Square-round \| Action: Momentary
AR22F5Y		Operator: Flat, 24 mm \| Frame: Square-round \| Action: Alternate
AR22E0Y		Operator: Extended, 24 mm \| Frame: Square-round \| Action: Momentary
AR22E5Y		Operator: Extended, 24 mm \| Frame: Square-round \| Action: Alternate
AR22M4Y		Operator: Medium, 29 mm \| Frame: Square-round \| Action: Momentary

PushbuttonsFuji Electric

23 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric AR22 Series 22 mm Pushbutton Switches

Brand Fuji Electric·Pushbuttons

Available part numbers (23)

AR22F0R, AR22F5R, AR22E0R, AR22E5R, AR22M0R, AR22M5R, AR22M4R, AR22G3R, AR22G8R, AR22M3R + 13 more — see full table ↓
