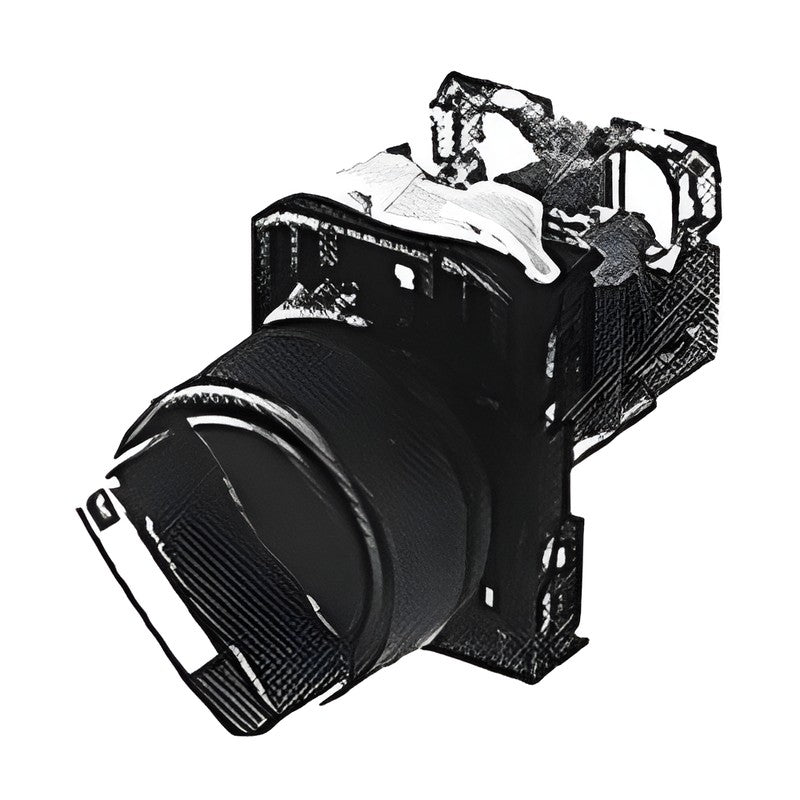

Fuji Electric AR22 Series 22 mm Selector and Key Switches

AR22 series selector switches with knob, long-knob, round-knob and key operators, standard and control types, plus illuminated knob selectors.

Key features

2- to 5-position (key types 2-3 position) per catalogue
Maintained, spring-return and mixed return
Control type (C) for more complex contact patterns
Key removal positions A-G selectable
Illuminated selectors with LED or incandescent lamp

Specifications

Mounting hole	22.3 mm / 25.5 mm (common)
Contacts	1a to 4a / 4b, 2a2b, 3a3b (code)
Ordering	Base type + positions + contacts + colour + key
Example	AR22PR-211B
Series	AR22 / DR22
Key code	A standard; C, D, E, F
Source	Fuji Electric AR22/DR22 command switch catalogue, p. 31-32, 34

AR22PR		Operator: Knob \| Frame: Round \| Action: Standard
AR22PCR		Operator: Knob \| Frame: Round \| Action: Control type
AR22WR		Operator: Long knob \| Frame: Round \| Action: Standard
AR22WCR		Operator: Long knob \| Frame: Round \| Action: Control type
AR22RR		Operator: Round knob \| Frame: Round \| Action: Standard
AR22RCR		Operator: Round knob \| Frame: Round \| Action: Control type
AR22JR		Operator: Key \| Frame: Round \| Action: Standard
AR22JCR		Operator: Key \| Frame: Round \| Action: Control type
AR22PY		Operator: Knob \| Frame: Square-round \| Action: Standard
AR22PCY		Operator: Knob \| Frame: Square-round \| Action: Control type
AR22WY		Operator: Long knob \| Frame: Square-round \| Action: Standard
AR22WCY		Operator: Long knob \| Frame: Square-round \| Action: Control type
AR22RY		Operator: Round knob \| Frame: Square-round \| Action: Standard
AR22RCY		Operator: Round knob \| Frame: Square-round \| Action: Control type
AR22JY		Operator: Key \| Frame: Square-round \| Action: Standard
AR22JCY		Operator: Key \| Frame: Square-round \| Action: Control type
AR22PL		Operator: Illuminated knob \| Frame: Round \| Action: Standard
AR22PP		Operator: Illuminated knob \| Frame: Square-round \| Action: Standard

Selector SwitchesFuji Electric

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric AR22 Series 22 mm Selector and Key Switches

Brand Fuji Electric·Selector Switches

Available part numbers (18)

AR22PR, AR22PCR, AR22WR, AR22WCR, AR22RR, AR22RCR, AR22JR, AR22JCR, AR22PY, AR22PCY + 8 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
