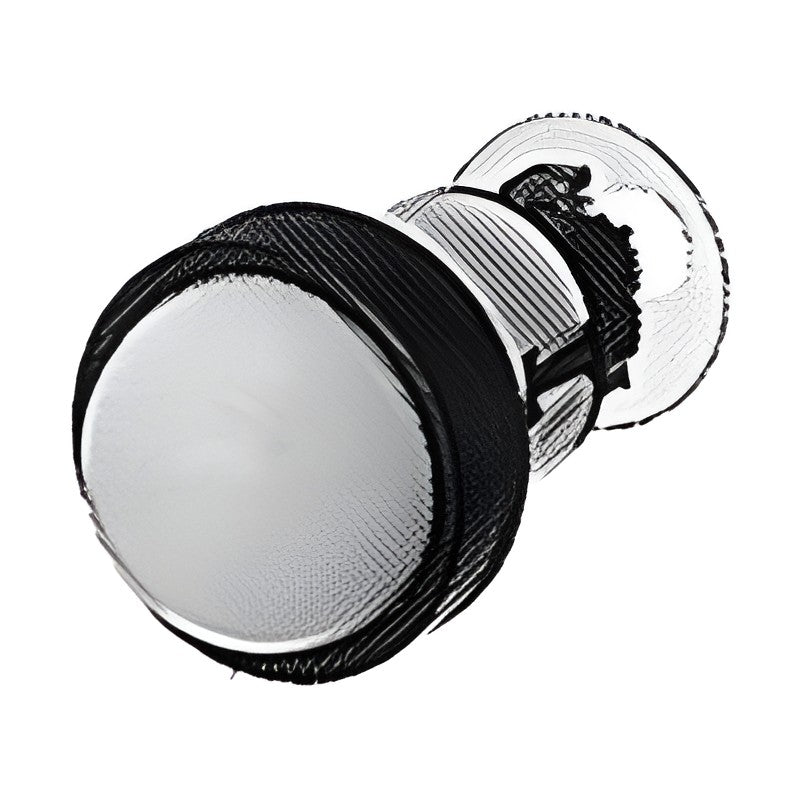

Fuji Electric DR22 Series 22 mm Pilot Lights

Fuji Electric DR22 Series 22 mm Pilot Lights

DR22 series 22 mm (25 mm) pilot lights with LED or incandescent lamps in round, square and square-round frames.

Key features

  • Dome, extended and flat lens shapes
  • LED or incandescent light source
  • Full-voltage and transformer types (AC110/220V)
  • Lens colours G, R, W, Y, A, S (blue not for LED)
  • Matches AR22 switch styling

Specifications

Mounting hole 22.3 mm / 25.5 mm (common)
Ordering Base type + voltage + lamp + colour
Example DR22D0L-E3G
Series AR22 / DR22
Light source LED (3) or incandescent (4)
Lamp voltages AC/DC5.5V to AC220V
Source Fuji Electric AR22/DR22 command switch catalogue, p. 32-33
DR22D0L Operator: Dome, 24 mm | Frame: Round | Action: Indicator
DR22E3L Operator: Extended, 24 mm | Frame: Round | Action: Indicator
DR22F3M Operator: Flat, 24 mm square | Frame: Square | Action: Indicator
DR22F4M Operator: Flat, 24 mm square, clear lens | Frame: Square | Action: Indicator
DR22E3M Operator: Extended, 24 mm square | Frame: Square | Action: Indicator
DR22E3P Operator: Extended, 24 mm | Frame: Square-round | Action: Indicator
Pilot LightsFuji Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric DR22 Series 22 mm Pilot Lights

Brand Fuji Electric·Pilot Lights

Available part numbers (6)

DR22D0L, DR22E3L, DR22F3M, DR22F4M, DR22E3M, DR22E3P
