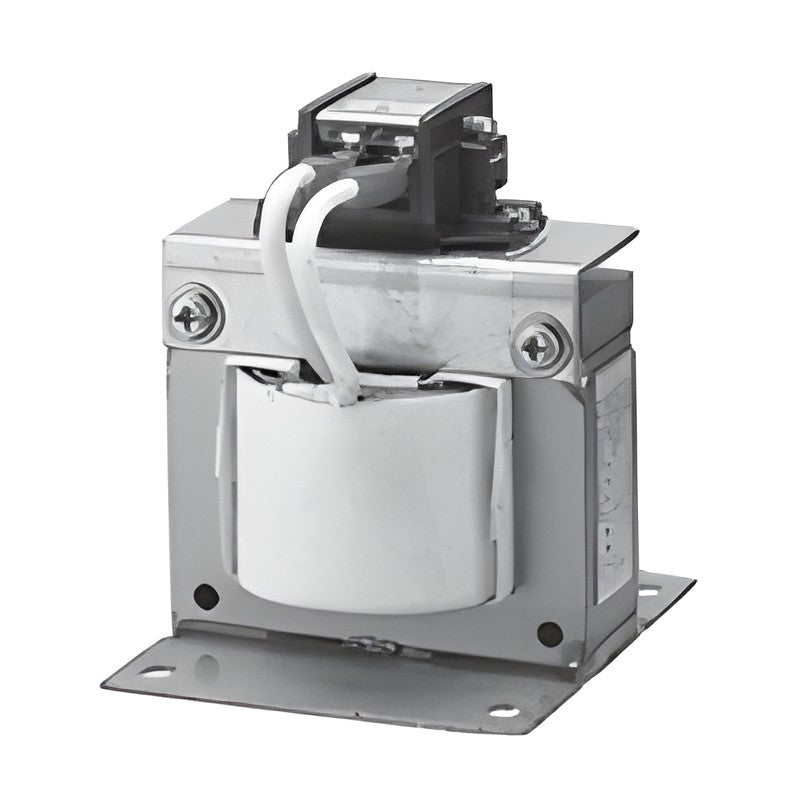

Fuji Electric DCR2 / DCR4 DC Reactors for FRENIC Inverters

Fuji Electric DCR2 / DCR4 DC Reactors for FRENIC Inverters

DCR2 (200V) and DCR4 (400V) DC reactors connected to the inverter DC link (P1-P+) to improve input power factor and suppress harmonics, for standard applicable motors 0.4-710 kW.

Key features

  • Improves inverter input power factor and reduces harmonics
  • Selection by standard applicable motor capacity (HD/LD)
  • A/B types: input power factor 90-95 %
  • C types (37 kW and up): input power factor 86-90 %
  • Supplied as standard with inverters for motors 75 kW and above

Specifications

Product DC reactor (DCR)
Connection Inverter P1 - P(+) terminals
Applicable FRENIC-MEGA and FRENIC series
Code key DCR2 = 200V, DCR4 = 400V; number = motor kW
Mounting 4 mounting holes, 2 terminal holes
Source Fuji Electric FRENIC Series inverter catalogue (KR ed.), p. 64
DCR2-0.4 Voltage class: 200V class | Applicable motor: 0.4 kW | Input power factor: 90-95 % | Approx. mass: 1 kg
DCR2-0.75 Voltage class: 200V class | Applicable motor: 0.75 kW | Input power factor: 90-95 % | Approx. mass: 1.4 kg
DCR2-1.5 Voltage class: 200V class | Applicable motor: 1.5 kW | Input power factor: 90-95 % | Approx. mass: 1.6 kg
DCR2-2.2 Voltage class: 200V class | Applicable motor: 2.2 kW | Input power factor: 90-95 % | Approx. mass: 1.8 kg
DCR2-3.7 Voltage class: 200V class | Applicable motor: 3.7 kW | Input power factor: 90-95 % | Approx. mass: 2.6 kg
DCR2-5.5 Voltage class: 200V class | Applicable motor: 5.5 kW | Input power factor: 90-95 % | Approx. mass: 3.6 kg
DCR2-7.5 Voltage class: 200V class | Applicable motor: 7.5 kW | Input power factor: 90-95 % | Approx. mass: 3.8 kg
DCR2-11 Voltage class: 200V class | Applicable motor: 11 kW | Input power factor: 90-95 % | Approx. mass: 4.3 kg
DCR2-15 Voltage class: 200V class | Applicable motor: 15 kW | Input power factor: 90-95 % | Approx. mass: 5.9 kg
DCR2-18.5 Voltage class: 200V class | Applicable motor: 18.5 kW | Input power factor: 90-95 % | Approx. mass: 7.4 kg
DCR2-22A Voltage class: 200V class | Applicable motor: 22 kW | Input power factor: 90-95 % | Approx. mass: 7.5 kg
DCR2-30B Voltage class: 200V class | Applicable motor: 30 kW | Input power factor: 90-95 % | Approx. mass: 12 kg
DCR2-37B Voltage class: 200V class | Applicable motor: 37 kW | Input power factor: 90-95 % | Approx. mass: 14 kg
DCR2-37C Voltage class: 200V class | Applicable motor: 37 kW | Input power factor: 86-90 % | Approx. mass: 7.4 kg
DCR2-45B Voltage class: 200V class | Applicable motor: 45 kW | Input power factor: 90-95 % | Approx. mass: 16 kg
DCR2-45C Voltage class: 200V class | Applicable motor: 45 kW | Input power factor: 86-90 % | Approx. mass: 8.4 kg
DCR2-55B Voltage class: 200V class | Applicable motor: 55 kW | Input power factor: 90-95 % | Approx. mass: 16 kg
DCR2-55C Voltage class: 200V class | Applicable motor: 55 kW | Input power factor: 86-90 % | Approx. mass: 11 kg
DCR2-75C Voltage class: 200V class | Applicable motor: 75 kW | Input power factor: 86-90 % | Approx. mass: 12 kg
DCR2-90C Voltage class: 200V class | Applicable motor: 90 kW | Input power factor: 86-90 % | Approx. mass: 14 kg
DCR2-110C Voltage class: 200V class | Applicable motor: 110 kW | Input power factor: 86-90 % | Approx. mass: 17 kg
DCR4-0.4 Voltage class: 400V class | Applicable motor: 0.4 kW | Input power factor: 90-95 % | Approx. mass: 1 kg
DCR4-0.75 Voltage class: 400V class | Applicable motor: 0.75 kW | Input power factor: 90-95 % | Approx. mass: 1.4 kg
DCR4-1.5 Voltage class: 400V class | Applicable motor: 1.5 kW | Input power factor: 90-95 % | Approx. mass: 1.6 kg
DCR4-2.2 Voltage class: 400V class | Applicable motor: 2.2 kW | Input power factor: 90-95 % | Approx. mass: 2 kg
DCR4-3.7 Voltage class: 400V class | Applicable motor: 3.7 kW | Input power factor: 90-95 % | Approx. mass: 2.6 kg
DCR4-5.5 Voltage class: 400V class | Applicable motor: 5.5 kW | Input power factor: 90-95 % | Approx. mass: 2.6 kg
DCR4-7.5 Voltage class: 400V class | Applicable motor: 7.5 kW | Input power factor: 90-95 % | Approx. mass: 4.2 kg
DCR4-11 Voltage class: 400V class | Applicable motor: 11 kW | Input power factor: 90-95 % | Approx. mass: 4.3 kg
DCR4-15 Voltage class: 400V class | Applicable motor: 15 kW | Input power factor: 90-95 % | Approx. mass: 5.9 kg
DCR4-18.5 Voltage class: 400V class | Applicable motor: 18.5 kW | Input power factor: 90-95 % | Approx. mass: 7.2 kg
DCR4-22A Voltage class: 400V class | Applicable motor: 22 kW | Input power factor: 90-95 % | Approx. mass: 7.2 kg
DCR4-30B Voltage class: 400V class | Applicable motor: 30 kW | Input power factor: 90-95 % | Approx. mass: 13 kg
DCR4-37B Voltage class: 400V class | Applicable motor: 37 kW | Input power factor: 90-95 % | Approx. mass: 15 kg
DCR4-37C Voltage class: 400V class | Applicable motor: 37 kW | Input power factor: 86-90 % | Approx. mass: 7.4 kg
DCR4-45B Voltage class: 400V class | Applicable motor: 45 kW | Input power factor: 90-95 % | Approx. mass: 18 kg
DCR4-45C Voltage class: 400V class | Applicable motor: 45 kW | Input power factor: 86-90 % | Approx. mass: 8.4 kg
DCR4-55B Voltage class: 400V class | Applicable motor: 55 kW | Input power factor: 90-95 % | Approx. mass: 20 kg
DCR4-55C Voltage class: 400V class | Applicable motor: 55 kW | Input power factor: 86-90 % | Approx. mass: 11 kg
DCR4-75C Voltage class: 400V class | Applicable motor: 75 kW | Input power factor: 86-90 % | Approx. mass: 13 kg
DCR4-90C Voltage class: 400V class | Applicable motor: 90 kW | Input power factor: 86-90 % | Approx. mass: 15 kg
DCR4-110C Voltage class: 400V class | Applicable motor: 110 kW | Input power factor: 86-90 % | Approx. mass: 19 kg
DCR4-132C Voltage class: 400V class | Applicable motor: 132 kW | Input power factor: 86-90 % | Approx. mass: 22 kg
DCR4-160C Voltage class: 400V class | Applicable motor: 160 kW | Input power factor: 86-90 % | Approx. mass: 26 kg
DCR4-200C Voltage class: 400V class | Applicable motor: 200 kW | Input power factor: 86-90 % | Approx. mass: 30 kg
DCR4-220C Voltage class: 400V class | Applicable motor: 220 kW | Input power factor: 86-90 % | Approx. mass: 33 kg
DCR4-280C Voltage class: 400V class | Applicable motor: 280 kW | Input power factor: 86-90 % | Approx. mass: 37 kg
DCR4-315C Voltage class: 400V class | Applicable motor: 315 kW | Input power factor: 86-90 % | Approx. mass: 40 kg
DCR4-355C Voltage class: 400V class | Applicable motor: 355 kW | Input power factor: 86-90 % | Approx. mass: 49 kg
DCR4-400C Voltage class: 400V class | Applicable motor: 400 kW | Input power factor: 86-90 % | Approx. mass: 52 kg
DCR4-450C Voltage class: 400V class | Applicable motor: 450 kW | Input power factor: 86-90 % | Approx. mass: 62 kg
DCR4-500C Voltage class: 400V class | Applicable motor: 500 kW | Input power factor: 86-90 % | Approx. mass: 72 kg
DCR4-630C Voltage class: 400V class | Applicable motor: 630 kW | Input power factor: 86-90 % | Approx. mass: 75 kg
DCR4-710C Voltage class: 400V class | Applicable motor: 710 kW | Input power factor: 86-90 % | Approx. mass: 95 kg
