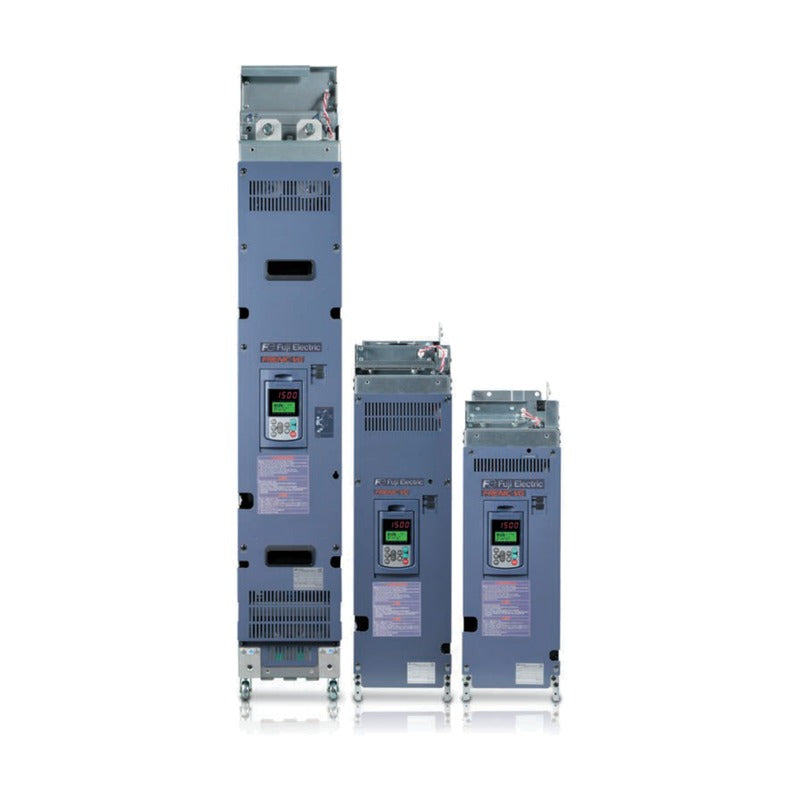

Fuji Electric FRENIC-VG (VG1) Vector Control Inverters, Unit Type

Fuji Electric FRENIC-VG (VG1) Vector Control Inverters, Unit Type

FRENIC-VG unit-type high-performance vector control inverters, 0.75-90 kW (200V) and 3.7-630 kW (400V) HD rating, with HD/MD/LD rating selection and built-in braking circuit up to 160 kW.

Key features

  • Speed response 600 Hz with sensor vector control
  • Induction and synchronous (PM) motor control
  • HD, MD and LD duty selection per application
  • Built-in braking circuit up to 160 kW
  • Option cards for PG, field networks, safety (STO, SS1, SLS, SBC)
  • Keypad with LCD in Japanese/English/Chinese/Korean

Specifications

Series FRENIC-VG (VG1)
HD overload 150 % 1 min, 200 % 3 s
MD overload 150 % 1 min
LD overload 120 % 1 min
Order suffix Manual language: J, E or C (specify)
Form Unit type
Source Fuji Electric FRENIC Series inverter catalogue (KR ed.), p. 65-74, 85
FRN0.75VG1S-2 Power supply: 3-ph 200V | HD motor: 0.75 kW | MD motor: - | LD motor: -
FRN1.5VG1S-2 Power supply: 3-ph 200V | HD motor: 1.5 kW | MD motor: - | LD motor: -
FRN2.2VG1S-2 Power supply: 3-ph 200V | HD motor: 2.2 kW | MD motor: - | LD motor: -
FRN3.7VG1S-2 Power supply: 3-ph 200V | HD motor: 3.7 kW | MD motor: - | LD motor: -
FRN5.5VG1S-2 Power supply: 3-ph 200V | HD motor: 5.5 kW | MD motor: - | LD motor: -
FRN7.5VG1S-2 Power supply: 3-ph 200V | HD motor: 7.5 kW | MD motor: - | LD motor: -
FRN11VG1S-2 Power supply: 3-ph 200V | HD motor: 11 kW | MD motor: - | LD motor: -
FRN15VG1S-2 Power supply: 3-ph 200V | HD motor: 15 kW | MD motor: - | LD motor: -
FRN18.5VG1S-2 Power supply: 3-ph 200V | HD motor: 18.5 kW | MD motor: - | LD motor: -
FRN22VG1S-2 Power supply: 3-ph 200V | HD motor: 22 kW | MD motor: - | LD motor: -
FRN30VG1S-2 Power supply: 3-ph 200V | HD motor: 30 kW | MD motor: - | LD motor: 37 kW
FRN37VG1S-2 Power supply: 3-ph 200V | HD motor: 37 kW | MD motor: - | LD motor: 45 kW
FRN45VG1S-2 Power supply: 3-ph 200V | HD motor: 45 kW | MD motor: - | LD motor: 55 kW
FRN55VG1S-2 Power supply: 3-ph 200V | HD motor: 55 kW | MD motor: - | LD motor: 75 kW
FRN75VG1S-2 Power supply: 3-ph 200V | HD motor: 75 kW | MD motor: - | LD motor: 90 kW
FRN90VG1S-2 Power supply: 3-ph 200V | HD motor: 90 kW | MD motor: - | LD motor: 110 kW
FRN3.7VG1S-4 Power supply: 3-ph 400V | HD motor: 3.7 kW | MD motor: - | LD motor: -
FRN5.5VG1S-4 Power supply: 3-ph 400V | HD motor: 5.5 kW | MD motor: - | LD motor: -
FRN7.5VG1S-4 Power supply: 3-ph 400V | HD motor: 7.5 kW | MD motor: - | LD motor: -
FRN11VG1S-4 Power supply: 3-ph 400V | HD motor: 11 kW | MD motor: - | LD motor: -
FRN15VG1S-4 Power supply: 3-ph 400V | HD motor: 15 kW | MD motor: - | LD motor: -
FRN18.5VG1S-4 Power supply: 3-ph 400V | HD motor: 18.5 kW | MD motor: - | LD motor: -
FRN22VG1S-4 Power supply: 3-ph 400V | HD motor: 22 kW | MD motor: - | LD motor: -
FRN30VG1S-4 Power supply: 3-ph 400V | HD motor: 30 kW | MD motor: - | LD motor: 37 kW
FRN37VG1S-4 Power supply: 3-ph 400V | HD motor: 37 kW | MD motor: - | LD motor: 45 kW
FRN45VG1S-4 Power supply: 3-ph 400V | HD motor: 45 kW | MD motor: - | LD motor: 55 kW
FRN55VG1S-4 Power supply: 3-ph 400V | HD motor: 55 kW | MD motor: - | LD motor: 75 kW
FRN75VG1S-4 Power supply: 3-ph 400V | HD motor: 75 kW | MD motor: - | LD motor: 90 kW
FRN90VG1S-4 Power supply: 3-ph 400V | HD motor: 90 kW | MD motor: 110 kW | LD motor: 110 kW
FRN110VG1S-4 Power supply: 3-ph 400V | HD motor: 110 kW | MD motor: 132 kW | LD motor: 132 kW
FRN132VG1S-4 Power supply: 3-ph 400V | HD motor: 132 kW | MD motor: 160 kW | LD motor: 160 kW
FRN160VG1S-4 Power supply: 3-ph 400V | HD motor: 160 kW | MD motor: 200 kW | LD motor: 200 kW
FRN200VG1S-4 Power supply: 3-ph 400V | HD motor: 200 kW | MD motor: 220 kW | LD motor: 220 kW
FRN220VG1S-4 Power supply: 3-ph 400V | HD motor: 220 kW | MD motor: 250 kW | LD motor: 280 kW
FRN280VG1S-4 Power supply: 3-ph 400V | HD motor: 280 kW | MD motor: 315 kW | LD motor: 355 kW
FRN315VG1S-4 Power supply: 3-ph 400V | HD motor: 315 kW | MD motor: 355 kW | LD motor: 400 kW
FRN355VG1S-4 Power supply: 3-ph 400V | HD motor: 355 kW | MD motor: 400 kW | LD motor: 450 kW
FRN400VG1S-4 Power supply: 3-ph 400V | HD motor: 400 kW | MD motor: 450 kW | LD motor: 500 kW
FRN500VG1S-4 Power supply: 3-ph 400V | HD motor: 500 kW | MD motor: - | LD motor: 630 kW
FRN630VG1S-4 Power supply: 3-ph 400V | HD motor: 630 kW | MD motor: - | LD motor: 710 kW
InvertersFuji Electric
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
