Fuji Electric RHC-D / RHF-D / RHD-D Stack Converters & Rectifiers

Fuji Electric RHC-D / RHF-D / RHD-D Stack Converters & Rectifiers

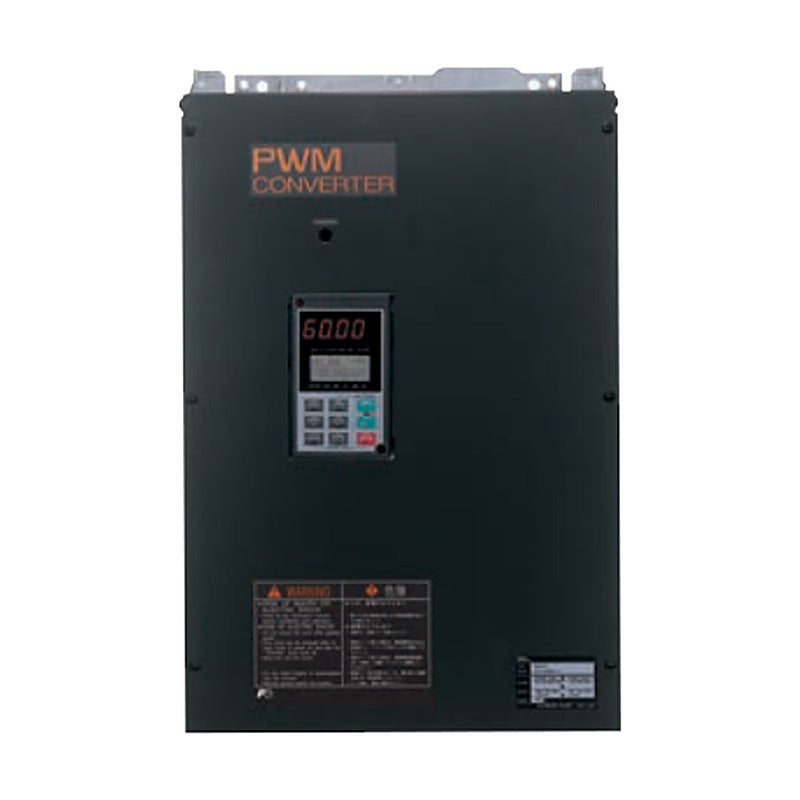

Stack-type DC supply equipment for FRENIC-VG stack inverters: RHC-D power-regenerative PWM converters, RHF-D filter stacks that integrate the converter peripherals, and RHD-D diode rectifiers.

Key features

  • RHC-D: high power factor PWM converter, 400V and 690V, up to 800 kW per stack
  • Phase-separated (B) stacks for 630-800 kW
  • RHF-D: filter stack combining the reactors and capacitors needed by RHC-D
  • RHD-D: diode rectifier supplying DC to inverter stacks
  • Parallel connection for large-capacity systems

Specifications

Series RHC-D / RHF-D / RHD-D (stack type)
Carrier frequency (RHC-D) 5 kHz fixed
MD rating 150 % 1 min
LD rating 110 % 1 min
Order suffix Final box after D: specify per catalogue
Source Fuji Electric FRENIC Series inverter catalogue (KR ed.), p. 97-109
RHC132S-4D Type: PWM converter RHC-D | Power supply: 3-ph 400V | Capacity: MD 132 kW / LD 160 kW
RHC160S-4D Type: PWM converter RHC-D | Power supply: 3-ph 400V | Capacity: MD 160 kW / LD 200 kW
RHC200S-4D Type: PWM converter RHC-D | Power supply: 3-ph 400V | Capacity: MD 200 kW / LD 220 kW
RHC220S-4D Type: PWM converter RHC-D | Power supply: 3-ph 400V | Capacity: MD 220 kW
RHC280S-4D Type: PWM converter RHC-D | Power supply: 3-ph 400V | Capacity: MD 280 kW / LD 315 kW
RHC315S-4D Type: PWM converter RHC-D | Power supply: 3-ph 400V | Capacity: MD 315 kW / LD 355 kW
RHC630B-4D Type: PWM converter RHC-D, phase-separated | Power supply: 3-ph 400V | Capacity: MD 630 kW / LD 710 kW
RHC710B-4D Type: PWM converter RHC-D, phase-separated | Power supply: 3-ph 400V | Capacity: MD 710 kW / LD 800 kW
RHC800B-4D Type: PWM converter RHC-D, phase-separated | Power supply: 3-ph 400V | Capacity: MD 800 kW / LD 1000 kW
RHC132S-69D Type: PWM converter RHC-D | Power supply: 3-ph 690V | Capacity: MD 132 kW / LD 160 kW
RHC160S-69D Type: PWM converter RHC-D | Power supply: 3-ph 690V | Capacity: MD 160 kW / LD 200 kW
RHC200S-69D Type: PWM converter RHC-D | Power supply: 3-ph 690V | Capacity: MD 200 kW / LD 220 kW
RHC250S-69D Type: PWM converter RHC-D | Power supply: 3-ph 690V | Capacity: MD 250 kW / LD 280 kW
RHC280S-69D Type: PWM converter RHC-D | Power supply: 3-ph 690V | Capacity: MD 280 kW / LD 315 kW
RHC315S-69D Type: PWM converter RHC-D | Power supply: 3-ph 690V | Capacity: MD 315 kW / LD 355 kW
RHF160S-4D Type: Filter stack RHF-D | Power supply: 3-ph 400V | Capacity: For RHC-D 160 kW class
RHF220S-4D Type: Filter stack RHF-D | Power supply: 3-ph 400V | Capacity: For RHC-D 220 kW class
RHF280S-4D Type: Filter stack RHF-D | Power supply: 3-ph 400V | Capacity: For RHC-D 280 kW class
RHF355S-4D Type: Filter stack RHF-D | Power supply: 3-ph 400V | Capacity: For RHC-D 355 kW class
RHF160S-69D Type: Filter stack RHF-D | Power supply: 3-ph 690V | Capacity: For RHC-D 160 kW class
RHF220S-69D Type: Filter stack RHF-D | Power supply: 3-ph 690V | Capacity: For RHC-D 220 kW class
RHF280S-69D Type: Filter stack RHF-D | Power supply: 3-ph 690V | Capacity: For RHC-D 280 kW class
RHF355S-69D Type: Filter stack RHF-D | Power supply: 3-ph 690V | Capacity: For RHC-D 355 kW class
RHD200S-4D Type: Diode rectifier RHD-D | Power supply: 3-ph 400V | Capacity: MD 200 kW / LD 220 kW
RHD315S-4D Type: Diode rectifier RHD-D | Power supply: 3-ph 400V | Capacity: MD 315 kW / LD 355 kW
RHD220S-69D Type: Diode rectifier RHD-D | Power supply: 3-ph 690V | Capacity: MD 220 kW / LD 250 kW
RHD450S-69D Type: Diode rectifier RHD-D | Power supply: 3-ph 690V | Capacity: MD 450 kW
