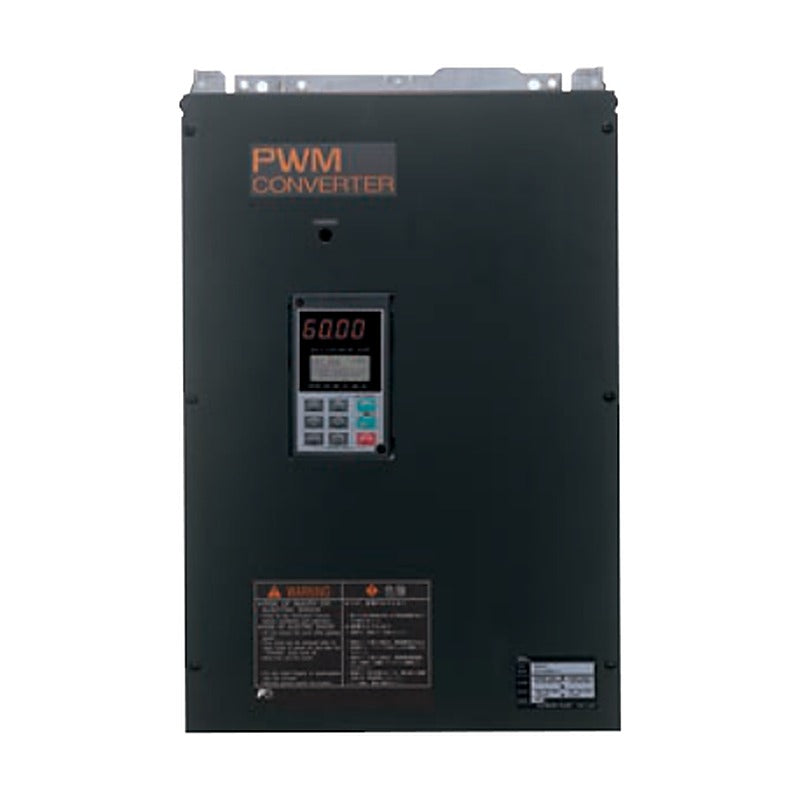

Fuji Electric RHC-C High Power-Factor PWM Converters (Unit Type)

Fuji Electric RHC-C High Power-Factor PWM Converters (Unit Type)

RHC-C unit-type high power-factor power-regenerative PWM converters for FRENIC inverters, 7.5-90 kW (200V) and 7.5-630 kW (400V), drastically reducing input harmonics and regenerating braking energy.

Key features

  • Sinusoidal input current by PWM control; input power factor 0.99 or more
  • Complies with harmonic suppression guidelines (Ki = 0)
  • Power regeneration improves braking and saves energy
  • MD (150 % 1 min) / LD (120 % 1 min) rating selection
  • Automatic restart after momentary power failure

Specifications

Series RHC-C (unit type)
Control DC ACR minor loop AVR constant control
Input power factor 0.99 or more (100 % load)
DC output (200V) DC320-355V
DC output (400V) DC640-710V
Source Fuji Electric FRENIC Series inverter catalogue (KR ed.), p. 96-97, 100
RHC7.5-2C Power supply: 3-ph 200V | MD inverter capacity: 7.5 kW | LD inverter capacity: 11 kW
RHC11-2C Power supply: 3-ph 200V | MD inverter capacity: 11 kW | LD inverter capacity: 15 kW
RHC15-2C Power supply: 3-ph 200V | MD inverter capacity: 15 kW | LD inverter capacity: 18.5 kW
RHC18.5-2C Power supply: 3-ph 200V | MD inverter capacity: 18.5 kW | LD inverter capacity: 22 kW
RHC22-2C Power supply: 3-ph 200V | MD inverter capacity: 22 kW | LD inverter capacity: 30 kW
RHC30-2C Power supply: 3-ph 200V | MD inverter capacity: 30 kW | LD inverter capacity: 37 kW
RHC37-2C Power supply: 3-ph 200V | MD inverter capacity: 37 kW | LD inverter capacity: 45 kW
RHC45-2C Power supply: 3-ph 200V | MD inverter capacity: 45 kW | LD inverter capacity: 55 kW
RHC55-2C Power supply: 3-ph 200V | MD inverter capacity: 55 kW | LD inverter capacity: 75 kW
RHC75-2C Power supply: 3-ph 200V | MD inverter capacity: 75 kW | LD inverter capacity: 90 kW
RHC90-2C Power supply: 3-ph 200V | MD inverter capacity: 90 kW | LD inverter capacity: 110 kW
RHC7.5-4C Power supply: 3-ph 400V | MD inverter capacity: 7.5 kW | LD inverter capacity: 11 kW
RHC11-4C Power supply: 3-ph 400V | MD inverter capacity: 11 kW | LD inverter capacity: 15 kW
RHC15-4C Power supply: 3-ph 400V | MD inverter capacity: 15 kW | LD inverter capacity: 18.5 kW
RHC18.5-4C Power supply: 3-ph 400V | MD inverter capacity: 18.5 kW | LD inverter capacity: 22 kW
RHC22-4C Power supply: 3-ph 400V | MD inverter capacity: 22 kW | LD inverter capacity: 30 kW
RHC30-4C Power supply: 3-ph 400V | MD inverter capacity: 30 kW | LD inverter capacity: 37 kW
RHC37-4C Power supply: 3-ph 400V | MD inverter capacity: 37 kW | LD inverter capacity: 45 kW
RHC45-4C Power supply: 3-ph 400V | MD inverter capacity: 45 kW | LD inverter capacity: 55 kW
RHC55-4C Power supply: 3-ph 400V | MD inverter capacity: 55 kW | LD inverter capacity: 75 kW
RHC75-4C Power supply: 3-ph 400V | MD inverter capacity: 75 kW | LD inverter capacity: 90 kW
RHC90-4C Power supply: 3-ph 400V | MD inverter capacity: 90 kW | LD inverter capacity: 110 kW
RHC110-4C Power supply: 3-ph 400V | MD inverter capacity: 110 kW | LD inverter capacity: 132 kW
RHC132-4C Power supply: 3-ph 400V | MD inverter capacity: 132 kW | LD inverter capacity: 160 kW
RHC160-4C Power supply: 3-ph 400V | MD inverter capacity: 160 kW | LD inverter capacity: 200 kW
RHC200-4C Power supply: 3-ph 400V | MD inverter capacity: 200 kW | LD inverter capacity: 220 kW
RHC220-4C Power supply: 3-ph 400V | MD inverter capacity: 220 kW | LD inverter capacity: 280 kW
RHC280-4C Power supply: 3-ph 400V | MD inverter capacity: 280 kW | LD inverter capacity: 315 kW
RHC315-4C Power supply: 3-ph 400V | MD inverter capacity: 315 kW | LD inverter capacity: 355 kW
RHC355-4C Power supply: 3-ph 400V | MD inverter capacity: 355 kW | LD inverter capacity: 400 kW
RHC400-4C Power supply: 3-ph 400V | MD inverter capacity: 400 kW | LD inverter capacity: 500 kW
RHC500-4C Power supply: 3-ph 400V | MD inverter capacity: 500 kW | LD inverter capacity: -
RHC630-4C Power supply: 3-ph 400V | MD inverter capacity: 630 kW | LD inverter capacity: -
