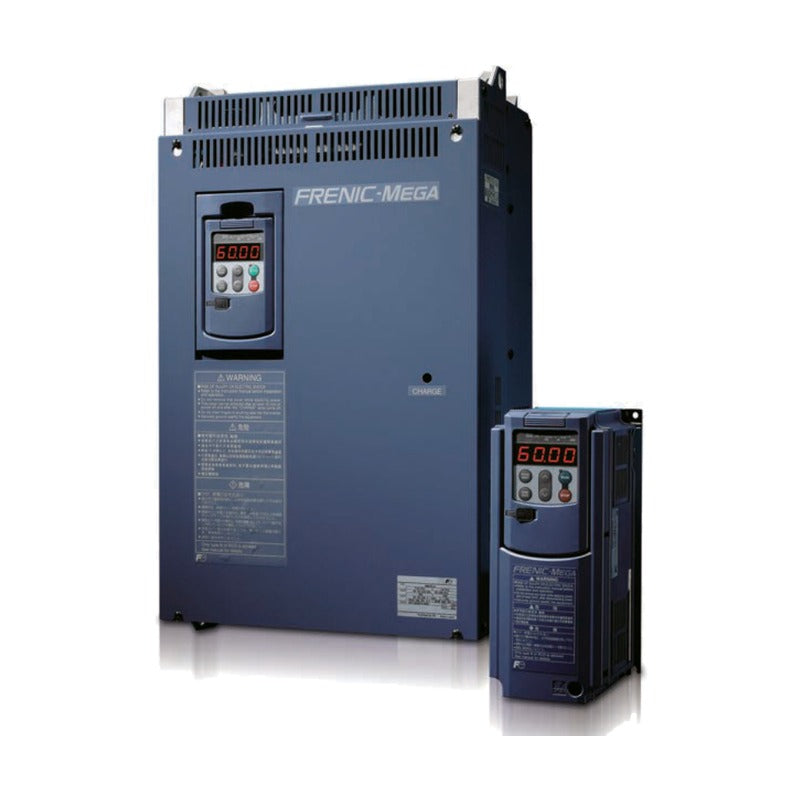

Fuji Electric FRENIC-MEGA (G1) High-Performance Inverters (0.4-630 kW)

FRENIC-MEGA G1 high-performance multi-function inverters, 0.4 to 630 kW (HD) for 3-phase 200V and 400V, in standard, EMC-filter built-in and DC-reactor built-in types.

Key features

Vector control with speed sensor, sensorless vector, dynamic torque vector and V/f
Improved current and speed response
HD rating 150 % 1 min / 200 % 3 s; LD rating 120 % 1 min
Up to three option cards; USB keypad TP-E1U standard
EMC filter built-in (E) and DC reactor built-in (H) types
IP40 kit and multi-function keypad options

Specifications

Series	FRENIC-MEGA (G1)
HD overload	150 % 1 min, 200 % 3 s
LD overload	120 % 1 min
Standard keypad	TP-E1U (USB)
Code key	S = basic, E = EMC filter, H = DC reactor; J = Japanese
DCR note	FRN55G1 and above: DCR supplied as standard in LD spec
Source	Fuji Electric FRENIC Series inverter catalogue (KR ed.), p. 47-48, 56-57

FRN0.4G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 0.4 kW \| LD motor: -
FRN0.75G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 0.75 kW \| LD motor: -
FRN1.5G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 1.5 kW \| LD motor: -
FRN2.2G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 2.2 kW \| LD motor: -
FRN3.7G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 3.7 kW \| LD motor: -
FRN5.5G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
FRN7.5G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 7.5 kW \| LD motor: 11 kW
FRN11G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 11 kW \| LD motor: 15 kW
FRN15G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 15 kW \| LD motor: 18.5 kW
FRN18.5G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 18.5 kW \| LD motor: 22 kW
FRN22G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 22 kW \| LD motor: 30 kW
FRN30G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 30 kW \| LD motor: 37 kW
FRN37G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 37 kW \| LD motor: 45 kW
FRN45G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 45 kW \| LD motor: 55 kW
FRN55G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 55 kW \| LD motor: 75 kW
FRN75G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 75 kW \| LD motor: 90 kW
FRN90G1S-2J		Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 90 kW \| LD motor: 110 kW
FRN0.4G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 0.4 kW \| LD motor: -
FRN0.75G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 0.75 kW \| LD motor: -
FRN1.5G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 1.5 kW \| LD motor: -
FRN2.2G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 2.2 kW \| LD motor: -
FRN3.7G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 3.7 kW \| LD motor: -
FRN5.5G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
FRN7.5G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 7.5 kW \| LD motor: 11 kW
FRN11G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 11 kW \| LD motor: 15 kW
FRN15G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 15 kW \| LD motor: 18.5 kW
FRN18.5G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 18.5 kW \| LD motor: 22 kW
FRN22G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 22 kW \| LD motor: 30 kW
FRN30G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 30 kW \| LD motor: 37 kW
FRN37G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 37 kW \| LD motor: 45 kW
FRN45G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 45 kW \| LD motor: 55 kW
FRN55G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 55 kW \| LD motor: 75 kW
FRN75G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 75 kW \| LD motor: 90 kW
FRN90G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 90 kW \| LD motor: 110 kW
FRN110G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 110 kW \| LD motor: 132 kW
FRN132G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 132 kW \| LD motor: 160 kW
FRN160G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 160 kW \| LD motor: 200 kW
FRN200G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 200 kW \| LD motor: 220 kW
FRN220G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 220 kW \| LD motor: 280 kW
FRN280G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 280 kW \| LD motor: 355 kW
FRN315G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 315 kW \| LD motor: 400 kW
FRN355G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 355 kW \| LD motor: 450 kW
FRN400G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 400 kW \| LD motor: 500 kW
FRN500G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 500 kW \| LD motor: 630 kW
FRN630G1S-4J		Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 630 kW \| LD motor: 710 kW
FRN0.4G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 0.4 kW \| LD motor: -
FRN0.75G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 0.75 kW \| LD motor: -
FRN1.5G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 1.5 kW \| LD motor: -
FRN2.2G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 2.2 kW \| LD motor: -
FRN3.7G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 3.7 kW \| LD motor: -
FRN5.5G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
FRN7.5G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 7.5 kW \| LD motor: 11 kW
FRN11G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 11 kW \| LD motor: 15 kW
FRN15G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 15 kW \| LD motor: 18.5 kW
FRN18.5G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 18.5 kW \| LD motor: 22 kW
FRN22G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 22 kW \| LD motor: 30 kW
FRN30G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 30 kW \| LD motor: 37 kW
FRN37G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 37 kW \| LD motor: 45 kW
FRN45G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 45 kW \| LD motor: 55 kW
FRN55G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 55 kW \| LD motor: 75 kW
FRN75G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 75 kW \| LD motor: 90 kW
FRN90G1E-2J		Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 90 kW \| LD motor: 110 kW
FRN0.4G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 0.4 kW \| LD motor: -
FRN0.75G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 0.75 kW \| LD motor: -
FRN1.5G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 1.5 kW \| LD motor: -
FRN2.2G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 2.2 kW \| LD motor: -
FRN3.7G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 3.7 kW \| LD motor: -
FRN5.5G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
FRN7.5G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 7.5 kW \| LD motor: 11 kW
FRN11G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 11 kW \| LD motor: 15 kW
FRN15G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 15 kW \| LD motor: 18.5 kW
FRN18.5G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 18.5 kW \| LD motor: 22 kW
FRN22G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 22 kW \| LD motor: 30 kW
FRN30G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 30 kW \| LD motor: 37 kW
FRN37G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 37 kW \| LD motor: 45 kW
FRN45G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 45 kW \| LD motor: 55 kW
FRN55G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 55 kW \| LD motor: 75 kW
FRN75G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 75 kW \| LD motor: 90 kW
FRN90G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 90 kW \| LD motor: 110 kW
FRN110G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 110 kW \| LD motor: 132 kW
FRN132G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 132 kW \| LD motor: 160 kW
FRN160G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 160 kW \| LD motor: 200 kW
FRN200G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 200 kW \| LD motor: 220 kW
FRN220G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 220 kW \| LD motor: 280 kW
FRN280G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 280 kW \| LD motor: 355 kW
FRN315G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 315 kW \| LD motor: 400 kW
FRN355G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 355 kW \| LD motor: 450 kW
FRN400G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 400 kW \| LD motor: 500 kW
FRN500G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 500 kW \| LD motor: 630 kW
FRN630G1E-4J		Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 630 kW \| LD motor: 710 kW
FRN5.5G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
FRN7.5G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 7.5 kW \| LD motor: 11 kW
FRN11G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 11 kW \| LD motor: 15 kW
FRN15G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 15 kW \| LD motor: 18.5 kW
FRN18.5G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 18.5 kW \| LD motor: 22 kW
FRN22G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 22 kW \| LD motor: 30 kW
FRN30G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 30 kW \| LD motor: 37 kW
FRN37G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 37 kW \| LD motor: 45 kW
FRN45G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 45 kW \| LD motor: 55 kW
FRN55G1H-2J		Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 55 kW \| LD motor: 75 kW
FRN5.5G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
FRN7.5G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 7.5 kW \| LD motor: 11 kW
FRN11G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 11 kW \| LD motor: 15 kW
FRN15G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 15 kW \| LD motor: 18.5 kW
FRN18.5G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 18.5 kW \| LD motor: 22 kW
FRN22G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 22 kW \| LD motor: 30 kW
FRN30G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 30 kW \| LD motor: 37 kW
FRN37G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 37 kW \| LD motor: 45 kW
FRN45G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 45 kW \| LD motor: 55 kW
FRN55G1H-4J		Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 55 kW \| LD motor: 75 kW

InvertersFuji Electric

110 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric FRENIC-MEGA (G1) High-Performance Inverters (0.4-630 kW)

Brand Fuji Electric·Inverters

Available part numbers (110)

FRN0.4G1S-2J, FRN0.75G1S-2J, FRN1.5G1S-2J, FRN2.2G1S-2J, FRN3.7G1S-2J, FRN5.5G1S-2J, FRN7.5G1S-2J, FRN11G1S-2J, FRN15G1S-2J, FRN18.5G1S-2J + 100 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	FRN0.4G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 0.4 kW \| LD motor: -
	FRN0.75G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 0.75 kW \| LD motor: -
	FRN1.5G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 1.5 kW \| LD motor: -
	FRN2.2G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 2.2 kW \| LD motor: -
	FRN3.7G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 3.7 kW \| LD motor: -
	FRN5.5G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
	FRN7.5G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 7.5 kW \| LD motor: 11 kW
	FRN11G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 11 kW \| LD motor: 15 kW
	FRN15G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 15 kW \| LD motor: 18.5 kW
	FRN18.5G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 18.5 kW \| LD motor: 22 kW
	FRN22G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 22 kW \| LD motor: 30 kW
	FRN30G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 30 kW \| LD motor: 37 kW
	FRN37G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 37 kW \| LD motor: 45 kW
	FRN45G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 45 kW \| LD motor: 55 kW
	FRN55G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 55 kW \| LD motor: 75 kW
	FRN75G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 75 kW \| LD motor: 90 kW
	FRN90G1S-2J	Type: Standard (basic) \| Power supply: 3-ph 200V \| HD motor: 90 kW \| LD motor: 110 kW
	FRN0.4G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 0.4 kW \| LD motor: -
	FRN0.75G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 0.75 kW \| LD motor: -
	FRN1.5G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 1.5 kW \| LD motor: -
	FRN2.2G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 2.2 kW \| LD motor: -
	FRN3.7G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 3.7 kW \| LD motor: -
	FRN5.5G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
	FRN7.5G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 7.5 kW \| LD motor: 11 kW
	FRN11G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 11 kW \| LD motor: 15 kW
	FRN15G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 15 kW \| LD motor: 18.5 kW
	FRN18.5G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 18.5 kW \| LD motor: 22 kW
	FRN22G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 22 kW \| LD motor: 30 kW
	FRN30G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 30 kW \| LD motor: 37 kW
	FRN37G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 37 kW \| LD motor: 45 kW
	FRN45G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 45 kW \| LD motor: 55 kW
	FRN55G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 55 kW \| LD motor: 75 kW
	FRN75G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 75 kW \| LD motor: 90 kW
	FRN90G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 90 kW \| LD motor: 110 kW
	FRN110G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 110 kW \| LD motor: 132 kW
	FRN132G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 132 kW \| LD motor: 160 kW
	FRN160G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 160 kW \| LD motor: 200 kW
	FRN200G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 200 kW \| LD motor: 220 kW
	FRN220G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 220 kW \| LD motor: 280 kW
	FRN280G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 280 kW \| LD motor: 355 kW
	FRN315G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 315 kW \| LD motor: 400 kW
	FRN355G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 355 kW \| LD motor: 450 kW
	FRN400G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 400 kW \| LD motor: 500 kW
	FRN500G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 500 kW \| LD motor: 630 kW
	FRN630G1S-4J	Type: Standard (basic) \| Power supply: 3-ph 400V \| HD motor: 630 kW \| LD motor: 710 kW
	FRN0.4G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 0.4 kW \| LD motor: -
	FRN0.75G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 0.75 kW \| LD motor: -
	FRN1.5G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 1.5 kW \| LD motor: -
	FRN2.2G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 2.2 kW \| LD motor: -
	FRN3.7G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 3.7 kW \| LD motor: -
	FRN5.5G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
	FRN7.5G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 7.5 kW \| LD motor: 11 kW
	FRN11G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 11 kW \| LD motor: 15 kW
	FRN15G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 15 kW \| LD motor: 18.5 kW
	FRN18.5G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 18.5 kW \| LD motor: 22 kW
	FRN22G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 22 kW \| LD motor: 30 kW
	FRN30G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 30 kW \| LD motor: 37 kW
	FRN37G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 37 kW \| LD motor: 45 kW
	FRN45G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 45 kW \| LD motor: 55 kW
	FRN55G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 55 kW \| LD motor: 75 kW
	FRN75G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 75 kW \| LD motor: 90 kW
	FRN90G1E-2J	Type: EMC filter built-in \| Power supply: 3-ph 200V \| HD motor: 90 kW \| LD motor: 110 kW
	FRN0.4G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 0.4 kW \| LD motor: -
	FRN0.75G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 0.75 kW \| LD motor: -
	FRN1.5G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 1.5 kW \| LD motor: -
	FRN2.2G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 2.2 kW \| LD motor: -
	FRN3.7G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 3.7 kW \| LD motor: -
	FRN5.5G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
	FRN7.5G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 7.5 kW \| LD motor: 11 kW
	FRN11G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 11 kW \| LD motor: 15 kW
	FRN15G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 15 kW \| LD motor: 18.5 kW
	FRN18.5G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 18.5 kW \| LD motor: 22 kW
	FRN22G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 22 kW \| LD motor: 30 kW
	FRN30G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 30 kW \| LD motor: 37 kW
	FRN37G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 37 kW \| LD motor: 45 kW
	FRN45G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 45 kW \| LD motor: 55 kW
	FRN55G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 55 kW \| LD motor: 75 kW
	FRN75G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 75 kW \| LD motor: 90 kW
	FRN90G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 90 kW \| LD motor: 110 kW
	FRN110G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 110 kW \| LD motor: 132 kW
	FRN132G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 132 kW \| LD motor: 160 kW
	FRN160G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 160 kW \| LD motor: 200 kW
	FRN200G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 200 kW \| LD motor: 220 kW
	FRN220G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 220 kW \| LD motor: 280 kW
	FRN280G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 280 kW \| LD motor: 355 kW
	FRN315G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 315 kW \| LD motor: 400 kW
	FRN355G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 355 kW \| LD motor: 450 kW
	FRN400G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 400 kW \| LD motor: 500 kW
	FRN500G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 500 kW \| LD motor: 630 kW
	FRN630G1E-4J	Type: EMC filter built-in \| Power supply: 3-ph 400V \| HD motor: 630 kW \| LD motor: 710 kW
	FRN5.5G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
	FRN7.5G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 7.5 kW \| LD motor: 11 kW
	FRN11G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 11 kW \| LD motor: 15 kW
	FRN15G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 15 kW \| LD motor: 18.5 kW
	FRN18.5G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 18.5 kW \| LD motor: 22 kW
	FRN22G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 22 kW \| LD motor: 30 kW
	FRN30G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 30 kW \| LD motor: 37 kW
	FRN37G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 37 kW \| LD motor: 45 kW
	FRN45G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 45 kW \| LD motor: 55 kW
	FRN55G1H-2J	Type: DC reactor built-in \| Power supply: 3-ph 200V \| HD motor: 55 kW \| LD motor: 75 kW
	FRN5.5G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 5.5 kW \| LD motor: 7.5 kW
	FRN7.5G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 7.5 kW \| LD motor: 11 kW
	FRN11G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 11 kW \| LD motor: 15 kW
	FRN15G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 15 kW \| LD motor: 18.5 kW
	FRN18.5G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 18.5 kW \| LD motor: 22 kW
	FRN22G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 22 kW \| LD motor: 30 kW
	FRN30G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 30 kW \| LD motor: 37 kW
	FRN37G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 37 kW \| LD motor: 45 kW
	FRN45G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 45 kW \| LD motor: 55 kW
	FRN55G1H-4J	Type: DC reactor built-in \| Power supply: 3-ph 400V \| HD motor: 55 kW \| LD motor: 75 kW

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Inverters & Drives →

Item added to your cart

Fuji Electric FRENIC-MEGA (G1) High-Performance Inverters (0.4-630 kW)
