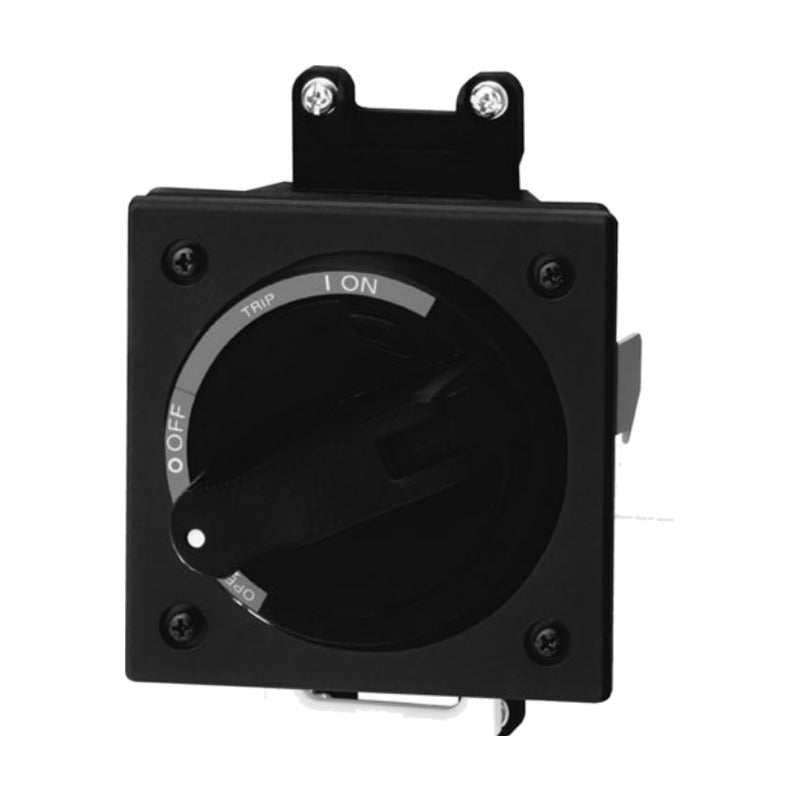

Fuji Electric G-TWIN External Operating Handles (N, V, Flange Types)

Fuji Electric G-TWIN External Operating Handles (N, V, Flange Types)

External operating handles for G-TWIN BW/EW breakers: N-type breaker-mounted handles, V-type panel-door handles with extension shafts, and cable-operated flange handles for Global types, plus related spare parts.

Key features

  • N-type and V-type handles from 32 AF to 800 AF
  • Door interlock preventing door opening with breaker ON
  • Padlockable in OFF position
  • Flange handles with 1.5, 2.0 and 3.0 m cables (125-400 AF Global)
  • Extension shafts and dust-proof packing available

Specifications

Compatible series G-TWIN BW / EW
N/V handle protection IP50 (with packing) / IP40 as catalogued
Flange handle protection IP54 (JIS C 0920, IEC 60529)
Frame range 32-800 AF
Supply Separately sold part
Source Fuji Electric G-TWIN MCCB/ELCB catalogue, p. 80-88
BZ6N10D Category: N-type handle | Type: N-type handle (breaker mount) | Fits: BW/EW32-100 (excl. 50HAG)
BW9N0CA Category: N-type handle | Type: N-type handle (breaker mount) | Fits: BW/EW50HAG, 125
BW9N0GA Category: N-type handle | Type: N-type handle (breaker mount) | Fits: BW/EW250
BW9N0HA Category: N-type handle | Type: N-type handle (breaker mount) | Fits: BW/EW400
BW9N0JA Category: N-type handle | Type: N-type handle (breaker mount) | Fits: BW/EW630, 800
BZ6V10D Category: V-type handle | Type: V-type handle (panel door) | Fits: BW/EW32-100 (excl. 50HAG)
BW9V0CA Category: V-type handle | Type: V-type handle (panel door) | Fits: BW/EW50HAG, 125
BW9V0GA Category: V-type handle | Type: V-type handle (panel door) | Fits: BW/EW250
BW9V0HA Category: V-type handle | Type: V-type handle (panel door) | Fits: BW/EW400
BW9V0JA Category: V-type handle | Type: V-type handle (panel door) | Fits: BW/EW630, 800
BW9F0CA Category: Flange handle | Type: Flange handle (cable) | Fits: BW/EW125 Global (U)
BW9F0GA Category: Flange handle | Type: Flange handle (cable) | Fits: BW/EW250 Global (U)
BW9F0HA Category: Flange handle | Type: Flange handle (cable) | Fits: BW/EW400 Global (U)
BW9FBTCA-L3 Category: Flange handle cover | Type: Flange handle terminal cover | Fits: 125AF flange handle
BW9FBTGA-L3 Category: Flange handle cover | Type: Flange handle terminal cover | Fits: 250AF flange handle
BW9FBTHA-L3 Category: Flange handle cover | Type: Flange handle terminal cover | Fits: 400AF flange handle
BW9FWCA-15A Category: Flange handle cable | Type: Cable 1.5 m | Fits: 125AF flange handle
BW9FWCA-20A Category: Flange handle cable | Type: Cable 2.0 m | Fits: 125AF flange handle
BW9FWCA-30A Category: Flange handle cable | Type: Cable 3.0 m | Fits: 125AF flange handle
BW9FWGA-15A Category: Flange handle cable | Type: Cable 1.5 m | Fits: 250AF flange handle
BW9FWGA-20A Category: Flange handle cable | Type: Cable 2.0 m | Fits: 250AF flange handle
BW9FWGA-30A Category: Flange handle cable | Type: Cable 3.0 m | Fits: 250AF flange handle
BW9FWHA-15A Category: Flange handle cable | Type: Cable 1.5 m | Fits: 400AF flange handle
BW9FWHA-20A Category: Flange handle cable | Type: Cable 2.0 m | Fits: 400AF flange handle
BW9FWHA-30A Category: Flange handle cable | Type: Cable 3.0 m | Fits: 400AF flange handle
BW9VSG0 Category: Extension shaft | Type: Extension shaft (V handle) | Fits: BW9V0CA, BW9V0GA
BZ6VS1D Category: Extension shaft | Type: Extension shaft (V handle) | Fits: BZ6V10D
BZ-VS2 Category: Extension shaft | Type: Extension shaft (V handle) | Fits: BW9V0HA, BW9V0JA
BZ-NP-1C Category: Dust-proof packing | Type: Dust-proof packing (N handle) | Fits: BZ6N10D, BW9N0CA/GA
BZ-NP-2 Category: Dust-proof packing | Type: Dust-proof packing (N handle) | Fits: BW9N0HA, BW9N0JA
Switch AccessoriesFuji Electric
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric G-TWIN External Operating Handles (N, V, Flange Types)

Brand Fuji Electric·Switch Accessories

Available part numbers (30)

BZ6N10D, BW9N0CA, BW9N0GA, BW9N0HA, BW9N0JA, BZ6V10D, BW9V0CA, BW9V0GA, BW9V0HA, BW9V0JA + 20 more — see full table ↓
