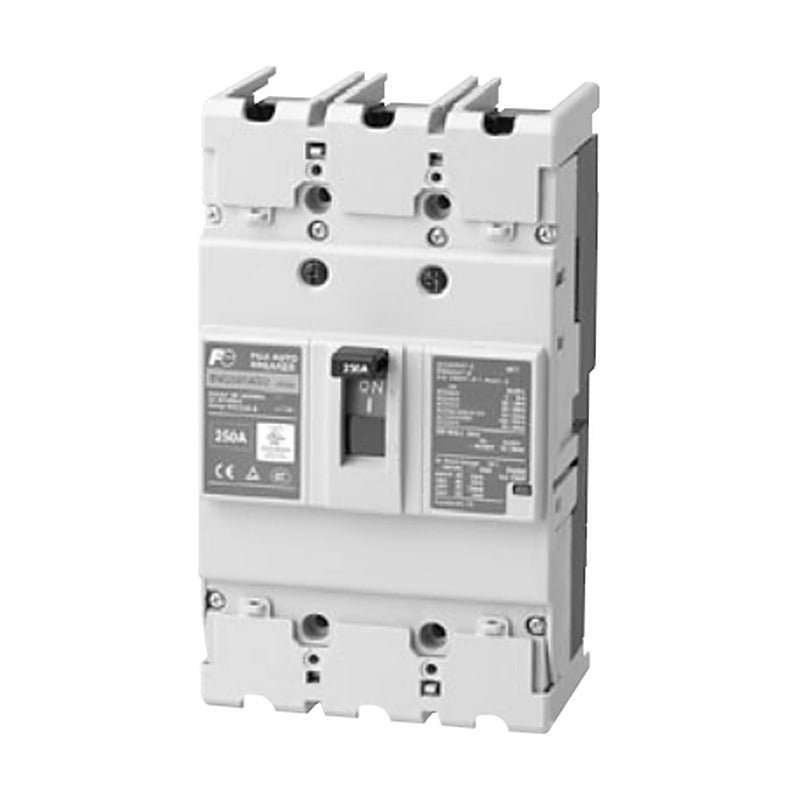

Fuji Electric G-TWIN Handle Locks and Mechanical Interlocks

Fuji Electric G-TWIN Handle Locks and Mechanical Interlocks

Handle key-lock devices, handle lock covers and M1/M2/M3 mechanical interlocks for G-TWIN BW/EW breakers.

Key features

  • Cap, plate and scissors-type handle key locks
  • One-touch handle lock covers (ON/OFF lockable)
  • M1 surface, M2 flush and M3 panel-mounted mechanical interlocks
  • Interlock two breakers to prevent simultaneous ON
  • Sizes for 32 AF to 800 AF

Specifications

Compatible series G-TWIN BW / EW
Padlock Commercial padlock, shackle size per catalogue
Frame range 32-800 AF
Supply Separately sold part
Interlock types M1 surface, M2 flush, M3 panel
Source Fuji Electric G-TWIN MCCB/ELCB catalogue, p. 96-101
BZ6L10CA Category: Handle key lock | Type: Handle key lock (cap, OFF) | Fits: BW/EW32-100
BW9Q1CA Category: Handle key lock | Type: Handle key lock (cap) | Fits: BW/EW50HAG-250
BW9QNHA Category: Handle key lock | Type: Handle key lock (scissors) | Fits: BW/EW400-800
BW9Q2CA Category: Handle key lock | Type: Handle key lock (plate) | Fits: BW/EW50HAG, 125
BW9Q2GA Category: Handle key lock | Type: Handle key lock (plate) | Fits: BW/EW250
BW9Q2HA Category: Handle key lock | Type: Handle key lock (plate) | Fits: BW/EW400
BW9Q2JA Category: Handle key lock | Type: Handle key lock (plate) | Fits: BW/EW630, 800
BZ6L10C Category: Handle lock cover | Type: Handle lock cover | Fits: BW/EW32-100
BW9L1CA Category: Handle lock cover | Type: Handle lock cover | Fits: BW/EW50HAG-250
BW9L1HA Category: Handle lock cover | Type: Handle lock cover | Fits: BW/EW400-800
BZ6M110C2 Category: Mechanical interlock | Type: M1 (surface mount), -2 variant | Fits: BW/EW32-100
BZ6M110C3 Category: Mechanical interlock | Type: M1 (surface mount), -3 variant | Fits: BW/EW32-100
BW9M1CA-2 Category: Mechanical interlock | Type: M1 (surface mount), -2 variant | Fits: 125AF, 50HAG
BW9M1CA-3 Category: Mechanical interlock | Type: M1 (surface mount), -3 variant | Fits: 125AF, 50HAG
BW9M1CA-4 Category: Mechanical interlock | Type: M1 (surface mount), -4 variant | Fits: 125AF, 50HAG
BW9M1GA-3 Category: Mechanical interlock | Type: M1 (surface mount), -3 variant | Fits: 250AF
BW9M1GA-4 Category: Mechanical interlock | Type: M1 (surface mount), -4 variant | Fits: 250AF
BW9M1HA-3 Category: Mechanical interlock | Type: M1 (surface mount), -3 variant | Fits: 400AF
BW9M1HA-4 Category: Mechanical interlock | Type: M1 (surface mount), -4 variant | Fits: 400AF
BW9M1JA-3 Category: Mechanical interlock | Type: M1 (surface mount), -3 variant | Fits: 630-800AF
BZ6M210C2 Category: Mechanical interlock | Type: M2 (flush mount), -2 variant | Fits: BW/EW32-100
BZ6M210C3 Category: Mechanical interlock | Type: M2 (flush mount), -3 variant | Fits: BW/EW32-100
BW9M2CA-2 Category: Mechanical interlock | Type: M2 (flush mount), -2 variant | Fits: 125-250AF, 50HAG
BW9M2CA-3 Category: Mechanical interlock | Type: M2 (flush mount), -3 variant | Fits: 125-250AF, 50HAG
BW9M2CA-4 Category: Mechanical interlock | Type: M2 (flush mount), -4 variant | Fits: 125-250AF, 50HAG
BW9M2HA-3 Category: Mechanical interlock | Type: M2 (flush mount), -3 variant | Fits: 400AF
BW9M2HA-4 Category: Mechanical interlock | Type: M2 (flush mount), -4 variant | Fits: 400AF
BW9M2JA-3 Category: Mechanical interlock | Type: M2 (flush mount), -3 variant | Fits: 630-800AF
BZ6M310C2 Category: Mechanical interlock | Type: M3 (panel mount), -2 variant | Fits: BW/EW32-100
BZ6M310C3 Category: Mechanical interlock | Type: M3 (panel mount), -3 variant | Fits: BW/EW32-100
BW9M3CA-2 Category: Mechanical interlock | Type: M3 (panel mount), -2 variant | Fits: 125AF, 50HAG
BW9M3CA-3 Category: Mechanical interlock | Type: M3 (panel mount), -3 variant | Fits: 125AF, 50HAG
BW9M3CA-4 Category: Mechanical interlock | Type: M3 (panel mount), -4 variant | Fits: 125AF, 50HAG
BW9M3GA-3 Category: Mechanical interlock | Type: M3 (panel mount), -3 variant | Fits: 250AF
BW9M3GA-4 Category: Mechanical interlock | Type: M3 (panel mount), -4 variant | Fits: 250AF
BW9M3HA-3 Category: Mechanical interlock | Type: M3 (panel mount), -3 variant | Fits: 400AF
BW9M3JA-3 Category: Mechanical interlock | Type: M3 (panel mount), -3 variant | Fits: 630-800AF
Switch AccessoriesFuji Electric
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
