Fuji Electric G-TWIN Internal Accessories (Aux/Alarm Switches, Trips)

Fuji Electric G-TWIN Internal Accessories (Aux/Alarm Switches, Trips)

Separately sold one-touch internal accessories for G-TWIN BW/EW breakers: auxiliary and alarm switches (standard and low-level), shunt trips, undervoltage trips and leakage trip output switches.

Key features

  • One-touch fitting into the breaker accessory compartments
  • Standard and low-level (micro-load) contact versions
  • Lead-wire or terminal-block connection (32-100 AF)
  • Shunt and undervoltage trips in multiple voltage ratings
  • Covers 32 AF to 800 AF frames

Specifications

Compatible series G-TWIN BW (MCCB) / EW (ELCB)
Supply Separately sold part
32-100AF shunt trip MCCB only, right-side mounting
400-800AF note Terminal-block type is factory fitted
Frame range 32-800 AF
Source Fuji Electric G-TWIN MCCB/ELCB catalogue, p. 66-77
BZ6WL10C Frame: 32-100 AF | Function: Aux switch (std) | Connection: Lead wire, left | Rating: -
BZ6WR10C Frame: 32-100 AF | Function: Aux switch (std) | Connection: Lead wire, right | Rating: -
BZ6WL10CA Frame: 32-100 AF | Function: Aux switch (std) | Connection: Terminal block, left | Rating: -
BZ6WR10CA Frame: 32-100 AF | Function: Aux switch (std) | Connection: Terminal block, right | Rating: -
BZ6WDL10C Frame: 32-100 AF | Function: Aux switch (low-level) | Connection: Lead wire, left | Rating: -
BZ6WDR10C Frame: 32-100 AF | Function: Aux switch (low-level) | Connection: Lead wire, right | Rating: -
BZ6WDL10CA Frame: 32-100 AF | Function: Aux switch (low-level) | Connection: Terminal block, left | Rating: -
BZ6WDR10CA Frame: 32-100 AF | Function: Aux switch (low-level) | Connection: Terminal block, right | Rating: -
BZ6KL10C Frame: 32-100 AF | Function: Alarm switch (std) | Connection: Lead wire, left | Rating: -
BZ6KR10C Frame: 32-100 AF | Function: Alarm switch (std) | Connection: Lead wire, right | Rating: -
BZ6KL10CA Frame: 32-100 AF | Function: Alarm switch (std) | Connection: Terminal block, left | Rating: -
BZ6KR10CA Frame: 32-100 AF | Function: Alarm switch (std) | Connection: Terminal block, right | Rating: -
BZ6KDL10C Frame: 32-100 AF | Function: Alarm switch (low-level) | Connection: Lead wire, left | Rating: -
BZ6KDR10C Frame: 32-100 AF | Function: Alarm switch (low-level) | Connection: Lead wire, right | Rating: -
BZ6KDL10CA Frame: 32-100 AF | Function: Alarm switch (low-level) | Connection: Terminal block, left | Rating: -
BZ6KDR10CA Frame: 32-100 AF | Function: Alarm switch (low-level) | Connection: Terminal block, right | Rating: -
BZ6WKL10C Frame: 32-100 AF | Function: Aux + alarm switch (std) | Connection: Lead wire, left | Rating: -
BZ6WKR10C Frame: 32-100 AF | Function: Aux + alarm switch (std) | Connection: Lead wire, right | Rating: -
BZ6WKL10CA Frame: 32-100 AF | Function: Aux + alarm switch (std) | Connection: Terminal block, left | Rating: -
BZ6WKR10CA Frame: 32-100 AF | Function: Aux + alarm switch (std) | Connection: Terminal block, right | Rating: -
BZ6WDKDL10C Frame: 32-100 AF | Function: Aux + alarm (low-level) | Connection: Lead wire, left | Rating: -
BZ6WDKDR10C Frame: 32-100 AF | Function: Aux + alarm (low-level) | Connection: Lead wire, right | Rating: -
BZ6WDKDL10CA Frame: 32-100 AF | Function: Aux + alarm (low-level) | Connection: Terminal block, left | Rating: -
BZ6FA10C Frame: 32-100 AF | Function: Shunt trip (MCCB) | Connection: Lead wire, right | Rating: AC100-120V/DC100-110V
BZ6FA10CA Frame: 32-100 AF | Function: Shunt trip (MCCB) | Connection: Terminal block, right | Rating: AC100-120V/DC100-110V
BZ6FK10C Frame: 32-100 AF | Function: Shunt trip (MCCB) | Connection: Lead wire, right | Rating: AC200-240V
BZ6FK10CA Frame: 32-100 AF | Function: Shunt trip (MCCB) | Connection: Terminal block, right | Rating: AC200-240V
BZ6FP10C Frame: 32-100 AF | Function: Shunt trip (MCCB) | Connection: Lead wire, right | Rating: AC380-450V
BZ6FP10CA Frame: 32-100 AF | Function: Shunt trip (MCCB) | Connection: Terminal block, right | Rating: AC380-450V
BZ6FR10C Frame: 32-100 AF | Function: Shunt trip (MCCB) | Connection: Lead wire, right | Rating: AC/DC24V
BZ6FR10CA Frame: 32-100 AF | Function: Shunt trip (MCCB) | Connection: Terminal block, right | Rating: AC/DC24V
BW9W1SG0 Frame: 125-250 AF, 50HAG | Function: Aux switch (std) | Connection: Lead wire, left | Rating: -
BW9W1SG0-R Frame: 125-250 AF, 50HAG | Function: Aux switch (std) | Connection: Lead wire, right | Rating: -
BW9W1DG0 Frame: 125-250 AF, 50HAG | Function: Aux switch (low-level) | Connection: Lead wire, left | Rating: -
BW9W1DG0-R Frame: 125-250 AF, 50HAG | Function: Aux switch (low-level) | Connection: Lead wire, right | Rating: -
BW9K1SG0 Frame: 125-250 AF, 50HAG | Function: Alarm switch (std) | Connection: Lead wire, left | Rating: -
BW9K1SG0-R Frame: 125-250 AF, 50HAG | Function: Alarm switch (std) | Connection: Lead wire, right | Rating: -
BW9K1DG0 Frame: 125-250 AF, 50HAG | Function: Alarm switch (low-level) | Connection: Lead wire, left | Rating: -
BW9K1DG0-R Frame: 125-250 AF, 50HAG | Function: Alarm switch (low-level) | Connection: Lead wire, right | Rating: -

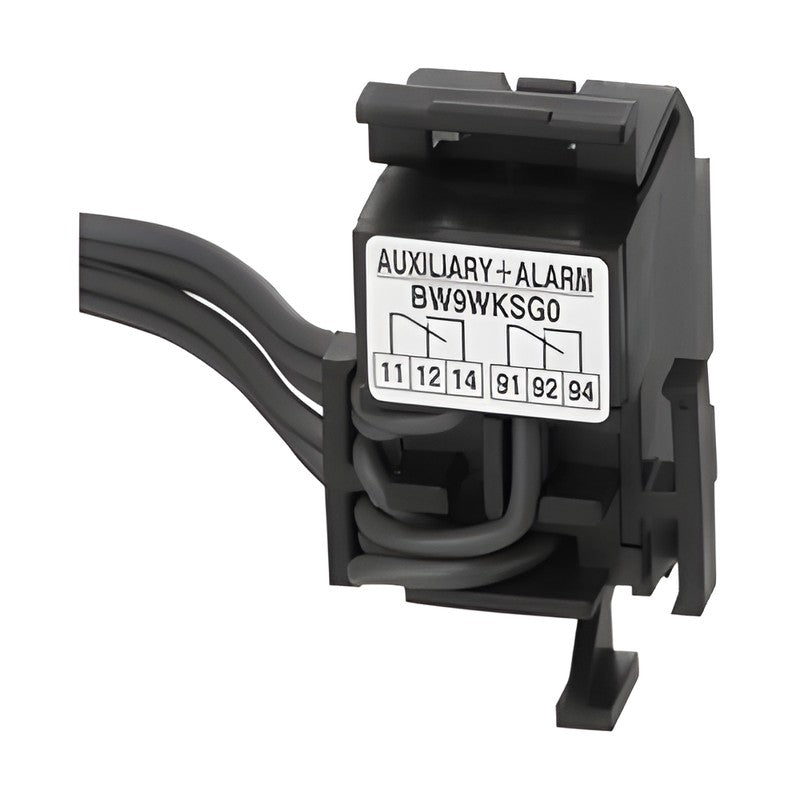

BW9WKSG0 Frame: 125-250 AF, 50HAG | Function: Aux + alarm switch (std) | Connection: Lead wire, left | Rating: -
BW9WKSG0-R Frame: 125-250 AF, 50HAG | Function: Aux + alarm switch (std) | Connection: Lead wire, right | Rating: -
BW9WKDG0 Frame: 125-250 AF, 50HAG | Function: Aux + alarm (low-level) | Connection: Lead wire, left | Rating: -
BW9WKDG0-R Frame: 125-250 AF, 50HAG | Function: Aux + alarm (low-level) | Connection: Lead wire, right | Rating: -
BW9L1SGA Frame: 125-250 AF, 50HAG | Function: Leakage trip output switch (ELCB) | Connection: Lead wire, right | Rating: -
BW9FRG0 Frame: 125-250 AF, 50HAG | Function: Shunt trip | Connection: Lead wire | Rating: AC/DC24V
BW9FSG0 Frame: 125-250 AF, 50HAG | Function: Shunt trip | Connection: Lead wire | Rating: AC/DC48V
BW9FAG0 Frame: 125-250 AF, 50HAG | Function: Shunt trip | Connection: Lead wire | Rating: AC100-120V/DC100-110V
BW9F1G0 Frame: 125-250 AF, 50HAG | Function: Shunt trip | Connection: Lead wire | Rating: AC120-130V
BW9FKG0 Frame: 125-250 AF, 50HAG | Function: Shunt trip | Connection: Lead wire | Rating: AC200-240V/DC200-220V
BW9FBG0 Frame: 125-250 AF, 50HAG | Function: Shunt trip | Connection: Lead wire | Rating: AC277V
BW9FPG0 Frame: 125-250 AF, 50HAG | Function: Shunt trip | Connection: Lead wire | Rating: AC380-440V
BW9FHG0 Frame: 125-250 AF, 50HAG | Function: Shunt trip | Connection: Lead wire | Rating: AC440-480V
BW9FJG0 Frame: 125-250 AF, 50HAG | Function: Shunt trip | Connection: Lead wire | Rating: AC500-550V
BW9RGAR Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: DC24V
BW9RGAS Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: DC48V
BW9RGAL Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: DC100-110V
BW9RGA5 Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: DC125V
BW9RGAA Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: AC100-110V
BW9RGAT Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: AC110-130V
BW9RGAK Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: AC200-240V
BW9RGAB Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: AC277V
BW9RGAP Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: AC380-415V
BW9RGAH Frame: 125-250 AF, 50HAG | Function: Undervoltage trip | Connection: Lead wire, left | Rating: AC440-480V
BW9W1SHA Frame: 400-800 AF | Function: Aux switch (std) x1 | Connection: Lead wire | Rating: -
BW9W2SHA Frame: 400-800 AF | Function: Aux switch (std) x2 | Connection: Lead wire | Rating: -
BW9W1DHA Frame: 400-800 AF | Function: Aux switch (low-level) x1 | Connection: Lead wire | Rating: -
BW9W2DHA Frame: 400-800 AF | Function: Aux switch (low-level) x2 | Connection: Lead wire | Rating: -
BW9K1SHA Frame: 400-800 AF | Function: Alarm switch (std) x1 | Connection: Lead wire | Rating: -
BW9K2SHA Frame: 400-800 AF | Function: Alarm switch (std) x2 | Connection: Lead wire | Rating: -
BW9K1DHA Frame: 400-800 AF | Function: Alarm switch (low-level) x1 | Connection: Lead wire | Rating: -
BW9K2DHA Frame: 400-800 AF | Function: Alarm switch (low-level) x2 | Connection: Lead wire | Rating: -
BW9FHA-R Frame: 400-800 AF | Function: Shunt trip | Connection: Lead wire | Rating: AC/DC24-48V
BW9FHA-A Frame: 400-800 AF | Function: Shunt trip | Connection: Lead wire | Rating: AC100-240V/DC100-220V
BW9FHA-B Frame: 400-800 AF | Function: Shunt trip | Connection: Lead wire | Rating: AC277V
BW9FHA-P Frame: 400-800 AF | Function: Shunt trip | Connection: Lead wire | Rating: AC380-550V
BW9RHA-R Frame: 400-800 AF | Function: Undervoltage trip | Connection: Lead wire | Rating: AC/DC24V
BW9RHA-S Frame: 400-800 AF | Function: Undervoltage trip | Connection: Lead wire | Rating: AC/DC48V
BW9RHA-A Frame: 400-800 AF | Function: Undervoltage trip | Connection: Lead wire | Rating: AC/DC100-110V
BW9RHA-1 Frame: 400-800 AF | Function: Undervoltage trip | Connection: Lead wire | Rating: AC120-130V/DC125V
BW9RHA-K Frame: 400-800 AF | Function: Undervoltage trip | Connection: Lead wire | Rating: AC200-240V/DC200-220V
BW9RHA-B Frame: 400-800 AF | Function: Undervoltage trip | Connection: Lead wire | Rating: AC277V
BW9RHA-P Frame: 400-800 AF | Function: Undervoltage trip | Connection: Lead wire | Rating: AC380-480V
Switch AccessoriesFuji Electric
82 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric G-TWIN Internal Accessories (Aux/Alarm Switches, Trips)

Brand Fuji Electric·Switch Accessories

Available part numbers (82)

BZ6WL10C, BZ6WR10C, BZ6WL10CA, BZ6WR10CA, BZ6WDL10C, BZ6WDR10C, BZ6WDL10CA, BZ6WDR10CA, BZ6KL10C, BZ6KR10C + 72 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
