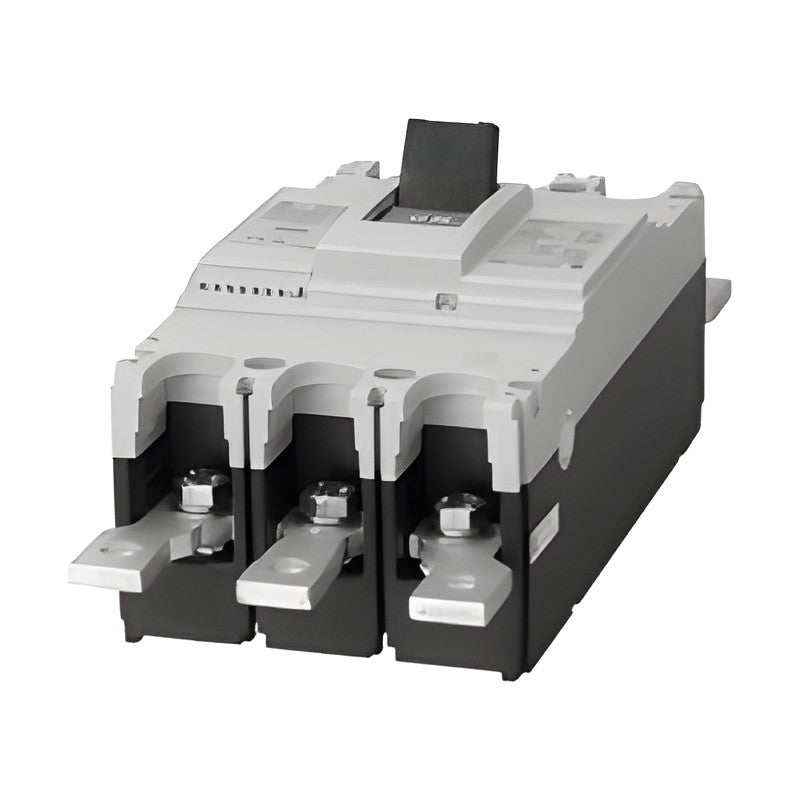

Fuji Electric G-TWIN Flat Terminals and Mounting Adapters (32-400AF)

Fuji Electric G-TWIN Flat Terminals and Mounting Adapters (32-400AF)

Separately sold connection and mounting parts that convert front-connected G-TWIN BW/EW breakers to flat-bar terminals, rear connection, flush (stud or terminal) or plug-in mounting.

Key features

  • Flat terminals for front connection with lugs or bus bar
  • Rear-connection stud adapters
  • Flush-mounting E-type (stud) and Y-type (terminal) adapters
  • Plug-in adapters for 32-100 AF
  • Field conversion by the customer

Specifications

Compatible series G-TWIN BW / EW
Supply Separately sold part
Stud orientation Specify after code when required
Frame range 32-400 AF
Conversion Customer-convertible from front type
Source Fuji Electric G-TWIN MCCB/ELCB catalogue, p. 51, 56-59
BZ6S10C502 Type: Flat terminal (front) | Poles: 2P | Fits: BW32/50, EW32/50AAG
BZ6S10C503 Type: Flat terminal (front) | Poles: 3P | Fits: BW32/50, EW32/50
BZ6S10C1002 Type: Flat terminal (front) | Poles: 2P | Fits: BW63/100
BZ6S10C1003 Type: Flat terminal (front) | Poles: 3P | Fits: BW63/100, EW63/100
BW9SS0CA-2 Type: Flat terminal (front) | Poles: 2P | Fits: BW125, BW50HAG
BW9SS0CA-3 Type: Flat terminal (front) | Poles: 3P | Fits: BW/EW125, 50HAG
BW9SS0CA-4 Type: Flat terminal (front) | Poles: 4P | Fits: BW/EW125
BZ-S50B-2252 Type: Flat terminal (front) | Poles: 2P | Fits: BW250
BZ-S50B-2253 Type: Flat terminal (front) | Poles: 3P | Fits: BW/EW250
BW9SS0GA-4 Type: Flat terminal (front) | Poles: 4P | Fits: BW/EW250
BZ6X10C502 Type: Rear connection adapter | Poles: 2P | Fits: BW32/50/100(50A), EW32/50AAG
BZ6X10C503 Type: Rear connection adapter | Poles: 3P | Fits: BW/EW32/50/100(50A)
BZ6X10C1002 Type: Rear connection adapter | Poles: 2P | Fits: BW63/100
BZ6X10C1003 Type: Rear connection adapter | Poles: 3P | Fits: BW/EW63/100
BW9X0CA-2 Type: Rear connection adapter | Poles: 2P | Fits: BW125JAG
BW9X1CA-2 Type: Rear connection adapter | Poles: 2P | Fits: BW50HAG, BW125RAG/HAG
BW9X0CA-3 Type: Rear connection adapter | Poles: 3P | Fits: BW/EW50HAG, BW/EW125
BW9X0GA-2 Type: Rear connection adapter | Poles: 2P | Fits: BW250
BW9X0GA-3 Type: Rear connection adapter | Poles: 3P | Fits: BW/EW250
BZ-X60B-4002 Type: Rear connection adapter | Poles: 2P | Fits: BW400
BZ-X60B-4003 Type: Rear connection adapter | Poles: 3P | Fits: BW/EW400
BZ6E10C502 Type: Flush (E-type, stud) adapter | Poles: 2P | Fits: BW/EW32/50, BW100(50A)
BZ6E10C503 Type: Flush (E-type, stud) adapter | Poles: 3P | Fits: BW/EW32/50/100(50A)
BZ6E10C1002 Type: Flush (E-type, stud) adapter | Poles: 2P | Fits: BW63/100
BZ6E10C1003 Type: Flush (E-type, stud) adapter | Poles: 3P | Fits: BW/EW63/100
BW9E0CA-2 Type: Flush (E-type, stud) adapter | Poles: 2P | Fits: BW125
BW9E0CA-3 Type: Flush (E-type, stud) adapter | Poles: 3P | Fits: BW/EW50HAG, BW/EW125
BW9E0GA-2 Type: Flush (E-type, stud) adapter | Poles: 2P | Fits: BW250
BW9E0GA-3 Type: Flush (E-type, stud) adapter | Poles: 3P | Fits: BW/EW250
BZ-E60B-4002 Type: Flush (E-type, stud) adapter | Poles: 2P | Fits: BW400
BZ-E60B-4003 Type: Flush (E-type, stud) adapter | Poles: 3P | Fits: BW/EW400
BZ6Y10C502 Type: Flush (Y-type, terminal) adapter | Poles: 2P | Fits: BW/EW32/50, BW100(50A)
BZ6Y10C503 Type: Flush (Y-type, terminal) adapter | Poles: 3P | Fits: BW/EW32/50/100(50A)
BZ6Y10C1002 Type: Flush (Y-type, terminal) adapter | Poles: 2P | Fits: BW63/100
BZ6Y10C1003 Type: Flush (Y-type, terminal) adapter | Poles: 3P | Fits: BW/EW63/100
BZ6P10C502 Type: Plug-in adapter | Poles: 2P | Fits: 32-100AF (50A and below)
BZ6P10C503 Type: Plug-in adapter | Poles: 3P | Fits: 32-100AF (50A and below)
BZ6P10C1002 Type: Plug-in adapter | Poles: 2P | Fits: 63/100AF
BZ6P10C1003 Type: Plug-in adapter | Poles: 3P | Fits: 63/100AF
