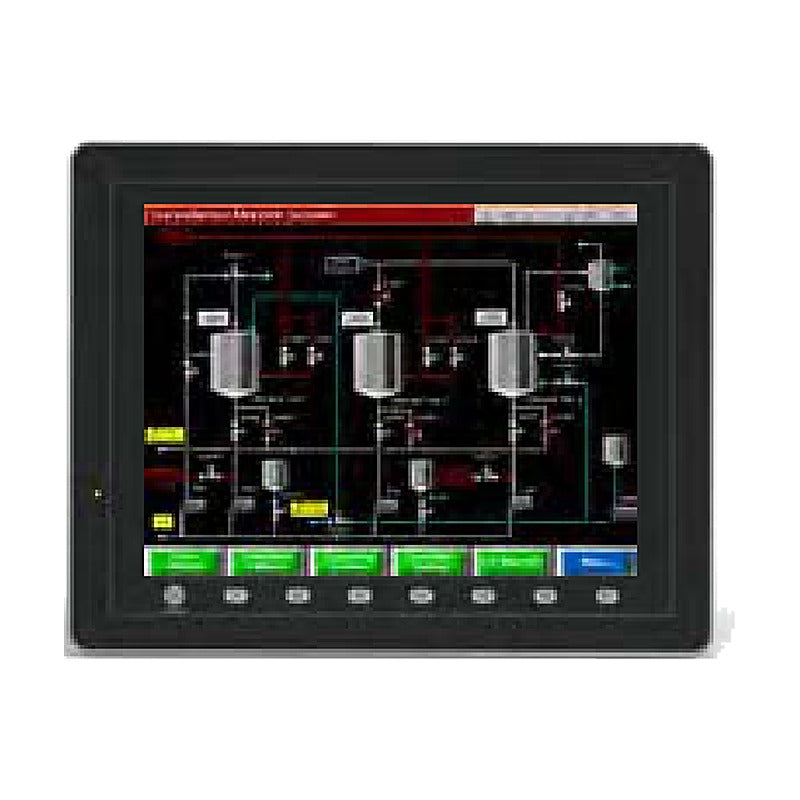

Fuji Electric MONITOUCH V815 / V812 HMI Touch Panels (15 / 12.1 in)

Fuji Electric MONITOUCH V815 / V812 HMI Touch Panels (15 / 12.1 in)

High-performance MONITOUCH V8 programmable displays: the 12.1-inch SVGA V812 series and the 15-inch XGA V815iXN. 'i' models have a built-in Ethernet port and option-unit slot.

Key features

  • 65,536-colour TFT display (32,768 colours with blink)
  • 12.5 MB FROM screen memory, 512 KB SRAM backup
  • D-sub9 (CN1) and two modular 8-pin (MJ1/MJ2) serial ports
  • CF card, USB-A and USB-B interfaces
  • Option units for video / RGB input and output (GU series)
  • Communication units for OPCN-1, T-link, CC-Link, PROFIBUS-DP, DeviceNet, SX bus

Specifications

Series MONITOUCH V8
Screen memory FROM 12.5 MB
Backup memory SRAM 512 KB
Serial ports RS-232C/422/485 (CN1), RS-232C/422/485 (MJ1/MJ2)
USB Type A / Type B (Ver 1.1)
Standards CE (EN61000-6-2/6-4), UL508
Panel cutout (V812) 313 x 246.2 mm
Suffix key i = Ethernet, M = matrix touch, D = DC24V
Source Fuji Electric MONITOUCH V8 Series catalogue (KR ed.) / MONITOUCH V9 Series catalogue (KR ed., 2016), p. 4, 12, 14 (V8); 14-15 (V9 cat.)
V815iXN Screen: 15 in | Display: TFT XGA 1024x768 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
V812iS Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V812iSM Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Matrix | Power: AC100-240V | Version: Original (2008)
V812iSD Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V812iSMD Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Matrix | Power: DC24V | Version: Original (2008)
V812S Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V812SM Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Matrix | Power: AC100-240V | Version: Original (2008)
V812SD Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V812SMD Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Matrix | Power: DC24V | Version: Original (2008)
V812iSN Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
V812SN Screen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
HMI Touch PanelsFuji Electric
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MONITOUCH V815 / V812 HMI Touch Panels (15 / 12.1 in)

Brand Fuji Electric·HMI Touch Panels

Available part numbers (11)

V815iXN, V812iS, V812iSM, V812iSD, V812iSMD, V812S, V812SM, V812SD, V812SMD, V812iSN + 1 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
V815iXNScreen: 15 in | Display: TFT XGA 1024x768 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
V812iSScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V812iSMScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Matrix | Power: AC100-240V | Version: Original (2008)
V812iSDScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V812iSMDScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Matrix | Power: DC24V | Version: Original (2008)
V812SScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: Original (2008)
V812SMScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Matrix | Power: AC100-240V | Version: Original (2008)
V812SDScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: DC24V | Version: Original (2008)
V812SMDScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Matrix | Power: DC24V | Version: Original (2008)
V812iSNScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Built-in | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
V812SNScreen: 12.1 in | Display: TFT SVGA 800x600 | Ethernet: Option (CU/CUN-03-3) | Touch switch: Analog | Power: AC100-240V | Version: N model (CN5 revised)
