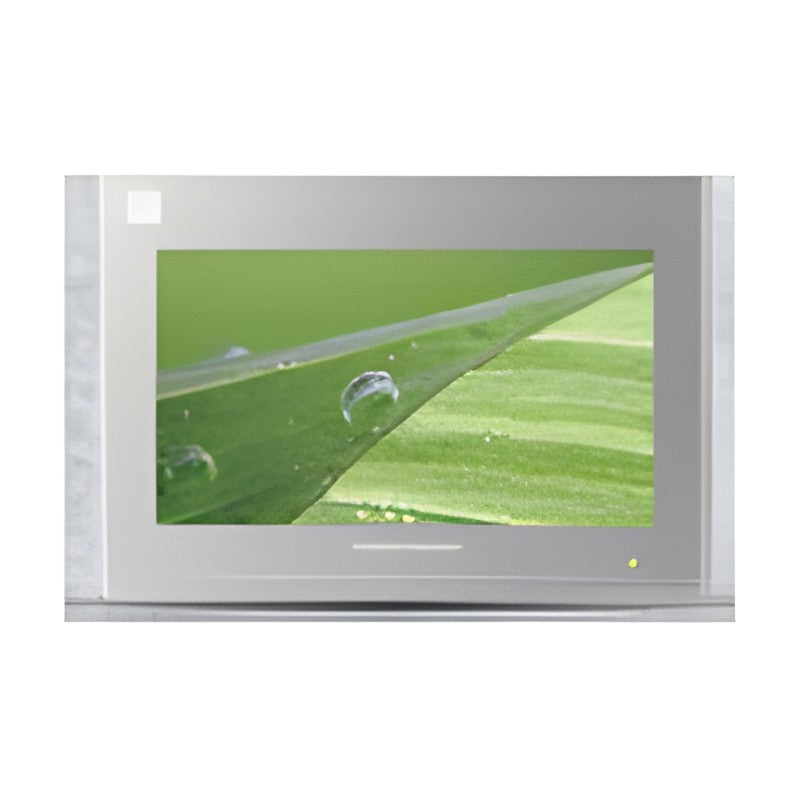

Fuji Electric MONITOUCH V9 Advanced HMI Touch Panels (10.1/7 in wide)

MONITOUCH V9 Advanced wide-screen programmable displays (10.1-inch WSVGA and 7-inch WVGA) with capacitive or analog resistive touch, extended wired LAN and optional built-in wireless LAN.

Key features

Wide TFT colour LCD, 1024 x 600 (10.1 in) or 800 x 480 (7 in)
Capacitive (multi-touch) or analog resistive touch
Built-in wireless LAN on 'R' models (external antenna V9-ANT)
Second wired LAN port (L) on all Advanced models
Video/RGB input and audio output on 10.1-inch models
Programmed with V-SFT Ver.6

Specifications

Series	MONITOUCH V9 Advanced
Display	TFT colour LCD (wide)
Power supply	DC24V
Standards	UL508, CE, KC
Software	V-SFT-6
Code key	W = wide TFT, R = wireless LAN, L = ext. LAN, D = DC24V
Ext. wired LAN	Yes
Power	DC24V
Source	Fuji Electric MONITOUCH V9 Series catalogue (KR ed., 2016), p. 3, 13

V9101iWRLD		Screen: 10.1 in wide \| Resolution: 1024x600 \| Touch switch: Capacitive \| Wireless LAN: Yes
V9100iWRLD		Screen: 10.1 in wide \| Resolution: 1024x600 \| Touch switch: Analog resistive \| Wireless LAN: Yes
V9101iWLD		Screen: 10.1 in wide \| Resolution: 1024x600 \| Touch switch: Capacitive \| Wireless LAN: No
V9100iWLD		Screen: 10.1 in wide \| Resolution: 1024x600 \| Touch switch: Analog resistive \| Wireless LAN: No
V9071iWRLD		Screen: 7 in wide \| Resolution: 800x480 \| Touch switch: Capacitive \| Wireless LAN: Yes
V9070iWRLD		Screen: 7 in wide \| Resolution: 800x480 \| Touch switch: Analog resistive \| Wireless LAN: Yes
V9071iWLD		Screen: 7 in wide \| Resolution: 800x480 \| Touch switch: Capacitive \| Wireless LAN: No
V9070iWLD		Screen: 7 in wide \| Resolution: 800x480 \| Touch switch: Analog resistive \| Wireless LAN: No

HMI Touch PanelsFuji Electric

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MONITOUCH V9 Advanced HMI Touch Panels (10.1/7 in wide)

Brand Fuji Electric·HMI Touch Panels

Available part numbers (8)

V9101iWRLD, V9100iWRLD, V9101iWLD, V9100iWLD, V9071iWRLD, V9070iWRLD, V9071iWLD, V9070iWLD

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	V9101iWRLD	Screen: 10.1 in wide \| Resolution: 1024x600 \| Touch switch: Capacitive \| Wireless LAN: Yes
	V9100iWRLD	Screen: 10.1 in wide \| Resolution: 1024x600 \| Touch switch: Analog resistive \| Wireless LAN: Yes
	V9101iWLD	Screen: 10.1 in wide \| Resolution: 1024x600 \| Touch switch: Capacitive \| Wireless LAN: No
	V9100iWLD	Screen: 10.1 in wide \| Resolution: 1024x600 \| Touch switch: Analog resistive \| Wireless LAN: No
	V9071iWRLD	Screen: 7 in wide \| Resolution: 800x480 \| Touch switch: Capacitive \| Wireless LAN: Yes
	V9070iWRLD	Screen: 7 in wide \| Resolution: 800x480 \| Touch switch: Analog resistive \| Wireless LAN: Yes
	V9071iWLD	Screen: 7 in wide \| Resolution: 800x480 \| Touch switch: Capacitive \| Wireless LAN: No
	V9070iWLD	Screen: 7 in wide \| Resolution: 800x480 \| Touch switch: Analog resistive \| Wireless LAN: No
