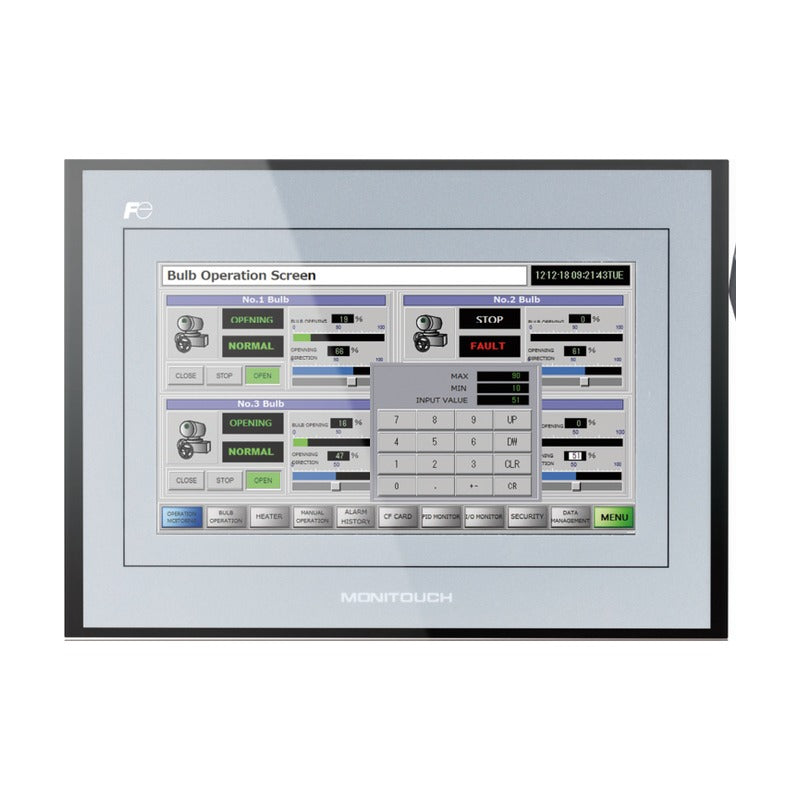

Fuji Electric Techno Shot TS1070/TS1100 HMI Touch Panels (7/10.2 in)

Fuji Electric Techno Shot TS1070/TS1100 HMI Touch Panels (7/10.2 in)

Techno Shot TS series compact wide-screen programmable displays with 65,536-colour WVGA TFT LCD and LED backlight; 'i' models add a built-in LAN port.

Key features

  • 800 x 480 dot TFT, 65,536 colours, LED backlight
  • Analog touch switch; 10.5 MB FROM, 128 KB SRAM
  • COM1 RS-422/485 plus COM2/COM3 RS-232C or RS-422/485
  • USB Type A and USB mini-B ports
  • Connects up to 8 different PLC / controller models
  • Front IP65 with optional waterproof packing (TS1070-WP / TS1100-WP)

Specifications

Series Techno Shot TS
Power supply DC24V +/-10 %, 16 W max
Touch switch Analog
Memory FROM 10.5 MB, SRAM 128 KB
Operating temperature 0 to +50 C
Protection Front IP65 (with packing), rear IP20
Standards CE, KC
Software V-SFT-5 (Ver.5.4.28.0 or later)
Resolution 800x480
Source Fuji Electric Techno Shot Series HMI catalogue (KR ed.), p. 4-5
TS1070i Screen: 7 in wide | Ethernet: 100BASE-TX/10BASE-T | Outline WxHxD: 215 x 155 x 42 mm | Panel cutout: 189 x 134 mm
TS1070 Screen: 7 in wide | Ethernet: None | Outline WxHxD: 215 x 155 x 42 mm | Panel cutout: 189 x 134 mm
TS1100i Screen: 10.2 in wide | Ethernet: 100BASE-TX/10BASE-T | Outline WxHxD: 283 x 220 x 42 mm | Panel cutout: 257 x 199 mm
TS1100 Screen: 10.2 in wide | Ethernet: None | Outline WxHxD: 283 x 220 x 42 mm | Panel cutout: 257 x 199 mm
HMI Touch PanelsFuji Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric Techno Shot TS1070/TS1100 HMI Touch Panels (7/10.2 in)

Brand Fuji Electric·HMI Touch Panels

Available part numbers (4)

TS1070i, TS1070, TS1100i, TS1100
