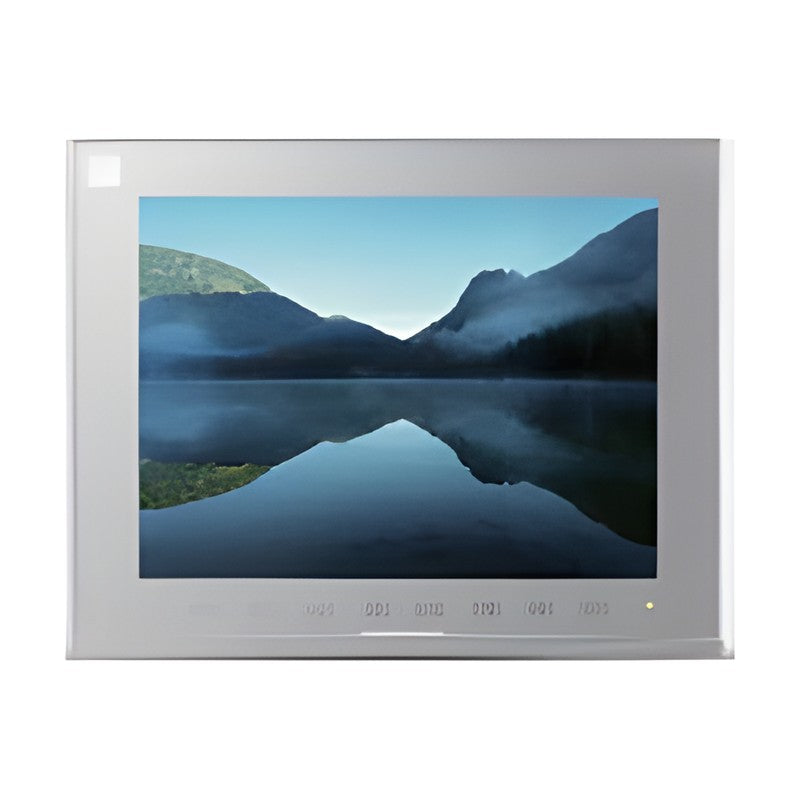

Fuji Electric MONITOUCH V9 Standard HMI Touch Panels (8.4-15 in)

Fuji Electric MONITOUCH V9 Standard HMI Touch Panels (8.4-15 in)

MONITOUCH V9 Standard programmable displays from 8.4 to 15 inches (SVGA / XGA) with analog resistive touch, AC or DC24V supply and optional extended LAN or wireless LAN.

Key features

  • TFT colour LCD: 15 in XGA, 12.1/10.4/8.4 in SVGA
  • Video / RGB input and audio output supported
  • Extended wired LAN port on 'L' models
  • Wireless LAN on 'R' models (Japan only)
  • Option units GUR-xx and communication units CUR-xx
  • Programmed with V-SFT Ver.6

Specifications

Series MONITOUCH V9 Standard
Display TFT colour LCD
Touch switch Analog resistive film
Standards KC; CE/UL508 on DC models
Software V-SFT-6
Code key X = XGA, S = SVGA, L = ext. LAN, R = wireless, D = DC24V
Source Fuji Electric MONITOUCH V9 Series catalogue (KR ed., 2016), p. 3, 13
V9150iX Screen: 15 in | Resolution: 1024x768 | Wireless LAN: No | Ext. wired LAN: No | Power: AC100-240V
V9150iXD Screen: 15 in | Resolution: 1024x768 | Wireless LAN: No | Ext. wired LAN: No | Power: DC24V
V9150iXLD Screen: 15 in | Resolution: 1024x768 | Wireless LAN: No | Ext. wired LAN: Yes | Power: DC24V
V9150iXRD Screen: 15 in | Resolution: 1024x768 | Wireless LAN: Yes (Japan only) | Ext. wired LAN: No | Power: DC24V
V9120iS Screen: 12.1 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: AC100-240V
V9120iSD Screen: 12.1 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: DC24V
V9120iSLD Screen: 12.1 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: Yes | Power: DC24V
V9120iSRD Screen: 12.1 in | Resolution: 800x600 | Wireless LAN: Yes (Japan only) | Ext. wired LAN: No | Power: DC24V
V9100iS Screen: 10.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: AC100-240V
V9100iSD Screen: 10.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: DC24V
V9100iSLD Screen: 10.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: Yes | Power: DC24V
V9100iSRD Screen: 10.4 in | Resolution: 800x600 | Wireless LAN: Yes (Japan only) | Ext. wired LAN: No | Power: DC24V
V9080iSD Screen: 8.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: DC24V
V9080iSLD Screen: 8.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: Yes | Power: DC24V
V9080iSRD Screen: 8.4 in | Resolution: 800x600 | Wireless LAN: Yes (Japan only) | Ext. wired LAN: No | Power: DC24V
HMI Touch PanelsFuji Electric
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric MONITOUCH V9 Standard HMI Touch Panels (8.4-15 in)

Brand Fuji Electric·HMI Touch Panels

Available part numbers (15)

V9150iX, V9150iXD, V9150iXLD, V9150iXRD, V9120iS, V9120iSD, V9120iSLD, V9120iSRD, V9100iS, V9100iSD + 5 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
V9150iXScreen: 15 in | Resolution: 1024x768 | Wireless LAN: No | Ext. wired LAN: No | Power: AC100-240V
V9150iXDScreen: 15 in | Resolution: 1024x768 | Wireless LAN: No | Ext. wired LAN: No | Power: DC24V
V9150iXLDScreen: 15 in | Resolution: 1024x768 | Wireless LAN: No | Ext. wired LAN: Yes | Power: DC24V
V9150iXRDScreen: 15 in | Resolution: 1024x768 | Wireless LAN: Yes (Japan only) | Ext. wired LAN: No | Power: DC24V
V9120iSScreen: 12.1 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: AC100-240V
V9120iSDScreen: 12.1 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: DC24V
V9120iSLDScreen: 12.1 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: Yes | Power: DC24V
V9120iSRDScreen: 12.1 in | Resolution: 800x600 | Wireless LAN: Yes (Japan only) | Ext. wired LAN: No | Power: DC24V
V9100iSScreen: 10.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: AC100-240V
V9100iSDScreen: 10.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: DC24V
V9100iSLDScreen: 10.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: Yes | Power: DC24V
V9100iSRDScreen: 10.4 in | Resolution: 800x600 | Wireless LAN: Yes (Japan only) | Ext. wired LAN: No | Power: DC24V
V9080iSDScreen: 8.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: No | Power: DC24V
V9080iSLDScreen: 8.4 in | Resolution: 800x600 | Wireless LAN: No | Ext. wired LAN: Yes | Power: DC24V
V9080iSRDScreen: 8.4 in | Resolution: 800x600 | Wireless LAN: Yes (Japan only) | Ext. wired LAN: No | Power: DC24V
