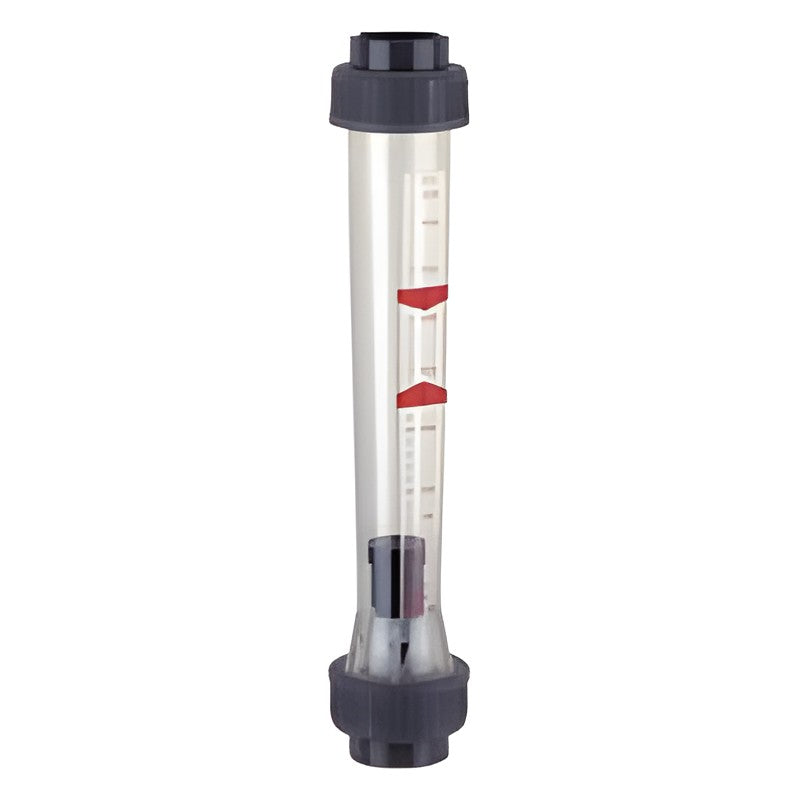

GEMÜ 850 Variable Area Flowmeter (DN 10-25)

GEMÜ 850: variable area flowmeter for monitoring flow, pressure and temperature in process lines. Available with nominal sizes DN 10-25.

Key features

Connections: Flange; Spigot; Union end
Nominal sizes DN 10-25
Up to 15 bar operating pressure; media temperature up to 120 °C
GEMÜ variable area flowmeter for industrial process lines

Specifications

Type	GEMÜ 850
Connection	Flange; Spigot; Union end
Nominal sizes	DN 10 (3/8"); DN 15 (1/2"); DN 20 (3/4"); DN 25 (1")
Max. operating pressure	15 bar
Max. media temperature	120 °C
Min. media temperature	-20 °C
Product group	Flow, level, temperature and pressure measurement
Source	GEMÜ product overview: Flow, level, temperature and pressure measurement

GEMÜ 850

Size: DN 10-25 | Pmax: 15 bar | Tmax: 120 °C

Variable Area FlowmeterGEMÜ

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GEMÜ 850 Variable Area Flowmeter (DN 10-25)

Brand GEMÜ·Variable Area Flowmeter

Available part numbers (1)

GEMÜ 850

How to order

Send the GEMÜ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
