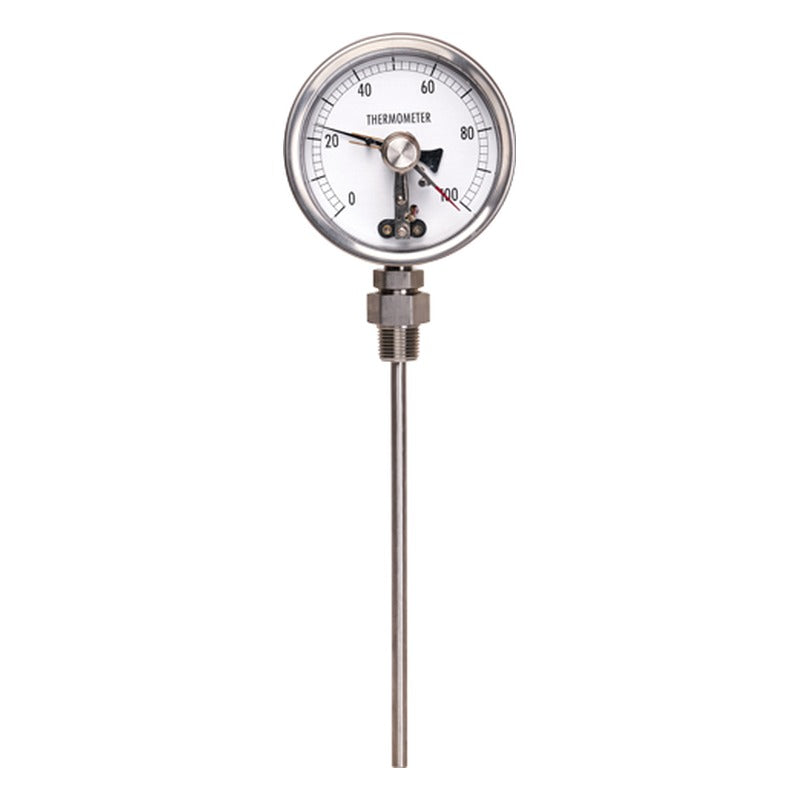

WISE T750 Series Bimetal Thermometer with Electrical Contact

Dial thermometer with pointer-actuated electrical contacts that open or close a circuit at a manually set point, for audible/visual alarms or control via auxiliary relays.

Key features

Coiled bimetal element with snap-action contacts
Bottom or center back direct connection
304SS case and cover, IP65
Stem 6.0 to 10.0 mm in 304SS, 316SS or 316L SS
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	100 mm
Mounting	Bottom or center back, direct
Measuring system	Coiled bimetal
Scale ranges	-50 to 600 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Contacts	Max. 250 V AC; AC 220 V 0.25 A / DC 100 V 0.5 A; max. 2 sets
Case / cover	304SS / 304SS
Stem	6.0, 6.4, 8.0, 10.0 mm; 304SS/316SS/316L SS
Process connection	¼", ⅜", ½", ¾" PT, NPT, PF
Degree of protection	IP65
Ordering options	Mounting, stem material/diameter, connection, range, insertion length, thermowell
Source	WISE data sheet TD07-03

T751		Alarm: High \| Dial: 100 mm
T752		Alarm: High and low \| Dial: 100 mm
T753		Alarm: Low \| Dial: 100 mm
T754		Alarm: High and high-high \| Dial: 100 mm

Electrical Contact GaugesWISE

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T750 Series Bimetal Thermometer with Electrical Contact

Brand WISE·Electrical Contact Gauges

Available part numbers (4)

T751, T752, T753, T754

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
