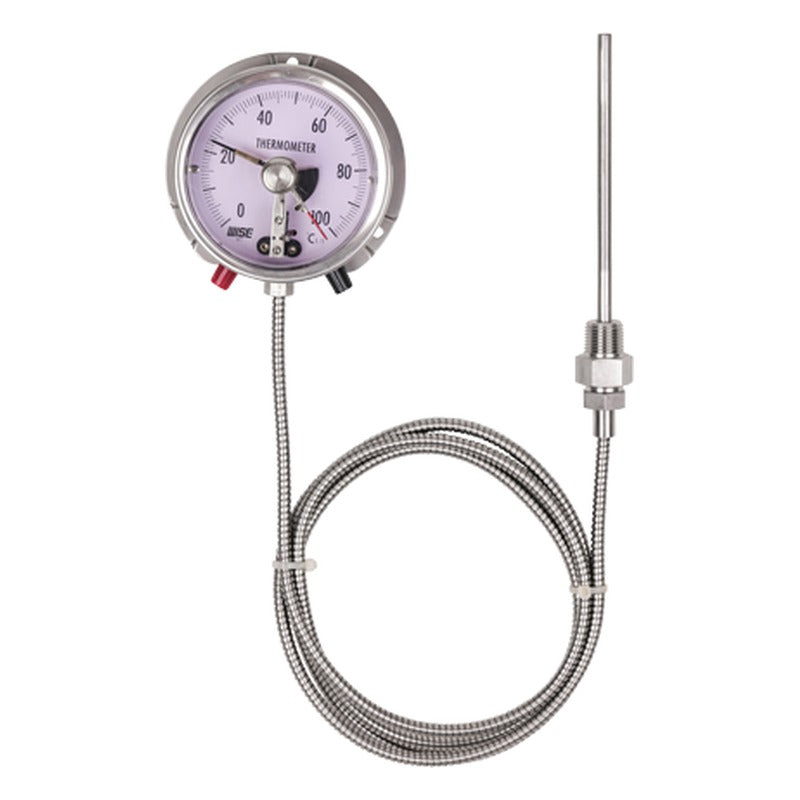

WISE T760 Series Remote Reading Thermometer with Electrical Contact

Dial thermometer with pointer-actuated electrical contacts that open or close a circuit at a manually set point, for audible/visual alarms or control via auxiliary relays.

Key features

304SS case with pointer-actuated contacts
High, low, high/low or high/high-high alarm models
Remote reading through armored capillary
Surface, flush lower or flush center mounting
Optional ±1.0 % FS special accuracy

Specifications

Nominal diameter	100 mm
Mounting	Bottom surface or lower back flush
Measuring system	Gas filled, SAMA class IIIB
Scale ranges	-50 to 700 °C (scale table)
Accuracy	±2.0 % FS (±1.0 % FS option)
Contacts	Max. 250 V AC; AC 220 V 0.25 A / DC 100 V 0.5 A; max. 2 sets
Case / cover	304SS / 304SS
Window	Acrylic
Stem	8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection	⅜", ½", ¾" PT, NPT, PF
Ordering options	Mounting, stem material/diameter, connection, range, capillary length, thermowell
Source	WISE data sheet TD07-04

T761		Alarm: High \| Dial: 100 mm
T762		Alarm: High and low \| Dial: 100 mm
T763		Alarm: Low \| Dial: 100 mm
T764		Alarm: High and high-high \| Dial: 100 mm

Electrical Contact GaugesWISE

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T760 Series Remote Reading Thermometer with Electrical Contact

Brand WISE·Electrical Contact Gauges

Available part numbers (4)

T761, T762, T763, T764

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
