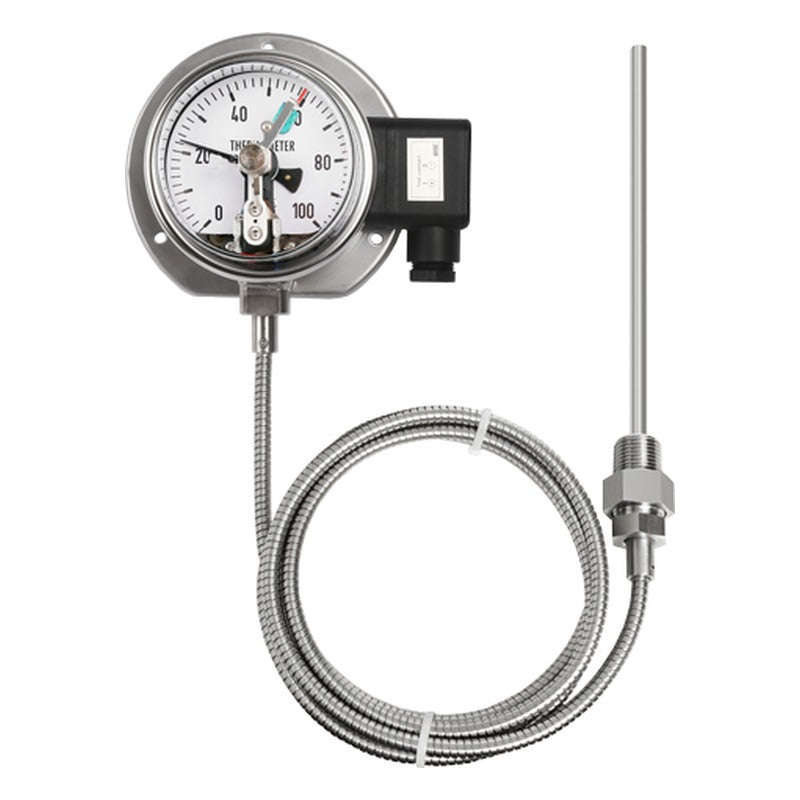

WISE T500 Series Euro Gauge Inductive Contact Thermometer

WISE T500 Series Euro Gauge Inductive Contact Thermometer

Dial thermometer with pointer-actuated electrical contacts that open or close a circuit at a manually set point, for audible/visual alarms or control via auxiliary relays.

Key features

  • Inductive (proximity sensor) contacts, wear-free switching
  • Intrinsically safe KCS Ex ia IIC T6 design
  • Up to 2 contacts: high, low, high/high-high, low/low-low
  • Euro gauge bayonet 304SS case, 100 or 160 mm
  • Remote or direct mounting, capillary up to 10 m

Specifications

Nominal diameter 100, 160 mm
Mounting Bottom surface, direct or lower back panel
Measuring system Gas filled, SAMA class IIIB
Scale ranges -50 to 700 °C (scale table)
Accuracy ±2.0 % FS (±1.0 % FS option)
Contacts Max. 250 V AC; AC 220 V 0.25 A / DC 100 V 0.5 A; max. 2 sets
Stem 8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection ⅜", ½", ¾" PT, NPT, PF
Inductive contact 10-30 V, <100 mA, switching approx. 0.5 % FS
Certificates KCS Ex ia IIC T6 (Tamb -20 to 56 °C)
Ordering options Mounting, stem material/diameter, connection, range, capillary length, thermowell
Source WISE data sheet TD05-01
T501 Alarm: High | Dial: 100, 160 mm
T502 Alarm: High and low | Dial: 100, 160 mm
T503 Alarm: Low | Dial: 100, 160 mm
T504 Alarm: High and high-high | Dial: 100, 160 mm
T505 Alarm: Low and low-low | Dial: 100, 160 mm
Electrical Contact GaugesWISE
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T500 Series Euro Gauge Inductive Contact Thermometer

Brand WISE·Electrical Contact Gauges

Available part numbers (5)

T501, T502, T503, T504, T505

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
T501Alarm: High | Dial: 100, 160 mm
T502Alarm: High and low | Dial: 100, 160 mm
T503Alarm: Low | Dial: 100, 160 mm
T504Alarm: High and high-high | Dial: 100, 160 mm
T505Alarm: Low and low-low | Dial: 100, 160 mm
