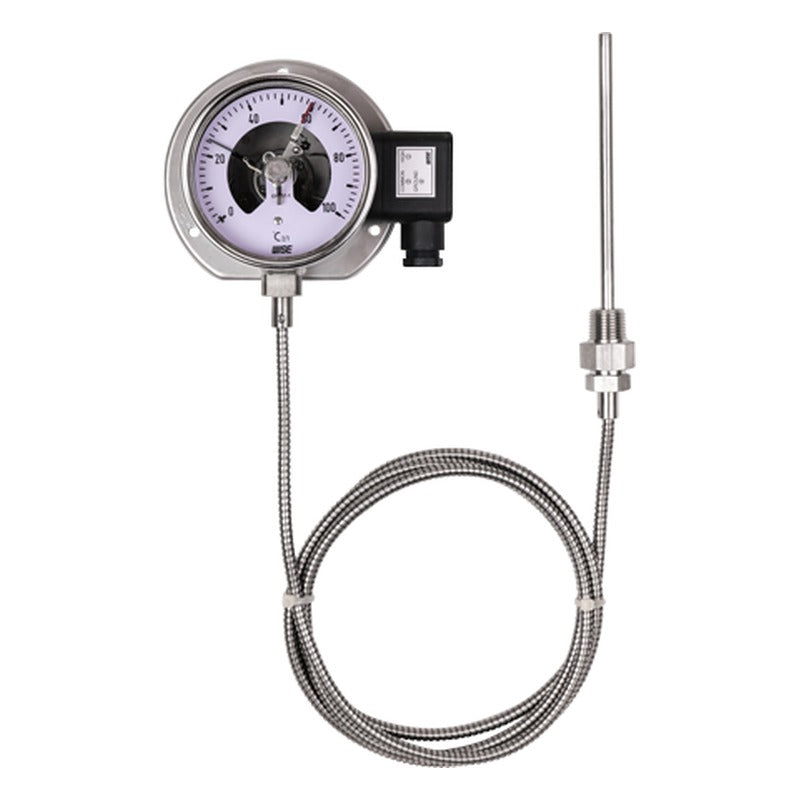

WISE T520 Series Euro Gauge Electrical Contact Thermometer

WISE T520 Series Euro Gauge Electrical Contact Thermometer

Dial thermometer with pointer-actuated electrical contacts that open or close a circuit at a manually set point, for audible/visual alarms or control via auxiliary relays.

Key features

  • Snap-action magnetic contacts resist shock and vibration
  • Up to 2 contacts incl. failsafe high/low arrangement
  • Silver-nickel gold-plated contact points, 30 W 50 VA
  • Euro gauge bayonet 304SS case
  • Remote or direct mounting, capillary up to 10 m

Specifications

Nominal diameter 100 mm
Mounting Bottom surface, direct or lower back panel
Measuring system Gas filled, SAMA class IIIB
Scale ranges -50 to 700 °C (scale table)
Accuracy ±2.0 % FS (±1.0 % FS option)
Contacts Max. 250 V AC; AC 220 V 0.25 A / DC 100 V 0.5 A; max. 2 sets
Case / cover 304SS, bayonet type
Stem 8.0, 10.0, 12.0 mm; 316SS/316L SS
Process connection ⅜", ½", ¾" PT, NPT, PF
Snap-action contact Max. 250 V, 1.0 A, 30 W 50 VA (dry)
Ordering options Mounting, stem material/diameter, connection, range, capillary length, thermowell
Source WISE data sheet TD05-03
T521 Alarm: High | Dial: 100 mm
T522 Alarm: High and low | Dial: 100 mm
T523 Alarm: Low | Dial: 100 mm
T524 Alarm: Two high | Dial: 100 mm
T525 Alarm: Two low | Dial: 100 mm
T526 Alarm: Failsafe high and low | Dial: 100 mm
Electrical Contact GaugesWISE
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE T520 Series Euro Gauge Electrical Contact Thermometer

Brand WISE·Electrical Contact Gauges

Available part numbers (6)

T521, T522, T523, T524, T525, T526

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
T521Alarm: High | Dial: 100 mm
T522Alarm: High and low | Dial: 100 mm
T523Alarm: Low | Dial: 100 mm
T524Alarm: Two high | Dial: 100 mm
T525Alarm: Two low | Dial: 100 mm
T526Alarm: Failsafe high and low | Dial: 100 mm
