• GGM 120W □90mm Single-phase AC Induction Geared Motor (50Hz, Lead wire)
1 1

GGM 120W □90mm Single-phase AC Induction Geared Motor (50Hz, Lead wire)

GGM 120W □90mm Single-phase AC Induction Geared Motor (50Hz, Lead wire)

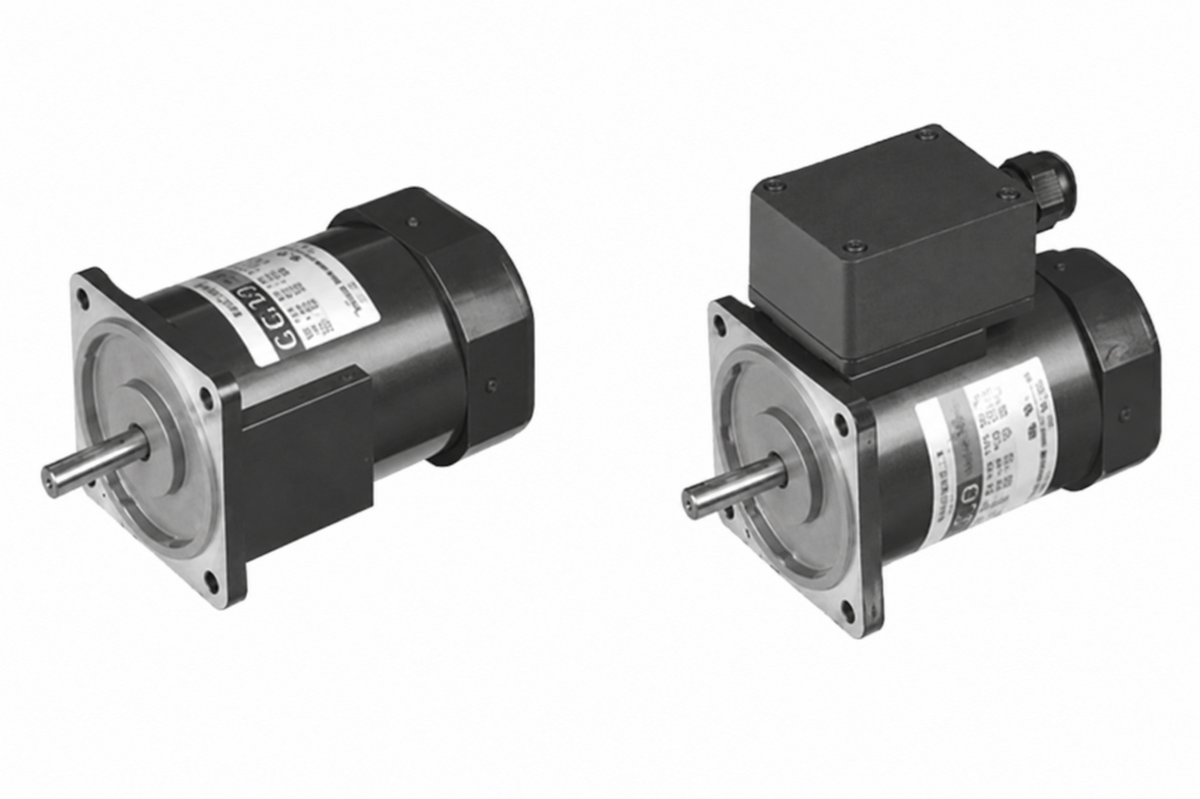

GGM 120W single-phase AC induction geared motor, □90mm frame, 4-pole, 50Hz rated (1300rpm), continuous rating.

Key features

  • Lead wire type (300mm, UL Style 3271 AWG20)
  • Straight (S) and pinion (P) shaft options. 50Hz voltages 100/200/220/230/240V with built-in capacitor
  • Compatible with K9P power gearheads (sold separately)

Specifications

Frame □90mm
Output 120W
Poles 4
Phase Single-phase
Frequency 50Hz (C50 model)
Output Type Lead wire type (300mm, UL Style 3271 AWG20)
Speed basis 4-pole synchronous 1500rpm@50Hz
UL not listed for this variant
K9IS120FJ-C50 GGM 120W single-phase 4-pole geared motor, 50Hz, 100V, Straight shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 35µF | Operating Points: 100V/50Hz: 2.2A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IP120FJ-C50 GGM 120W single-phase 4-pole geared motor, 50Hz, 100V, Pinion shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 35µF | Operating Points: 100V/50Hz: 2.2A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IS120FL-C50 GGM 120W single-phase 4-pole geared motor, 50Hz, 200V, Straight shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 8.5µF | Operating Points: 200V/50Hz: 1.07A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IP120FL-C50 GGM 120W single-phase 4-pole geared motor, 50Hz, 200V, Pinion shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 8.5µF | Operating Points: 200V/50Hz: 1.07A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IS120FC-C50 GGM 120W single-phase 4-pole geared motor, 50Hz, 220/230V, Straight shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.82A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | 230V/50Hz: 0.85A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IP120FC-C50 GGM 120W single-phase 4-pole geared motor, 50Hz, 220/230V, Pinion shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.82A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | 230V/50Hz: 0.85A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IS120FD-C50 GGM 120W single-phase 4-pole geared motor, 50Hz, 240V, Straight shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 6µF | Operating Points: 240V/50Hz: 0.9A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IP120FD-C50 GGM 120W single-phase 4-pole geared motor, 50Hz, 240V, Pinion shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 6µF | Operating Points: 240V/50Hz: 0.9A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
AC Geared MotorsGGM
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM 120W □90mm Single-phase AC Induction Geared Motor (50Hz, Lead wire)

Brand GGM·AC Geared Motors

Available part numbers (8)

K9IS120FJ-C50, K9IP120FJ-C50, K9IS120FL-C50, K9IP120FL-C50, K9IS120FC-C50, K9IP120FC-C50, K9IS120FD-C50, K9IP120FD-C50

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K9IS120FJ-C50GGM 120W single-phase 4-pole geared motor, 50Hz, 100V, Straight shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 35µF | Operating Points: 100V/50Hz: 2.2A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IP120FJ-C50GGM 120W single-phase 4-pole geared motor, 50Hz, 100V, Pinion shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 35µF | Operating Points: 100V/50Hz: 2.2A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IS120FL-C50GGM 120W single-phase 4-pole geared motor, 50Hz, 200V, Straight shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 8.5µF | Operating Points: 200V/50Hz: 1.07A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IP120FL-C50GGM 120W single-phase 4-pole geared motor, 50Hz, 200V, Pinion shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 8.5µF | Operating Points: 200V/50Hz: 1.07A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IS120FC-C50GGM 120W single-phase 4-pole geared motor, 50Hz, 220/230V, Straight shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.82A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | 230V/50Hz: 0.85A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IP120FC-C50GGM 120W single-phase 4-pole geared motor, 50Hz, 220/230V, Pinion shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.82A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | 230V/50Hz: 0.85A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IS120FD-C50GGM 120W single-phase 4-pole geared motor, 50Hz, 240V, Straight shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 6µF | Operating Points: 240V/50Hz: 0.9A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
K9IP120FD-C50GGM 120W single-phase 4-pole geared motor, 50Hz, 240V, Pinion shaft, Lead wire | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 50Hz (C50 model) | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 6µF | Operating Points: 240V/50Hz: 0.9A, Start 0.6/6 N·m/kgf·cm, Rated 0.9/9 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz | UL: not listed for this variant
