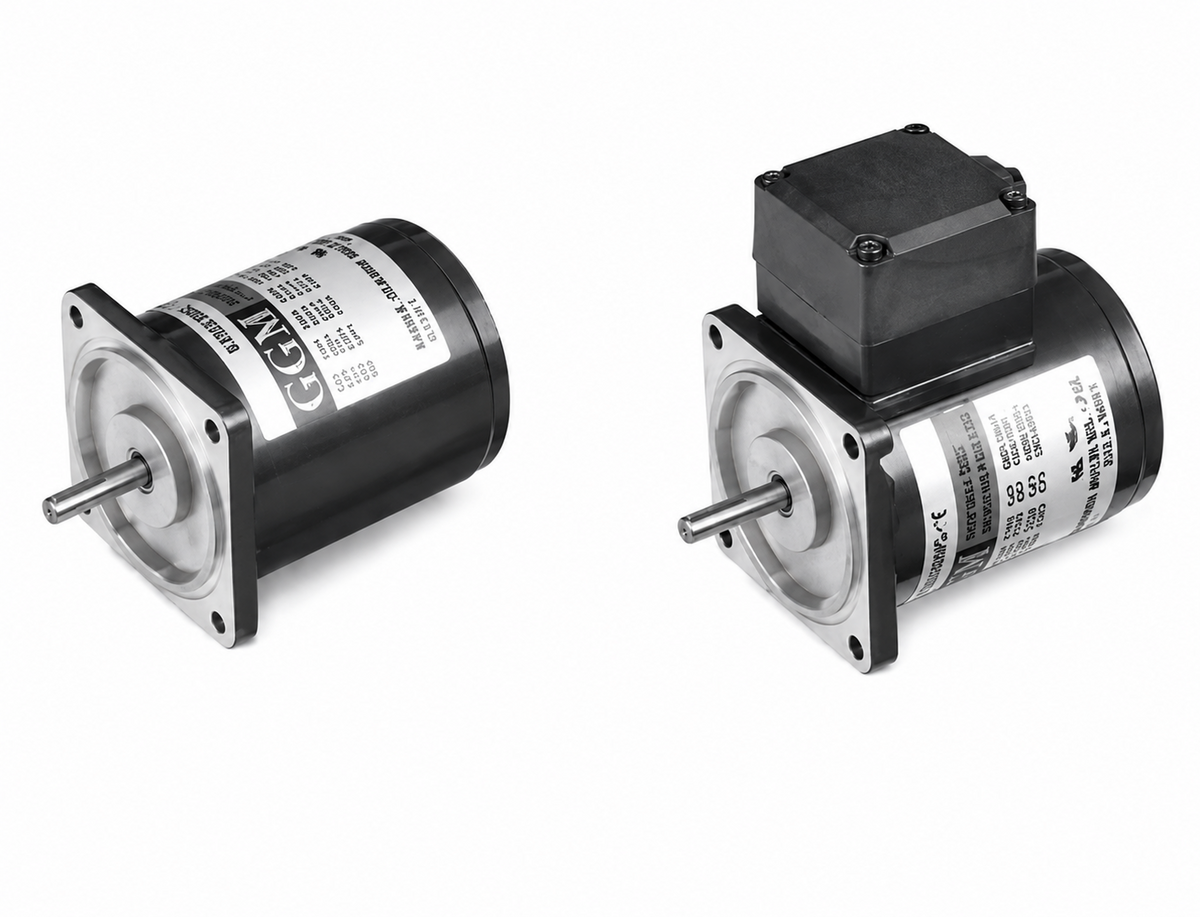

GGM K6I□6N Series 6W Single-Phase AC Induction Motor (□60mm, 4-Pole, Lead Wire)

GGM K6I□6N Series 6W Single-Phase AC Induction Motor (□60mm, 4-Pole, Lead Wire)

GGM K6I□6N series 6W single-phase AC induction motor. □60mm frame, 4-pole, continuous rating, lead wire (300mm, ul style 3266 awg20).

Key features

  • Straight (S) and pinion (G) shaft; 100–240V (50/60Hz)
  • Pinion-shaft type combines with K6G□ gear heads (matching face/teeth)
  • U variant (110/115V) UL certified, UL FILE NO
  • E235858

Specifications

Output 6W
Poles 4
Phase Single-phase
Frame □60mm
Connection Lead wire (300mm, UL Style 3266 AWG20)
K6IS6NJ GGM 6W AC induction motor K6IS6NJ — Straight shaft, 100V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 100V | Condenser: 3μF | Operating Points: 100V/50Hz: 0.25A, Start 0.04/0.4N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 100V/60Hz: 0.23A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IG6NJ GGM 6W AC induction motor K6IG6NJ — Pinion (for gear head) shaft, 100V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 100V | Condenser: 3μF | Operating Points: 100V/50Hz: 0.25A, Start 0.04/0.4N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 100V/60Hz: 0.23A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IS6NU GGM 6W AC induction motor K6IS6NU — Straight shaft, 110/115V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 110/115V | Condenser: 2μF | Operating Points: 110V/60Hz: 0.18A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.19A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: Certified (E235858)
K6IG6NU GGM 6W AC induction motor K6IG6NU — Pinion (for gear head) shaft, 110/115V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 110/115V | Condenser: 2μF | Operating Points: 110V/60Hz: 0.18A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.19A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: Certified (E235858)
K6IS6NL GGM 6W AC induction motor K6IS6NL — Straight shaft, 200V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 200V | Condenser: 0.8μF | Operating Points: 200V/50Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IG6NL GGM 6W AC induction motor K6IG6NL — Pinion (for gear head) shaft, 200V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 200V | Condenser: 0.8μF | Operating Points: 200V/50Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IS6NC GGM 6W AC induction motor K6IS6NC — Straight shaft, 220/230V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 220/230V | Condenser: 0.6μF | Operating Points: 220V/50Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.10A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IG6NC GGM 6W AC induction motor K6IG6NC — Pinion (for gear head) shaft, 220/230V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 220/230V | Condenser: 0.6μF | Operating Points: 220V/50Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.10A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IS6ND GGM 6W AC induction motor K6IS6ND — Straight shaft, 240V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 240V | Condenser: 0.5μF | Operating Points: 240V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm | UL: —
K6IG6ND GGM 6W AC induction motor K6IG6ND — Pinion (for gear head) shaft, 240V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 240V | Condenser: 0.5μF | Operating Points: 240V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm | UL: —
AC Geared MotorsGGM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K6I□6N Series 6W Single-Phase AC Induction Motor (□60mm, 4-Pole, Lead Wire)

Brand GGM·AC Geared Motors

Available part numbers (10)

K6IS6NJ, K6IG6NJ, K6IS6NU, K6IG6NU, K6IS6NL, K6IG6NL, K6IS6NC, K6IG6NC, K6IS6ND, K6IG6ND

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K6IS6NJGGM 6W AC induction motor K6IS6NJ — Straight shaft, 100V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 100V | Condenser: 3μF | Operating Points: 100V/50Hz: 0.25A, Start 0.04/0.4N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 100V/60Hz: 0.23A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IG6NJGGM 6W AC induction motor K6IG6NJ — Pinion (for gear head) shaft, 100V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 100V | Condenser: 3μF | Operating Points: 100V/50Hz: 0.25A, Start 0.04/0.4N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 100V/60Hz: 0.23A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IS6NUGGM 6W AC induction motor K6IS6NU — Straight shaft, 110/115V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 110/115V | Condenser: 2μF | Operating Points: 110V/60Hz: 0.18A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.19A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: Certified (E235858)
K6IG6NUGGM 6W AC induction motor K6IG6NU — Pinion (for gear head) shaft, 110/115V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 110/115V | Condenser: 2μF | Operating Points: 110V/60Hz: 0.18A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.19A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: Certified (E235858)
K6IS6NLGGM 6W AC induction motor K6IS6NL — Straight shaft, 200V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 200V | Condenser: 0.8μF | Operating Points: 200V/50Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IG6NLGGM 6W AC induction motor K6IG6NL — Pinion (for gear head) shaft, 200V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 200V | Condenser: 0.8μF | Operating Points: 200V/50Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.049/0.49N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.11A, Start 0.045/0.45N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IS6NCGGM 6W AC induction motor K6IS6NC — Straight shaft, 220/230V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 220/230V | Condenser: 0.6μF | Operating Points: 220V/50Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.10A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IG6NCGGM 6W AC induction motor K6IG6NC — Pinion (for gear head) shaft, 220/230V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 220/230V | Condenser: 0.6μF | Operating Points: 220V/50Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.10A, Start 0.035/0.35N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.11A, Start 0.04/0.4N·m·kgf·cm, Rated 0.04/0.4N·m·kgf·cm, 1500rpm | UL: —
K6IS6NDGGM 6W AC induction motor K6IS6ND — Straight shaft, 240V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 240V | Condenser: 0.5μF | Operating Points: 240V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm | UL: —
K6IG6NDGGM 6W AC induction motor K6IG6ND — Pinion (for gear head) shaft, 240V, Lead wire (300mm, UL Style 3266 AWG20) | Output: 6W | Poles: 4 | Phase: Single-phase | Frame: □60mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3266 AWG20) | Voltage: 240V | Condenser: 0.5μF | Operating Points: 240V/50Hz: 0.12A, Start 0.045/0.45N·m·kgf·cm, Rated 0.047/0.47N·m·kgf·cm, 1250rpm | UL: —
