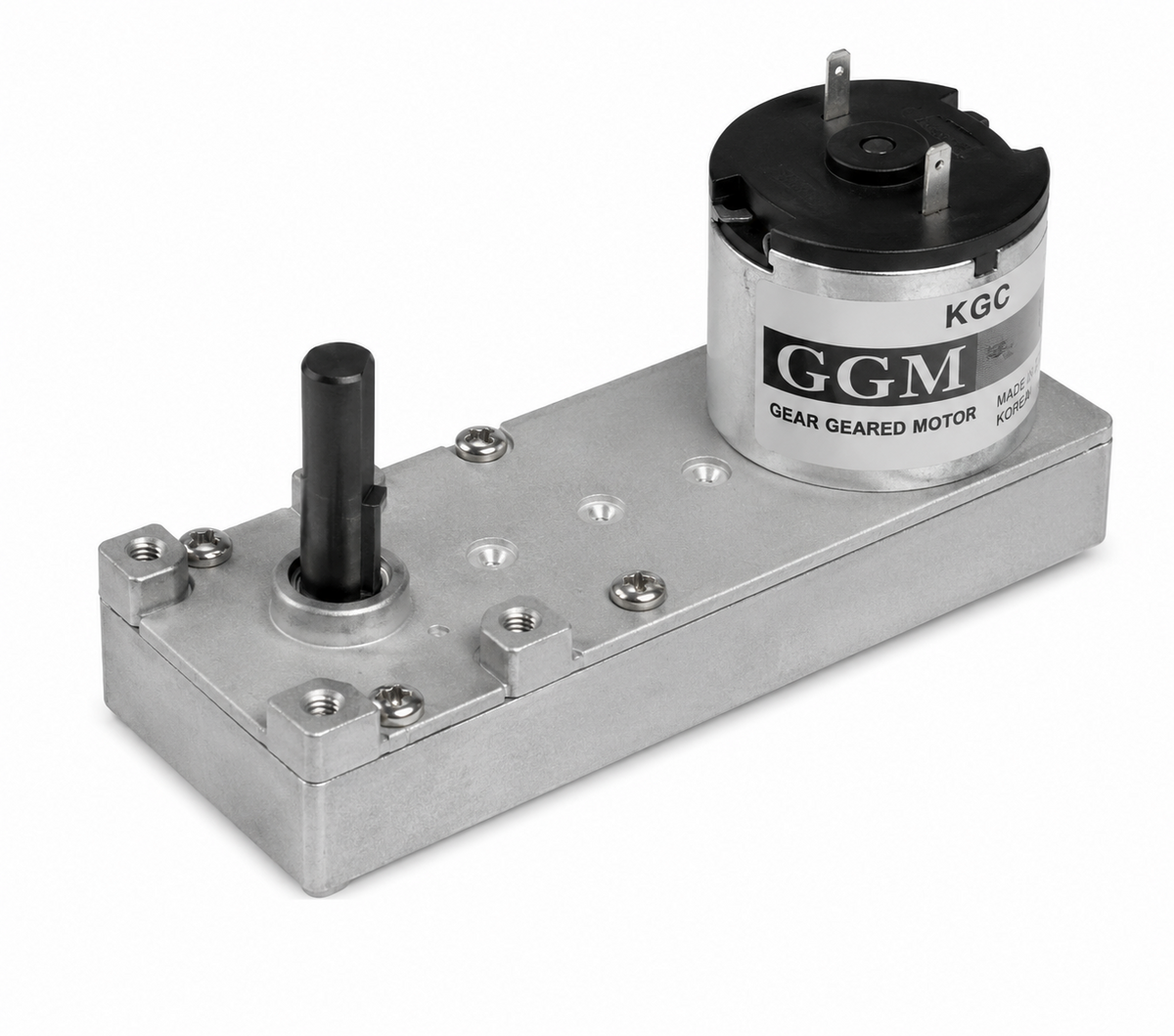

GGM KGF-3429-P2 Worm Geared DC Motor (DC 24V, 9500rpm base, 5 ratios 1/57-1/255, F/R shaft)

GGM KGF-3429-P2 worm geared DC motor, DC 24V (9500 rpm base motor). 5 gear ratios 1/57-1/255, output torque up to 6 kgf·cm, ø8 output shaft, 4-M4 mounting.

Key features

Output rotation opposite to motor
R-Type shaft is standard (F-Type optional)

KGF-0057-KD3429P2		KGF-3429-P2 R-Type worm geared, 1/57, 140rpm, 1.3kgf·cm \| Gear Ratio: 1/57 \| Output Speed: 140 rpm \| Output Torque: 1.3 kgf·cm \| Shaft Type: R-Type
KGF-0100-KD3429P2		KGF-3429-P2 R-Type worm geared, 1/100, 80rpm, 2.4kgf·cm \| Gear Ratio: 1/100 \| Output Speed: 80 rpm \| Output Torque: 2.4 kgf·cm \| Shaft Type: R-Type
KGF-0130-KD3429P2		KGF-3429-P2 R-Type worm geared, 1/130, 61.5rpm, 3.1kgf·cm \| Gear Ratio: 1/130 \| Output Speed: 61.5 rpm \| Output Torque: 3.1 kgf·cm \| Shaft Type: R-Type
KGF-0188-KD3429P2		KGF-3429-P2 R-Type worm geared, 1/188, 42.6rpm, 4.4kgf·cm \| Gear Ratio: 1/188 \| Output Speed: 42.6 rpm \| Output Torque: 4.4 kgf·cm \| Shaft Type: R-Type
KGF-0255-KD3429P2		KGF-3429-P2 R-Type worm geared, 1/255, 31.4rpm, 6kgf·cm \| Gear Ratio: 1/255 \| Output Speed: 31.4 rpm \| Output Torque: 6 kgf·cm \| Shaft Type: R-Type
KGF-0057-KD3429P2-F		KGF-3429-P2 F-Type worm geared, 1/57, 140rpm, 1.3kgf·cm \| Gear Ratio: 1/57 \| Output Speed: 140 rpm \| Output Torque: 1.3 kgf·cm \| Shaft Type: F-Type
KGF-0100-KD3429P2-F		KGF-3429-P2 F-Type worm geared, 1/100, 80rpm, 2.4kgf·cm \| Gear Ratio: 1/100 \| Output Speed: 80 rpm \| Output Torque: 2.4 kgf·cm \| Shaft Type: F-Type
KGF-0130-KD3429P2-F		KGF-3429-P2 F-Type worm geared, 1/130, 61.5rpm, 3.1kgf·cm \| Gear Ratio: 1/130 \| Output Speed: 61.5 rpm \| Output Torque: 3.1 kgf·cm \| Shaft Type: F-Type
KGF-0188-KD3429P2-F		KGF-3429-P2 F-Type worm geared, 1/188, 42.6rpm, 4.4kgf·cm \| Gear Ratio: 1/188 \| Output Speed: 42.6 rpm \| Output Torque: 4.4 kgf·cm \| Shaft Type: F-Type
KGF-0255-KD3429P2-F		KGF-3429-P2 F-Type worm geared, 1/255, 31.4rpm, 6kgf·cm \| Gear Ratio: 1/255 \| Output Speed: 31.4 rpm \| Output Torque: 6 kgf·cm \| Shaft Type: F-Type

DCGGM

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGF-3429-P2 Worm Geared DC Motor (DC 24V, 9500rpm base, 5 ratios 1/57-1/255, F/R shaft)

Brand GGM·DC

Available part numbers (10)

KGF-0057-KD3429P2, KGF-0100-KD3429P2, KGF-0130-KD3429P2, KGF-0188-KD3429P2, KGF-0255-KD3429P2, KGF-0057-KD3429P2-F, KGF-0100-KD3429P2-F, KGF-0130-KD3429P2-F, KGF-0188-KD3429P2-F, KGF-0255-KD3429P2-F

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	KGF-0057-KD3429P2	KGF-3429-P2 R-Type worm geared, 1/57, 140rpm, 1.3kgf·cm \| Gear Ratio: 1/57 \| Output Speed: 140 rpm \| Output Torque: 1.3 kgf·cm \| Shaft Type: R-Type
	KGF-0100-KD3429P2	KGF-3429-P2 R-Type worm geared, 1/100, 80rpm, 2.4kgf·cm \| Gear Ratio: 1/100 \| Output Speed: 80 rpm \| Output Torque: 2.4 kgf·cm \| Shaft Type: R-Type
	KGF-0130-KD3429P2	KGF-3429-P2 R-Type worm geared, 1/130, 61.5rpm, 3.1kgf·cm \| Gear Ratio: 1/130 \| Output Speed: 61.5 rpm \| Output Torque: 3.1 kgf·cm \| Shaft Type: R-Type
	KGF-0188-KD3429P2	KGF-3429-P2 R-Type worm geared, 1/188, 42.6rpm, 4.4kgf·cm \| Gear Ratio: 1/188 \| Output Speed: 42.6 rpm \| Output Torque: 4.4 kgf·cm \| Shaft Type: R-Type
	KGF-0255-KD3429P2	KGF-3429-P2 R-Type worm geared, 1/255, 31.4rpm, 6kgf·cm \| Gear Ratio: 1/255 \| Output Speed: 31.4 rpm \| Output Torque: 6 kgf·cm \| Shaft Type: R-Type
	KGF-0057-KD3429P2-F	KGF-3429-P2 F-Type worm geared, 1/57, 140rpm, 1.3kgf·cm \| Gear Ratio: 1/57 \| Output Speed: 140 rpm \| Output Torque: 1.3 kgf·cm \| Shaft Type: F-Type
	KGF-0100-KD3429P2-F	KGF-3429-P2 F-Type worm geared, 1/100, 80rpm, 2.4kgf·cm \| Gear Ratio: 1/100 \| Output Speed: 80 rpm \| Output Torque: 2.4 kgf·cm \| Shaft Type: F-Type
	KGF-0130-KD3429P2-F	KGF-3429-P2 F-Type worm geared, 1/130, 61.5rpm, 3.1kgf·cm \| Gear Ratio: 1/130 \| Output Speed: 61.5 rpm \| Output Torque: 3.1 kgf·cm \| Shaft Type: F-Type
	KGF-0188-KD3429P2-F	KGF-3429-P2 F-Type worm geared, 1/188, 42.6rpm, 4.4kgf·cm \| Gear Ratio: 1/188 \| Output Speed: 42.6 rpm \| Output Torque: 4.4 kgf·cm \| Shaft Type: F-Type
	KGF-0255-KD3429P2-F	KGF-3429-P2 F-Type worm geared, 1/255, 31.4rpm, 6kgf·cm \| Gear Ratio: 1/255 \| Output Speed: 31.4 rpm \| Output Torque: 6 kgf·cm \| Shaft Type: F-Type
