• GGM KGP-3448-T1 Insert Geared DC Motor (DC 12V, 7500rpm base, 2 ratios 1/62-1/116)
1 1

GGM KGP-3448-T1 Insert Geared DC Motor (DC 12V, 7500rpm base, 2 ratios 1/62-1/116)

GGM KGP-3448-T1 Insert Geared DC Motor (DC 12V, 7500rpm base, 2 ratios 1/62-1/116)

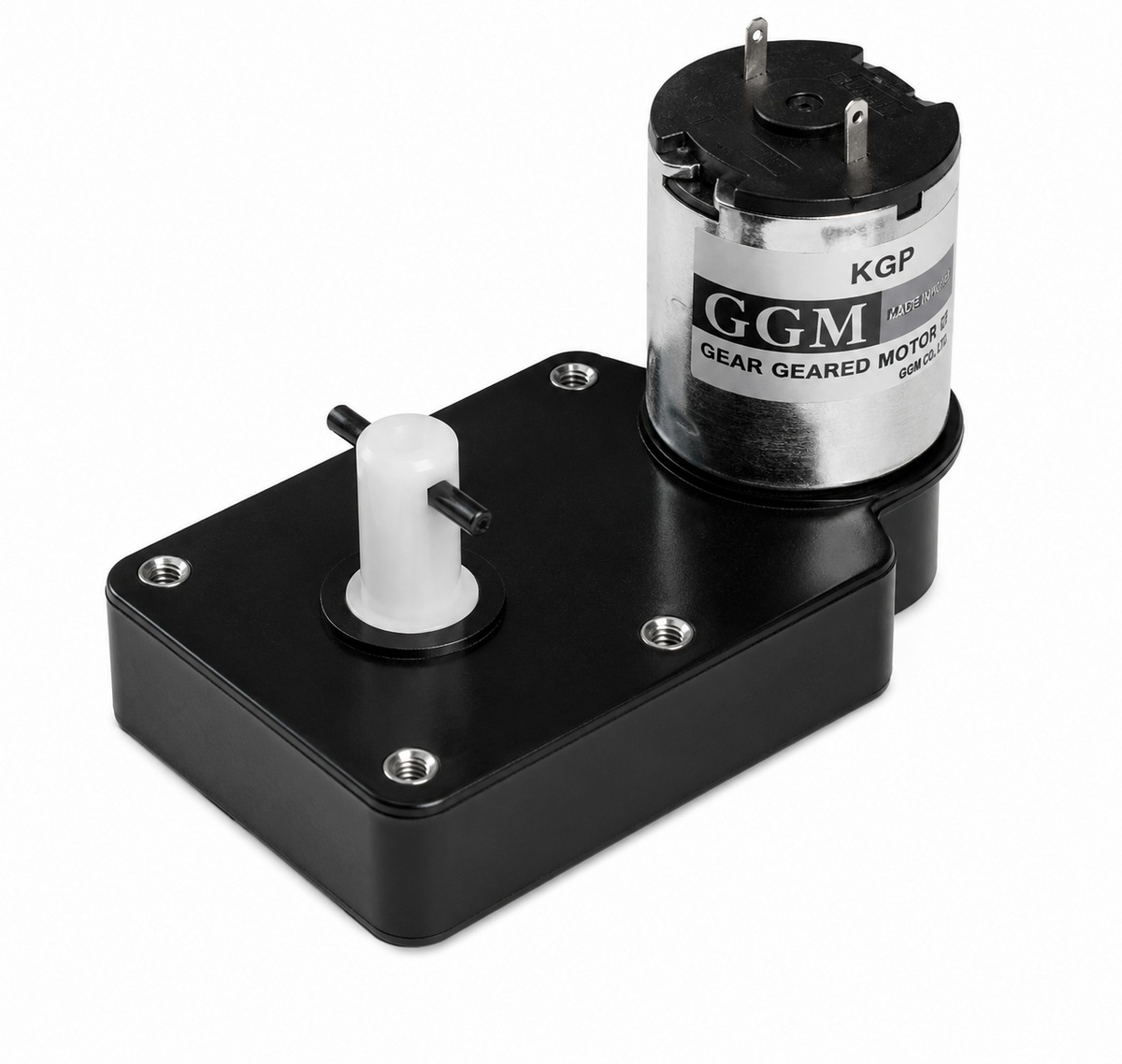

GGM KGP-3448-T1 insert-mount geared DC motor, DC 12V (7500 rpm base motor). 2 gear ratios 1/62-1/116, output torque up to 6 kgf·cm, ø11 output bore with ø3 spring pin, 4-M4 nut-insert mounting.

Key features

  • Output rotation same as motor

Specifications

Mount/Output Insert (4-M4 nut), ø11 bore
KGP-0062-KD3448T1-IN KGP-3448-T1 Insert geared, 1/62, 104.8rpm, 3.2kgf·cm | Gear Ratio: 1/62 | Output Speed: 104.8 rpm | Output Torque: 3.2 kgf·cm | Mount/Output: Insert (4-M4 nut), ø11 bore
KGP-0116-KD3448T1-IN KGP-3448-T1 Insert geared, 1/116, 56rpm, 6kgf·cm | Gear Ratio: 1/116 | Output Speed: 56 rpm | Output Torque: 6 kgf·cm | Mount/Output: Insert (4-M4 nut), ø11 bore
DCGGM
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGP-3448-T1 Insert Geared DC Motor (DC 12V, 7500rpm base, 2 ratios 1/62-1/116)

Brand GGM·DC

Available part numbers (2)

KGP-0062-KD3448T1-IN, KGP-0116-KD3448T1-IN

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGP-0062-KD3448T1-INKGP-3448-T1 Insert geared, 1/62, 104.8rpm, 3.2kgf·cm | Gear Ratio: 1/62 | Output Speed: 104.8 rpm | Output Torque: 3.2 kgf·cm | Mount/Output: Insert (4-M4 nut), ø11 bore
KGP-0116-KD3448T1-INKGP-3448-T1 Insert geared, 1/116, 56rpm, 6kgf·cm | Gear Ratio: 1/116 | Output Speed: 56 rpm | Output Torque: 6 kgf·cm | Mount/Output: Insert (4-M4 nut), ø11 bore

Need a different model, or a part not listed here? Send us your parts list →
