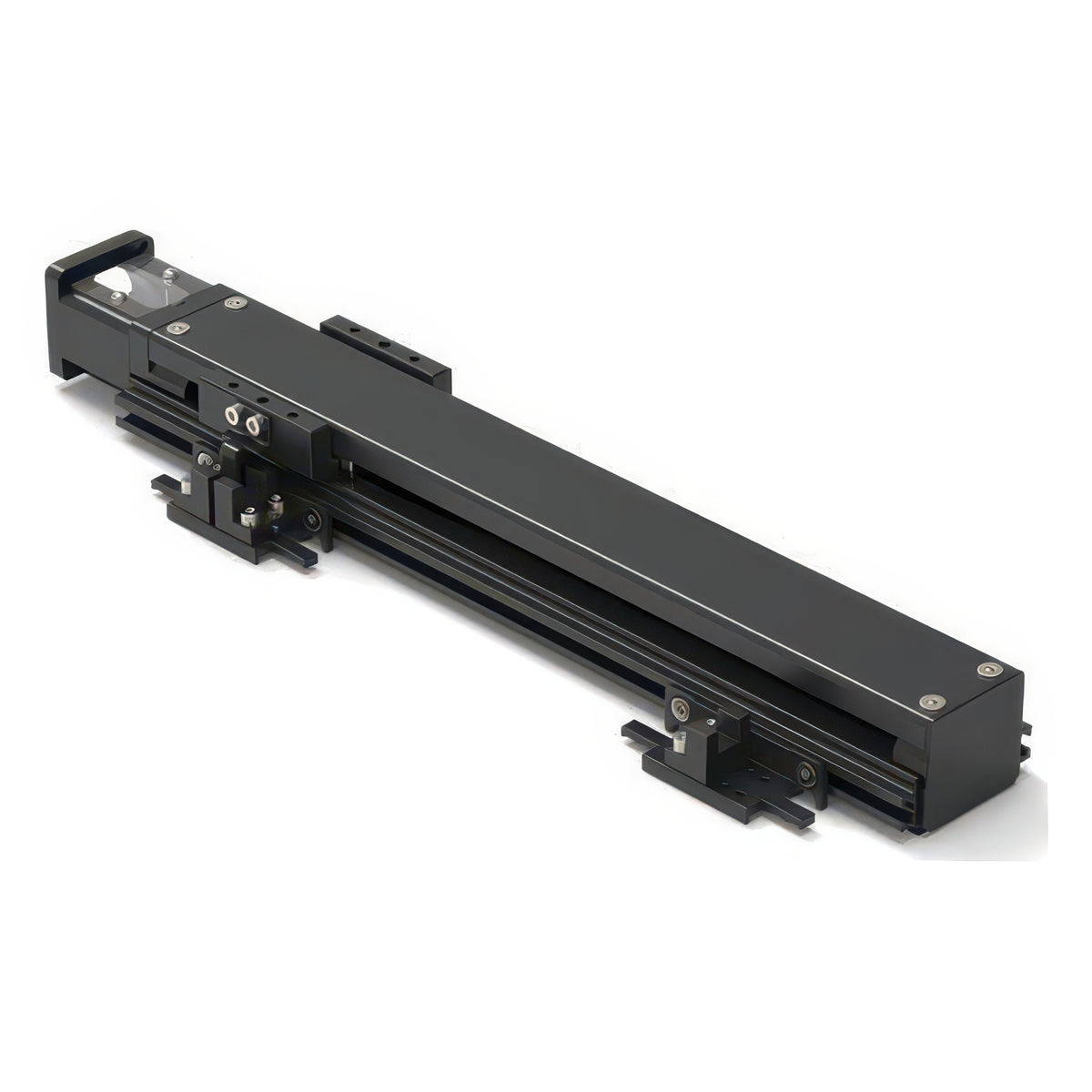

The KGB Open Type is a ball screw driven single-axis actuator with an integrated guide-slider structure instead of separate LM blocks.

Key features

  • The guide-slider design lowers the actuator height by roughly 30-40% compared with conventional LM-guide actuators while widening the slider span for higher moment capacity
  • An aluminum base keeps the unit lightweight, and the ball screw unit is assembled directly into the slider for rigidity and repeatability
  • Grease nipples on both sides of the slider allow lubrication from either direction after installation
  • Body widths range from 30 mm to 160 mm with rolled or ground ball screws, in-line or folded motor layouts and strokes up to 1400 mm

Specifications

Acceleration max 0.3 G
KGB030C-SS Body width: 30 mm | Configuration: Open type, motor in-line (straight) | Ball screw diameter: 6 mm (rolled or ground) | Lead: 1 / 6 mm | Stroke: 25-150 mm | Max speed: 24 / 144 mm/s | Max payload horizontal: 4 kg | Max payload vertical: 2 kg | Repeatability: rolled ±0.008, ground ±0.005 mm | Motor: Stepping motor 28 mm | Acceleration: max 0.3 G
KGB040C-SS Body width: 40 mm | Configuration: Open type, motor in-line (straight) | Ball screw diameter: 8 mm (rolled or ground) | Lead: 2 / 5 (rolled), 2 / 4 (ground) mm | Stroke: 50-250 mm | Max speed: 100 / 250 (rolled), 100 / 200 (ground) mm/s | Max payload horizontal: 10 kg | Max payload vertical: 7 / 5 kg | Repeatability: rolled ±0.008, ground ±0.005 mm | Motor: AC servo 50 W / 100 W | Acceleration: max 0.3 G
KGB040C-PB Body width: 40 mm | Configuration: Open type, motor folded underneath (bottom parallel) | Ball screw diameter: 8 mm (rolled or ground) | Lead: 2 / 5 (rolled), 2 / 4 (ground) mm | Stroke: 50-250 mm | Max speed: 100 / 250 (rolled), 100 / 200 (ground) mm/s | Max payload horizontal: 10 kg | Max payload vertical: 7 / 5 kg | Repeatability: rolled ±0.008, ground ±0.005 mm | Motor: AC servo 50 W / 100 W | Acceleration: max 0.3 G
KGB050C-SS Body width: 50 mm | Configuration: Open type, motor in-line (straight) | Ball screw diameter: 12 mm (rolled or ground) | Lead: 5 / 10 mm | Stroke: 50-500 mm | Max speed: 250 / 500 mm/s | Max payload horizontal: 18 kg | Max payload vertical: 16 / 10 kg | Repeatability: rolled ±0.008, ground ±0.005 mm | Motor: AC servo 100 W | Acceleration: max 0.3 G
KGB050C-PB Body width: 50 mm | Configuration: Open type, motor folded underneath (bottom parallel) | Ball screw diameter: 12 mm (rolled or ground) | Lead: 5 / 10 mm | Stroke: 50-500 mm | Max speed: 250 / 500 mm/s | Max payload horizontal: 18 kg | Max payload vertical: 16 / 10 kg | Repeatability: rolled ±0.008, ground ±0.005 mm | Motor: AC servo 100 W | Acceleration: max 0.3 G
KGB060C-SS Body width: 60 mm | Configuration: Open type, motor in-line (straight) | Ball screw diameter: 12 mm (rolled or ground) | Lead: 5 / 10 mm | Stroke: 50-800 mm | Max speed: 250 / 500 mm/s | Max payload horizontal: 23 kg | Max payload vertical: 20 / 15 kg | Repeatability: rolled ±0.008, ground ±0.005 mm | Motor: AC servo 100 W (or 200 W) | Acceleration: max 0.3 G
KGB060C-PB Body width: 60 mm | Configuration: Open type, motor folded underneath (bottom parallel) | Ball screw diameter: 12 mm (rolled or ground) | Lead: 5 / 10 mm | Stroke: 50-800 mm | Max speed: 250 / 500 mm/s | Max payload horizontal: 23 kg | Max payload vertical: 20 / 15 kg | Repeatability: rolled ±0.008, ground ±0.005 mm | Motor: AC servo 100 W (or 200 W) | Acceleration: max 0.3 G
KGB090C-SS Body width: 90 mm | Configuration: Open type, motor in-line (straight) | Ball screw diameter: 15 mm (rolled or ground) | Lead: 5 / 10 / 20 mm | Stroke: 50-1000 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 45 / 45 / 40 kg | Max payload vertical: 35 / 25 / 15 kg | Repeatability: rolled ±0.01, ground ±0.008 mm | Motor: AC servo 200 W (400 W capable) | Acceleration: max 0.3 G
KGB090C-PB Body width: 90 mm | Configuration: Open type, motor folded underneath (bottom parallel) | Ball screw diameter: 15 mm (rolled or ground) | Lead: 5 / 10 / 20 mm | Stroke: 50-1000 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 45 / 45 / 40 kg | Max payload vertical: 35 / 25 / 15 kg | Repeatability: rolled ±0.01, ground ±0.008 mm | Motor: AC servo 200 W (400 W capable) | Acceleration: max 0.3 G
KGB120C-SS Body width: 120 mm | Configuration: Open type, motor in-line (straight) | Ball screw diameter: 15 mm (rolled or ground) | Lead: 5 / 10 / 20 mm | Stroke: 50-1200 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 75 / 75 / 50 kg | Max payload vertical: 45 / 35 / 20 kg | Repeatability: rolled ±0.01, ground ±0.008 mm | Motor: AC servo 400 W (750 W capable) | Acceleration: max 0.3 G
KGB120C-PB Body width: 120 mm | Configuration: Open type, motor folded underneath (bottom parallel) | Ball screw diameter: 15 mm (rolled or ground) | Lead: 5 / 10 / 20 mm | Stroke: 50-1200 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 75 / 75 / 50 kg | Max payload vertical: 45 / 35 / 20 kg | Repeatability: rolled ±0.01, ground ±0.008 mm | Motor: AC servo 400 W (750 W capable) | Acceleration: max 0.3 G
KGB160C-SS Body width: 160 mm | Configuration: Open type, motor in-line (straight) | Ball screw diameter: 20 mm (rolled or ground) | Lead: 5 / 10 / 20 mm | Stroke: 50-1400 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 90 / 90 / 70 kg | Max payload vertical: 70 / 50 / 35 kg | Repeatability: rolled ±0.02, ground ±0.01 mm | Motor: AC servo 750 W (400 W capable) | Acceleration: max 0.3 G
KGB160C-PB Body width: 160 mm | Configuration: Open type, motor folded underneath (bottom parallel) | Ball screw diameter: 20 mm (rolled or ground) | Lead: 5 / 10 / 20 mm | Stroke: 50-1400 mm | Max speed: 250 / 500 / 1000 mm/s | Max payload horizontal: 90 / 90 / 70 kg | Max payload vertical: 70 / 50 / 35 kg | Repeatability: rolled ±0.02, ground ±0.01 mm | Motor: AC servo 750 W (400 W capable) | Acceleration: max 0.3 G
