Hankuk Chain Apron Conveyor Chain

Hankuk Chain Apron Conveyor Chain

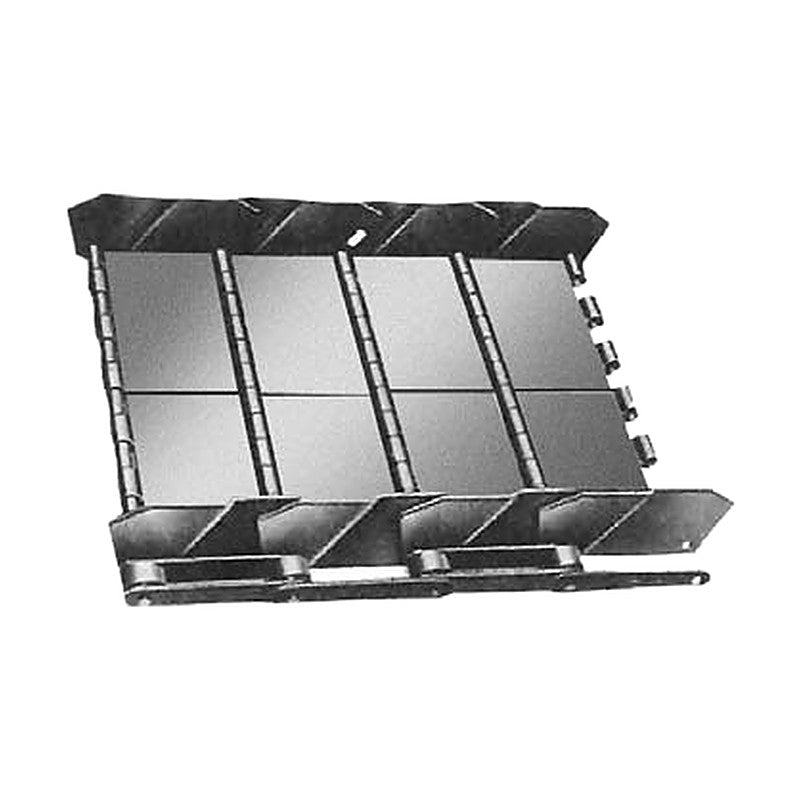

Apron conveyor chain with offset side wings and plates for conveying sand, grain and similar materials, running on standard conveyor chain and sprockets on both sides.

Key features

  • Offset side wings prevent spillage
  • Standard conveyor chain and sprockets on both sides
  • Steel or perforated hinge plates for drying and cooling
AC3075-150 Effective Apron Width A (mm): 150 | Stair Chain Center Distance B (mm): 188.4 | Chain Outer Width C (mm): 227.3 | Side Wing Height L (mm): 40 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03075-R | Pitch P (mm): 75 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 300 | Bottom Curvature Radius min r (mm): 75 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 13.0
AC3075-300 Effective Apron Width A (mm): 300 | Stair Chain Center Distance B (mm): 388.4 | Chain Outer Width C (mm): 377.3 | Side Wing Height L (mm): 40 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03075-R | Pitch P (mm): 75 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 300 | Bottom Curvature Radius min r (mm): 75 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 17.5
AC3075-450 Effective Apron Width A (mm): 450 | Stair Chain Center Distance B (mm): 488.4 | Chain Outer Width C (mm): 527.3 | Side Wing Height L (mm): 40 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03075-R | Pitch P (mm): 75 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 300 | Bottom Curvature Radius min r (mm): 75 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 22.4
AC3100-150 Effective Apron Width A (mm): 150 | Stair Chain Center Distance B (mm): 188.4 | Chain Outer Width C (mm): 227.3 | Side Wing Height L (mm): 60 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03100-R | Pitch P (mm): 100 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 450 | Bottom Curvature Radius min r (mm): 100 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 12.7
AC3100-300 Effective Apron Width A (mm): 300 | Stair Chain Center Distance B (mm): 388.4 | Chain Outer Width C (mm): 377.3 | Side Wing Height L (mm): 60 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03100-R | Pitch P (mm): 100 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 450 | Bottom Curvature Radius min r (mm): 100 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 16.9
AC3100-450 Effective Apron Width A (mm): 450 | Stair Chain Center Distance B (mm): 488.4 | Chain Outer Width C (mm): 527.3 | Side Wing Height L (mm): 60 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03100-R | Pitch P (mm): 100 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 450 | Bottom Curvature Radius min r (mm): 100 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 21.1
AC5150-150 Effective Apron Width A (mm): 150 | Stair Chain Center Distance B (mm): 200.4 | Chain Outer Width C (mm): 252.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 18.8
AC5150-300 Effective Apron Width A (mm): 300 | Stair Chain Center Distance B (mm): 350.4 | Chain Outer Width C (mm): 402.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 25.7
AC5150-450 Effective Apron Width A (mm): 450 | Stair Chain Center Distance B (mm): 500.4 | Chain Outer Width C (mm): 552.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 22.2
AC5150-600 Effective Apron Width A (mm): 600 | Stair Chain Center Distance B (mm): 650.4 | Chain Outer Width C (mm): 702.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 39.9
AC5150-750 Effective Apron Width A (mm): 750 | Stair Chain Center Distance B (mm): 800.4 | Chain Outer Width C (mm): 852.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 46.3
Conveyor ChainsHankuk Chain
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Apron Conveyor Chain

Brand Hankuk Chain·Conveyor Chains

Available part numbers (11)

AC3075-150, AC3075-300, AC3075-450, AC3100-150, AC3100-300, AC3100-450, AC5150-150, AC5150-300, AC5150-450, AC5150-600 + 1 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AC3075-150Effective Apron Width A (mm): 150 | Stair Chain Center Distance B (mm): 188.4 | Chain Outer Width C (mm): 227.3 | Side Wing Height L (mm): 40 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03075-R | Pitch P (mm): 75 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 300 | Bottom Curvature Radius min r (mm): 75 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 13.0
AC3075-300Effective Apron Width A (mm): 300 | Stair Chain Center Distance B (mm): 388.4 | Chain Outer Width C (mm): 377.3 | Side Wing Height L (mm): 40 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03075-R | Pitch P (mm): 75 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 300 | Bottom Curvature Radius min r (mm): 75 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 17.5
AC3075-450Effective Apron Width A (mm): 450 | Stair Chain Center Distance B (mm): 488.4 | Chain Outer Width C (mm): 527.3 | Side Wing Height L (mm): 40 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03075-R | Pitch P (mm): 75 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 300 | Bottom Curvature Radius min r (mm): 75 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 22.4
AC3100-150Effective Apron Width A (mm): 150 | Stair Chain Center Distance B (mm): 188.4 | Chain Outer Width C (mm): 227.3 | Side Wing Height L (mm): 60 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03100-R | Pitch P (mm): 100 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 450 | Bottom Curvature Radius min r (mm): 100 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 12.7
AC3100-300Effective Apron Width A (mm): 300 | Stair Chain Center Distance B (mm): 388.4 | Chain Outer Width C (mm): 377.3 | Side Wing Height L (mm): 60 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03100-R | Pitch P (mm): 100 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 450 | Bottom Curvature Radius min r (mm): 100 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 16.9
AC3100-450Effective Apron Width A (mm): 450 | Stair Chain Center Distance B (mm): 488.4 | Chain Outer Width C (mm): 527.3 | Side Wing Height L (mm): 60 | Hinge Plate Thickness E (mm): 2.0 | Base Chain: RF03100-R | Pitch P (mm): 100 | Roller Dia. D (mm): 30 | Plate Thickness T (mm): 3.2 | Upper Curvature Radius min R (mm): 450 | Bottom Curvature Radius min r (mm): 100 | Allowable Load kN (kgf): 8.8 (900) | Approx. Weight (kg/m): 21.1
AC5150-150Effective Apron Width A (mm): 150 | Stair Chain Center Distance B (mm): 200.4 | Chain Outer Width C (mm): 252.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 18.8
AC5150-300Effective Apron Width A (mm): 300 | Stair Chain Center Distance B (mm): 350.4 | Chain Outer Width C (mm): 402.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 25.7
AC5150-450Effective Apron Width A (mm): 450 | Stair Chain Center Distance B (mm): 500.4 | Chain Outer Width C (mm): 552.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 22.2
AC5150-600Effective Apron Width A (mm): 600 | Stair Chain Center Distance B (mm): 650.4 | Chain Outer Width C (mm): 702.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 39.9
AC5150-750Effective Apron Width A (mm): 750 | Stair Chain Center Distance B (mm): 800.4 | Chain Outer Width C (mm): 852.7 | Side Wing Height L (mm): 80 | Hinge Plate Thickness E (mm): 3.2 | Base Chain: RF05150-R | Pitch P (mm): 150 | Roller Dia. D (mm): 40 | Plate Thickness T (mm): 4.5 | Upper Curvature Radius min R (mm): 900 | Bottom Curvature Radius min r (mm): 150 | Allowable Load kN (kgf): 19.6 (2,000) | Approx. Weight (kg/m): 46.3
