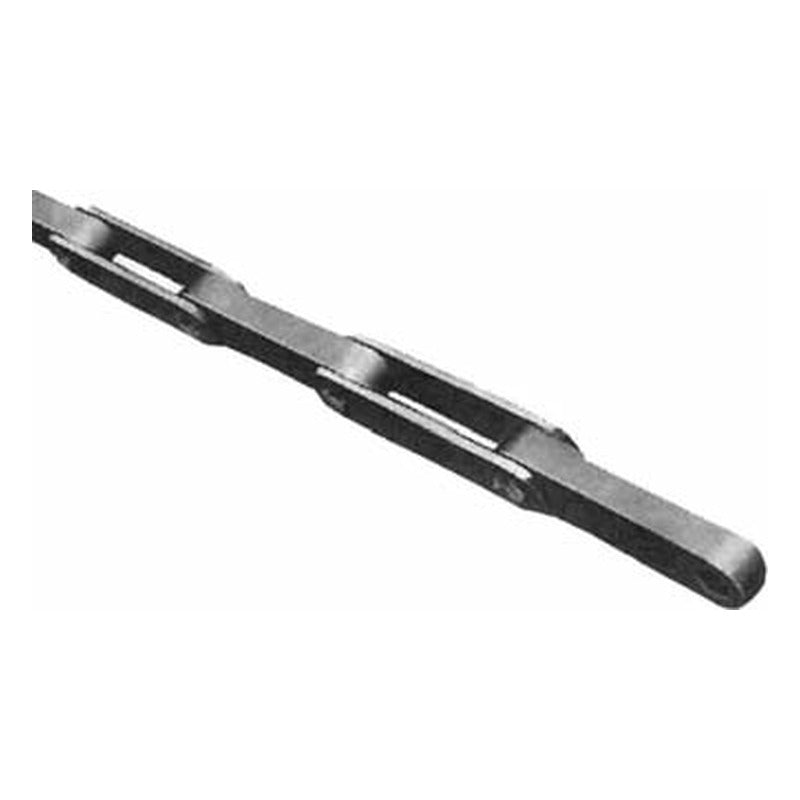

Hankuk Chain Block Chain

Hankuk Chain Block Chain

Block chain of simple structure with high strength for car traction, direct conveying and drawing machines.

Key features

  • Simple, strong structure
  • Fixing dog, slope dog, strip dog and slope strip dog attachments
NF30150 Pitch P (mm): 150 | Plate Height H (mm): 38.1 | Pin L1 (mm): 24 | Pin L2 (mm): 32 | Pin Length L3 (mm): 49 | Plate Thickness T (mm): 7.9 | Plate Width W (mm): 23.3 | Approx. Weight (kg/m): 7.0 | Avg. Tensile Strength kN (kgf): 309 (31,500)
NF30200 Pitch P (mm): 200 | Plate Height H (mm): 38.1 | Pin L1 (mm): 24 | Pin L2 (mm): 32 | Pin Length L3 (mm): 49 | Plate Thickness T (mm): 7.9 | Plate Width W (mm): 23.3 | Approx. Weight (kg/m): 6.6 | Avg. Tensile Strength kN (kgf): 309 (31,500)
NF40150 Pitch P (mm): 150 | Plate Height H (mm): 44.5 | Pin L1 (mm): 25.5 | Pin L2 (mm): 35.5 | Pin Length L3 (mm): 52 | Plate Thickness T (mm): 7.9 | Plate Width W (mm): 26.5 | Approx. Weight (kg/m): 9.0 | Avg. Tensile Strength kN (kgf): 397 (40,500)
NF40200 Pitch P (mm): 200 | Plate Height H (mm): 44.5 | Pin L1 (mm): 25.5 | Pin L2 (mm): 35.5 | Pin Length L3 (mm): 52 | Plate Thickness T (mm): 7.9 | Plate Width W (mm): 26.5 | Approx. Weight (kg/m): 8.5 | Avg. Tensile Strength kN (kgf): 397 (40,500)
NF56200 Pitch P (mm): 200 | Plate Height H (mm): 54 | Pin L1 (mm): 29.5 | Pin L2 (mm): 40.5 | Pin Length L3 (mm): 60 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 29.5 | Approx. Weight (kg/m): 12.3 | Avg. Tensile Strength kN (kgf): 554 (56,500)
NF56250 Pitch P (mm): 250 | Plate Height H (mm): 54 | Pin L1 (mm): 29.5 | Pin L2 (mm): 40.5 | Pin Length L3 (mm): 60 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 29.5 | Approx. Weight (kg/m): 12.0 | Avg. Tensile Strength kN (kgf): 554 (56,500)
NF63200 Pitch P (mm): 200 | Plate Height H (mm): 57 | Pin L1 (mm): 30.5 | Pin L2 (mm): 41.5 | Pin Length L3 (mm): 62 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 31.5 | Approx. Weight (kg/m): 13.7 | Avg. Tensile Strength kN (kgf): 618 (63,000)
NF63250 Pitch P (mm): 250 | Plate Height H (mm): 57 | Pin L1 (mm): 30.5 | Pin L2 (mm): 41.5 | Pin Length L3 (mm): 62 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 31.5 | Approx. Weight (kg/m): 13.0 | Avg. Tensile Strength kN (kgf): 618 (63,000)
NF70200 Pitch P (mm): 200 | Plate Height H (mm): 63.5 | Pin L1 (mm): 31.5 | Pin L2 (mm): 42.5 | Pin Length L3 (mm): 64 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 33.5 | Approx. Weight (kg/m): 16.2 | Avg. Tensile Strength kN (kgf): 721 (73,500)
NF70250 Pitch P (mm): 250 | Plate Height H (mm): 63.5 | Pin L1 (mm): 31.5 | Pin L2 (mm): 42.5 | Pin Length L3 (mm): 64 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 33.5 | Approx. Weight (kg/m): 15.5 | Avg. Tensile Strength kN (kgf): 721 (73,500)
NF90200 Pitch P (mm): 200 | Plate Height H (mm): 72 | Pin L1 (mm): 34.5 | Pin L2 (mm): 45.5 | Pin Length L3 (mm): 70 | Plate Thickness T (mm): 10.5 | Plate Width W (mm): 38 | Approx. Weight (kg/m): 21.0 | Avg. Tensile Strength kN (kgf): 907 (92,500)
NF90250 Pitch P (mm): 250 | Plate Height H (mm): 72 | Pin L1 (mm): 34.5 | Pin L2 (mm): 45.5 | Pin Length L3 (mm): 70 | Plate Thickness T (mm): 10.5 | Plate Width W (mm): 38 | Approx. Weight (kg/m): 20.0 | Avg. Tensile Strength kN (kgf): 907 (92,500)
NF115250 Pitch P (mm): 250 | Plate Height H (mm): 76.2 | Pin L1 (mm): 38 | Pin L2 (mm): 49 | Pin Length L3 (mm): 77 | Plate Thickness T (mm): 12.7 | Plate Width W (mm): 40 | Approx. Weight (kg/m): 25.0 | Avg. Tensile Strength kN (kgf): 1120 (114,000)
NF115300 Pitch P (mm): 300 | Plate Height H (mm): 76.2 | Pin L1 (mm): 38 | Pin L2 (mm): 49 | Pin Length L3 (mm): 77 | Plate Thickness T (mm): 12.7 | Plate Width W (mm): 40 | Approx. Weight (kg/m): 24.0 | Avg. Tensile Strength kN (kgf): 1120 (114,000)
NF140250 Pitch P (mm): 250 | Plate Height H (mm): 85 | Pin L1 (mm): 44 | Pin L2 (mm): 54 | Pin Length L3 (mm): 88 | Plate Thickness T (mm): 14 | Plate Width W (mm): 47.5 | Approx. Weight (kg/m): 32.0 | Avg. Tensile Strength kN (kgf): 1400 (143,000)
NF140300 Pitch P (mm): 300 | Plate Height H (mm): 85 | Pin L1 (mm): 44 | Pin L2 (mm): 54 | Pin Length L3 (mm): 88 | Plate Thickness T (mm): 14 | Plate Width W (mm): 47.5 | Approx. Weight (kg/m): 31.0 | Avg. Tensile Strength kN (kgf): 1400 (143,000)
NF180300 Pitch P (mm): 300 | Plate Height H (mm): 95 | Pin L1 (mm): 48.5 | Pin L2 (mm): 58.5 | Pin Length L3 (mm): 97 | Plate Thickness T (mm): 16 | Plate Width W (mm): 52.5 | Approx. Weight (kg/m): 39.0 | Avg. Tensile Strength kN (kgf): 1740 (177,500)
NF180350 Pitch P (mm): 350 | Plate Height H (mm): 95 | Pin L1 (mm): 48.5 | Pin L2 (mm): 58.5 | Pin Length L3 (mm): 97 | Plate Thickness T (mm): 16 | Plate Width W (mm): 52.5 | Approx. Weight (kg/m): 37.8 | Avg. Tensile Strength kN (kgf): 1740 (177,500)
NF210300 Pitch P (mm): 300 | Plate Height H (mm): 110 | Pin L1 (mm): 51.5 | Pin L2 (mm): 61.5 | Pin Length L3 (mm): 103 | Plate Thickness T (mm): 16 | Plate Width W (mm): 59 | Approx. Weight (kg/m): 50.0 | Avg. Tensile Strength kN (kgf): 2150 (219,500)
NF210350 Pitch P (mm): 350 | Plate Height H (mm): 110 | Pin L1 (mm): 51.5 | Pin L2 (mm): 61.5 | Pin Length L3 (mm): 103 | Plate Thickness T (mm): 16 | Plate Width W (mm): 59 | Approx. Weight (kg/m): 48.5 | Avg. Tensile Strength kN (kgf): 2150 (219,500)
NF250300 Pitch P (mm): 300 | Plate Height H (mm): 112 | Pin L1 (mm): 58.5 | Pin L2 (mm): 68.5 | Pin Length L3 (mm): 118 | Plate Thickness T (mm): 19 | Plate Width W (mm): 66 | Approx. Weight (kg/m): 58.8 | Avg. Tensile Strength kN (kgf): 2440 (248,500)
NF250350 Pitch P (mm): 350 | Plate Height H (mm): 112 | Pin L1 (mm): 58.5 | Pin L2 (mm): 68.5 | Pin Length L3 (mm): 118 | Plate Thickness T (mm): 19 | Plate Width W (mm): 66 | Approx. Weight (kg/m): 56.7 | Avg. Tensile Strength kN (kgf): 2440 (248,500)
NF280300 Pitch P (mm): 300 | Plate Height H (mm): 112 | Pin L1 (mm): 58.5 | Pin L2 (mm): 68.5 | Pin Length L3 (mm): 118 | Plate Thickness T (mm): 19 | Plate Width W (mm): 67 | Approx. Weight (kg/m): 66.0 | Avg. Tensile Strength kN (kgf): 2720 (277,500)
NF280350 Pitch P (mm): 350 | Plate Height H (mm): 112 | Pin L1 (mm): 58.5 | Pin L2 (mm): 68.5 | Pin Length L3 (mm): 118 | Plate Thickness T (mm): 19 | Plate Width W (mm): 67 | Approx. Weight (kg/m): 62.3 | Avg. Tensile Strength kN (kgf): 2720 (277,500)
Drag ChainsHankuk Chain
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Block Chain

Brand Hankuk Chain·Drag Chains

Available part numbers (24)

NF30150, NF30200, NF40150, NF40200, NF56200, NF56250, NF63200, NF63250, NF70200, NF70250 + 14 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF30150Pitch P (mm): 150 | Plate Height H (mm): 38.1 | Pin L1 (mm): 24 | Pin L2 (mm): 32 | Pin Length L3 (mm): 49 | Plate Thickness T (mm): 7.9 | Plate Width W (mm): 23.3 | Approx. Weight (kg/m): 7.0 | Avg. Tensile Strength kN (kgf): 309 (31,500)
NF30200Pitch P (mm): 200 | Plate Height H (mm): 38.1 | Pin L1 (mm): 24 | Pin L2 (mm): 32 | Pin Length L3 (mm): 49 | Plate Thickness T (mm): 7.9 | Plate Width W (mm): 23.3 | Approx. Weight (kg/m): 6.6 | Avg. Tensile Strength kN (kgf): 309 (31,500)
NF40150Pitch P (mm): 150 | Plate Height H (mm): 44.5 | Pin L1 (mm): 25.5 | Pin L2 (mm): 35.5 | Pin Length L3 (mm): 52 | Plate Thickness T (mm): 7.9 | Plate Width W (mm): 26.5 | Approx. Weight (kg/m): 9.0 | Avg. Tensile Strength kN (kgf): 397 (40,500)
NF40200Pitch P (mm): 200 | Plate Height H (mm): 44.5 | Pin L1 (mm): 25.5 | Pin L2 (mm): 35.5 | Pin Length L3 (mm): 52 | Plate Thickness T (mm): 7.9 | Plate Width W (mm): 26.5 | Approx. Weight (kg/m): 8.5 | Avg. Tensile Strength kN (kgf): 397 (40,500)
NF56200Pitch P (mm): 200 | Plate Height H (mm): 54 | Pin L1 (mm): 29.5 | Pin L2 (mm): 40.5 | Pin Length L3 (mm): 60 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 29.5 | Approx. Weight (kg/m): 12.3 | Avg. Tensile Strength kN (kgf): 554 (56,500)
NF56250Pitch P (mm): 250 | Plate Height H (mm): 54 | Pin L1 (mm): 29.5 | Pin L2 (mm): 40.5 | Pin Length L3 (mm): 60 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 29.5 | Approx. Weight (kg/m): 12.0 | Avg. Tensile Strength kN (kgf): 554 (56,500)
NF63200Pitch P (mm): 200 | Plate Height H (mm): 57 | Pin L1 (mm): 30.5 | Pin L2 (mm): 41.5 | Pin Length L3 (mm): 62 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 31.5 | Approx. Weight (kg/m): 13.7 | Avg. Tensile Strength kN (kgf): 618 (63,000)
NF63250Pitch P (mm): 250 | Plate Height H (mm): 57 | Pin L1 (mm): 30.5 | Pin L2 (mm): 41.5 | Pin Length L3 (mm): 62 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 31.5 | Approx. Weight (kg/m): 13.0 | Avg. Tensile Strength kN (kgf): 618 (63,000)
NF70200Pitch P (mm): 200 | Plate Height H (mm): 63.5 | Pin L1 (mm): 31.5 | Pin L2 (mm): 42.5 | Pin Length L3 (mm): 64 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 33.5 | Approx. Weight (kg/m): 16.2 | Avg. Tensile Strength kN (kgf): 721 (73,500)
NF70250Pitch P (mm): 250 | Plate Height H (mm): 63.5 | Pin L1 (mm): 31.5 | Pin L2 (mm): 42.5 | Pin Length L3 (mm): 64 | Plate Thickness T (mm): 9.5 | Plate Width W (mm): 33.5 | Approx. Weight (kg/m): 15.5 | Avg. Tensile Strength kN (kgf): 721 (73,500)
NF90200Pitch P (mm): 200 | Plate Height H (mm): 72 | Pin L1 (mm): 34.5 | Pin L2 (mm): 45.5 | Pin Length L3 (mm): 70 | Plate Thickness T (mm): 10.5 | Plate Width W (mm): 38 | Approx. Weight (kg/m): 21.0 | Avg. Tensile Strength kN (kgf): 907 (92,500)
NF90250Pitch P (mm): 250 | Plate Height H (mm): 72 | Pin L1 (mm): 34.5 | Pin L2 (mm): 45.5 | Pin Length L3 (mm): 70 | Plate Thickness T (mm): 10.5 | Plate Width W (mm): 38 | Approx. Weight (kg/m): 20.0 | Avg. Tensile Strength kN (kgf): 907 (92,500)
NF115250Pitch P (mm): 250 | Plate Height H (mm): 76.2 | Pin L1 (mm): 38 | Pin L2 (mm): 49 | Pin Length L3 (mm): 77 | Plate Thickness T (mm): 12.7 | Plate Width W (mm): 40 | Approx. Weight (kg/m): 25.0 | Avg. Tensile Strength kN (kgf): 1120 (114,000)
NF115300Pitch P (mm): 300 | Plate Height H (mm): 76.2 | Pin L1 (mm): 38 | Pin L2 (mm): 49 | Pin Length L3 (mm): 77 | Plate Thickness T (mm): 12.7 | Plate Width W (mm): 40 | Approx. Weight (kg/m): 24.0 | Avg. Tensile Strength kN (kgf): 1120 (114,000)
NF140250Pitch P (mm): 250 | Plate Height H (mm): 85 | Pin L1 (mm): 44 | Pin L2 (mm): 54 | Pin Length L3 (mm): 88 | Plate Thickness T (mm): 14 | Plate Width W (mm): 47.5 | Approx. Weight (kg/m): 32.0 | Avg. Tensile Strength kN (kgf): 1400 (143,000)
NF140300Pitch P (mm): 300 | Plate Height H (mm): 85 | Pin L1 (mm): 44 | Pin L2 (mm): 54 | Pin Length L3 (mm): 88 | Plate Thickness T (mm): 14 | Plate Width W (mm): 47.5 | Approx. Weight (kg/m): 31.0 | Avg. Tensile Strength kN (kgf): 1400 (143,000)
NF180300Pitch P (mm): 300 | Plate Height H (mm): 95 | Pin L1 (mm): 48.5 | Pin L2 (mm): 58.5 | Pin Length L3 (mm): 97 | Plate Thickness T (mm): 16 | Plate Width W (mm): 52.5 | Approx. Weight (kg/m): 39.0 | Avg. Tensile Strength kN (kgf): 1740 (177,500)
NF180350Pitch P (mm): 350 | Plate Height H (mm): 95 | Pin L1 (mm): 48.5 | Pin L2 (mm): 58.5 | Pin Length L3 (mm): 97 | Plate Thickness T (mm): 16 | Plate Width W (mm): 52.5 | Approx. Weight (kg/m): 37.8 | Avg. Tensile Strength kN (kgf): 1740 (177,500)
NF210300Pitch P (mm): 300 | Plate Height H (mm): 110 | Pin L1 (mm): 51.5 | Pin L2 (mm): 61.5 | Pin Length L3 (mm): 103 | Plate Thickness T (mm): 16 | Plate Width W (mm): 59 | Approx. Weight (kg/m): 50.0 | Avg. Tensile Strength kN (kgf): 2150 (219,500)
NF210350Pitch P (mm): 350 | Plate Height H (mm): 110 | Pin L1 (mm): 51.5 | Pin L2 (mm): 61.5 | Pin Length L3 (mm): 103 | Plate Thickness T (mm): 16 | Plate Width W (mm): 59 | Approx. Weight (kg/m): 48.5 | Avg. Tensile Strength kN (kgf): 2150 (219,500)
NF250300Pitch P (mm): 300 | Plate Height H (mm): 112 | Pin L1 (mm): 58.5 | Pin L2 (mm): 68.5 | Pin Length L3 (mm): 118 | Plate Thickness T (mm): 19 | Plate Width W (mm): 66 | Approx. Weight (kg/m): 58.8 | Avg. Tensile Strength kN (kgf): 2440 (248,500)
NF250350Pitch P (mm): 350 | Plate Height H (mm): 112 | Pin L1 (mm): 58.5 | Pin L2 (mm): 68.5 | Pin Length L3 (mm): 118 | Plate Thickness T (mm): 19 | Plate Width W (mm): 66 | Approx. Weight (kg/m): 56.7 | Avg. Tensile Strength kN (kgf): 2440 (248,500)
NF280300Pitch P (mm): 300 | Plate Height H (mm): 112 | Pin L1 (mm): 58.5 | Pin L2 (mm): 68.5 | Pin Length L3 (mm): 118 | Plate Thickness T (mm): 19 | Plate Width W (mm): 67 | Approx. Weight (kg/m): 66.0 | Avg. Tensile Strength kN (kgf): 2720 (277,500)
NF280350Pitch P (mm): 350 | Plate Height H (mm): 112 | Pin L1 (mm): 58.5 | Pin L2 (mm): 68.5 | Pin Length L3 (mm): 118 | Plate Thickness T (mm): 19 | Plate Width W (mm): 67 | Approx. Weight (kg/m): 62.3 | Avg. Tensile Strength kN (kgf): 2720 (277,500)
