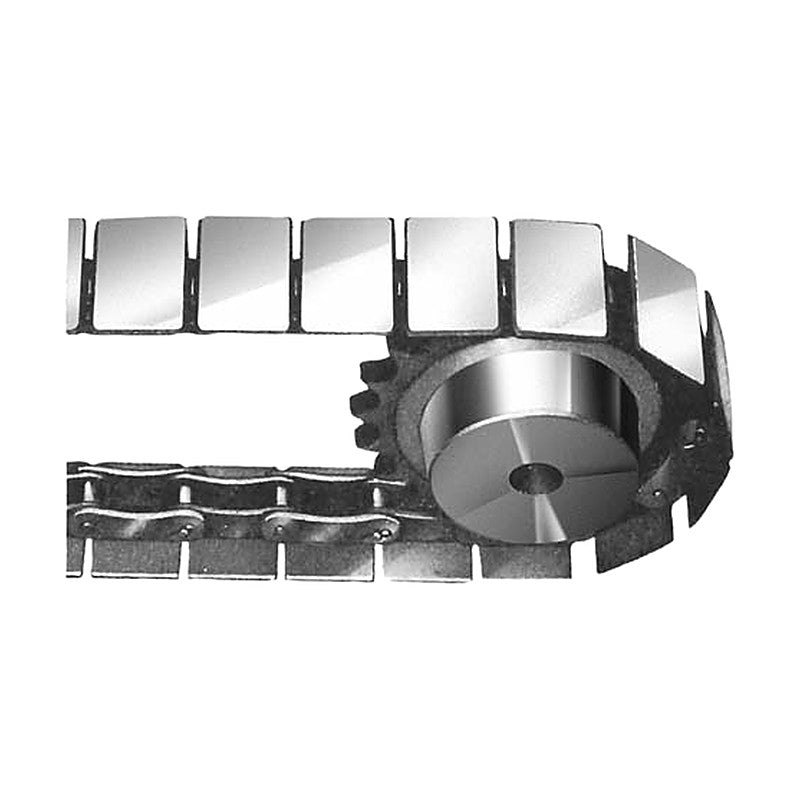

Hankuk Chain Plate-Top Chain (TP, TPW, TPWH)

Hankuk Chain Plate-Top Chain (TP, TPW, TPWH)

Plate-top chain series TP, TPW and TPWH for container conveying lines.

Key features

  • TP, TPW and TPWH types
  • Top plate widths 55 to 190.5 mm
TP-22 Top Plate Width K (mm): 57.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.75
TPW-22 Top Plate Width K (mm): 57.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.75
TPWH-22 Top Plate Width K (mm): 57.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.75
TP-24 Top Plate Width K (mm): 63.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.83
TPW-24 Top Plate Width K (mm): 63.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.83
TPWH-24 Top Plate Width K (mm): 63.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.83
TP-30 Top Plate Width K (mm): 76.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.14
TPW-30 Top Plate Width K (mm): 76.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.14
TPWH-30 Top Plate Width K (mm): 76.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.14
TP-32 Top Plate Width K (mm): 82.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.27
TPW-32 Top Plate Width K (mm): 82.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.27
TPWH-32 Top Plate Width K (mm): 82.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.27
TP-36 Top Plate Width K (mm): 95.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.57
TPW-36 Top Plate Width K (mm): 95.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.57
TPWH-36 Top Plate Width K (mm): 95.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.57
TP-40 Top Plate Width K (mm): 101.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.75
TPW-40 Top Plate Width K (mm): 101.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.75
TPWH-40 Top Plate Width K (mm): 101.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.75
TP-44 Top Plate Width K (mm): 114.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.98
TPW-44 Top Plate Width K (mm): 114.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.98
TPWH-44 Top Plate Width K (mm): 114.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.98
TP-46 Top Plate Width K (mm): 120.70 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.09
TPW-46 Top Plate Width K (mm): 120.70 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.09
TPWH-46 Top Plate Width K (mm): 120.70 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.09
TP-50 Top Plate Width K (mm): 127.00 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.30
TPW-50 Top Plate Width K (mm): 127.00 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.30
TPWH-50 Top Plate Width K (mm): 127.00 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.30
TP-60 Top Plate Width K (mm): 152.40 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.93
TPW-60 Top Plate Width K (mm): 152.40 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.93
TPWH-60 Top Plate Width K (mm): 152.40 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.93
TP-64 Top Plate Width K (mm): 165.10 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.22
TPW-64 Top Plate Width K (mm): 165.10 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.22
TPWH-64 Top Plate Width K (mm): 165.10 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.22
TP-74 Top Plate Width K (mm): 190.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.83
TPW-74 Top Plate Width K (mm): 190.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.83
TPWH-74 Top Plate Width K (mm): 190.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.83
TPW-055M Top Plate Width K (mm): 55.0 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.72
Conveyor ChainsHankuk Chain
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Plate-Top Chain (TP, TPW, TPWH)

Brand Hankuk Chain·Conveyor Chains

Available part numbers (37)

TP-22, TPW-22, TPWH-22, TP-24, TPW-24, TPWH-24, TP-30, TPW-30, TPWH-30, TP-32 + 27 more — see full table ↓

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TP-22Top Plate Width K (mm): 57.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.75
TPW-22Top Plate Width K (mm): 57.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.75
TPWH-22Top Plate Width K (mm): 57.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.75
TP-24Top Plate Width K (mm): 63.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.83
TPW-24Top Plate Width K (mm): 63.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.83
TPWH-24Top Plate Width K (mm): 63.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.83
TP-30Top Plate Width K (mm): 76.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.14
TPW-30Top Plate Width K (mm): 76.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.14
TPWH-30Top Plate Width K (mm): 76.20 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.14
TP-32Top Plate Width K (mm): 82.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.27
TPW-32Top Plate Width K (mm): 82.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.27
TPWH-32Top Plate Width K (mm): 82.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.27
TP-36Top Plate Width K (mm): 95.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.57
TPW-36Top Plate Width K (mm): 95.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.57
TPWH-36Top Plate Width K (mm): 95.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.57
TP-40Top Plate Width K (mm): 101.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.75
TPW-40Top Plate Width K (mm): 101.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.75
TPWH-40Top Plate Width K (mm): 101.60 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.75
TP-44Top Plate Width K (mm): 114.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.98
TPW-44Top Plate Width K (mm): 114.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.98
TPWH-44Top Plate Width K (mm): 114.30 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 3.98
TP-46Top Plate Width K (mm): 120.70 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.09
TPW-46Top Plate Width K (mm): 120.70 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.09
TPWH-46Top Plate Width K (mm): 120.70 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.09
TP-50Top Plate Width K (mm): 127.00 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.30
TPW-50Top Plate Width K (mm): 127.00 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.30
TPWH-50Top Plate Width K (mm): 127.00 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.30
TP-60Top Plate Width K (mm): 152.40 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.93
TPW-60Top Plate Width K (mm): 152.40 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.93
TPWH-60Top Plate Width K (mm): 152.40 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 4.93
TP-64Top Plate Width K (mm): 165.10 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.22
TPW-64Top Plate Width K (mm): 165.10 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.22
TPWH-64Top Plate Width K (mm): 165.10 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.22
TP-74Top Plate Width K (mm): 190.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.83
TPW-74Top Plate Width K (mm): 190.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.83
TPWH-74Top Plate Width K (mm): 190.50 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 5.83
TPW-055MTop Plate Width K (mm): 55.0 | Reference Dimension C (mm): 35 | Max. Allowable Tension kN (kgf): 1.18 (200) | Approx. Weight (kg/m): 2.72
