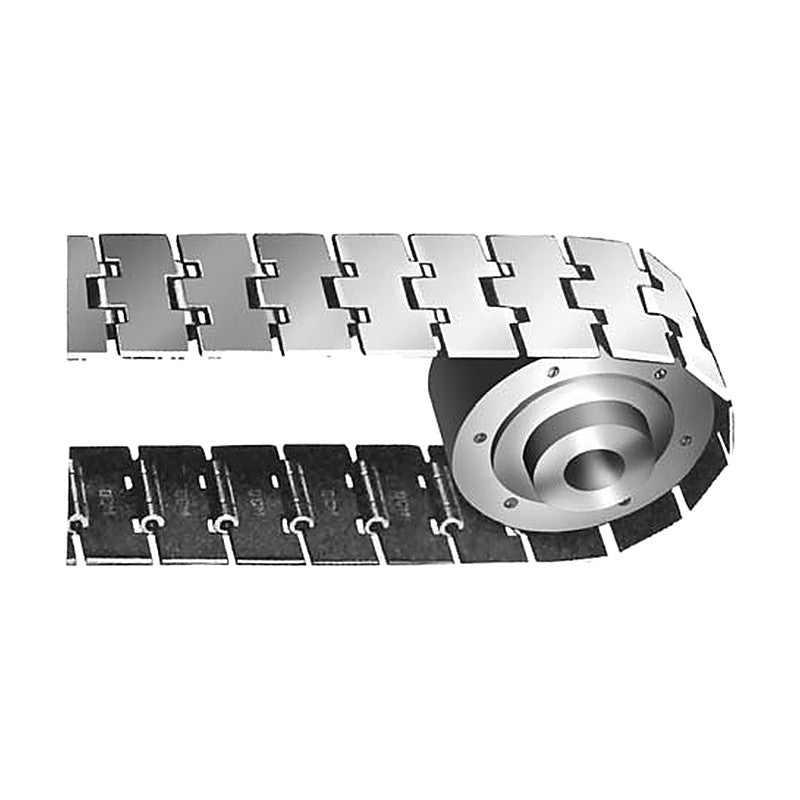

Hankuk Chain Table-Top Chain (Stainless, SS812-K)

Hankuk Chain Table-Top Chain (Stainless, SS812-K)

Stainless steel table-top chain for bottle and container conveying lines.

Key features

  • Stainless steel
  • Top plate widths 76.2 to 190.5 mm
SS812-K300 Top Plate Width K (mm): 76.2 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 2.46
SS812-K325 Top Plate Width K (mm): 82.5 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 2.60
SS812-K330 Top Plate Width K (mm): 83.8 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 2.63
SS812-K350 Top Plate Width K (mm): 88.9 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 2.74
SS812-K400 Top Plate Width K (mm): 101.6 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 3.03
SS812-K450 Top Plate Width K (mm): 114.3 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 3.32
SS812-K600 Top Plate Width K (mm): 152.4 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 4.18
SS812-K750 Top Plate Width K (mm): 190.5 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 5.04
Conveyor ChainsHankuk Chain
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Table-Top Chain (Stainless, SS812-K)

Brand Hankuk Chain·Conveyor Chains

Available part numbers (8)

SS812-K300, SS812-K325, SS812-K330, SS812-K350, SS812-K400, SS812-K450, SS812-K600, SS812-K750

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SS812-K300Top Plate Width K (mm): 76.2 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 2.46
SS812-K325Top Plate Width K (mm): 82.5 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 2.60
SS812-K330Top Plate Width K (mm): 83.8 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 2.63
SS812-K350Top Plate Width K (mm): 88.9 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 2.74
SS812-K400Top Plate Width K (mm): 101.6 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 3.03
SS812-K450Top Plate Width K (mm): 114.3 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 3.32
SS812-K600Top Plate Width K (mm): 152.4 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 4.18
SS812-K750Top Plate Width K (mm): 190.5 | Reference Dimension C (mm): 44 | Max. Allowable Tension kN (kgf): 5.8 (591) | Approx. Weight (kg/m): 5.04
