Hankuk Chain Caterpillar Drive Chain

Hankuk Chain Caterpillar Drive Chain

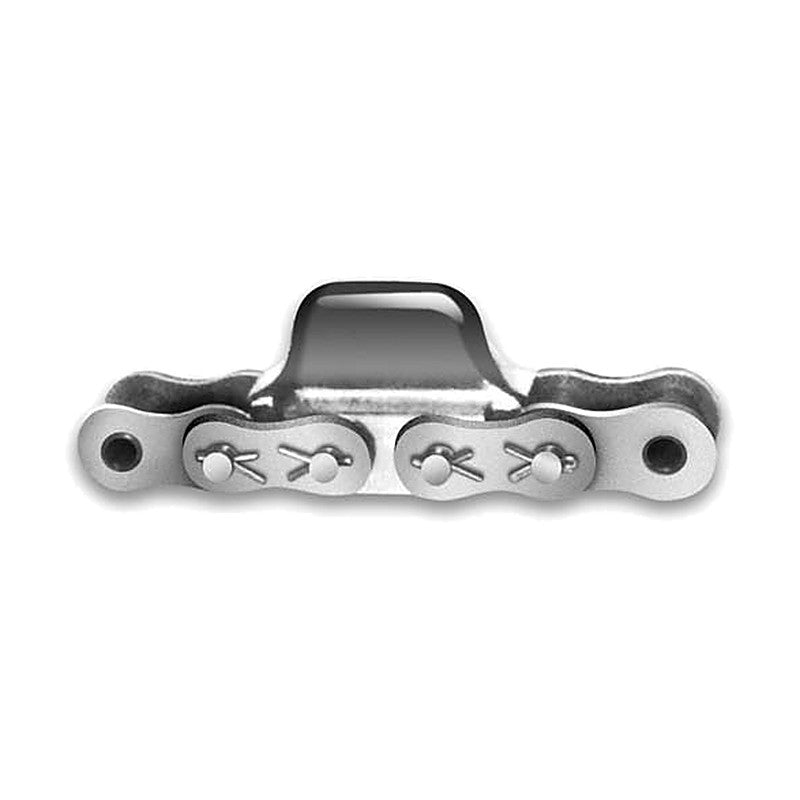

Caterpillar drive chain with forged roller link dogs of alloy steel, used in the driving part of trolley conveyors.

Key features

  • Forged roller link dogs, alloy steel
  • For trolley conveyor caterpillar drives
HC160/348 Pitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.45 | Pin L2 (mm): 37.15 | Plate Thickness T (mm): 6.3 | Plate Height H (mm): 48.2 | Caterpillar Dog C (mm): 54.6 | Caterpillar Dog E (mm): 18 | Avg. Tensile Strength kN (kgf): 270 (27,500)
HC160/458 Pitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.45 | Pin L2 (mm): 37.15 | Plate Thickness T (mm): 6.3 | Plate Height H (mm): 48.2 | Caterpillar Dog C (mm): 60 | Caterpillar Dog E (mm): 26 | Avg. Tensile Strength kN (kgf): 270 (27,500)
HC160/678 Pitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.45 | Pin L2 (mm): 37.15 | Plate Thickness T (mm): 6.3 | Plate Height H (mm): 48.2 | Caterpillar Dog C (mm): 78 | Caterpillar Dog E (mm): 32 | Avg. Tensile Strength kN (kgf): 270 (27,500)
Drive ChainsHankuk Chain
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hankuk Chain Caterpillar Drive Chain

Brand Hankuk Chain·Drive Chains

Available part numbers (3)

HC160/348, HC160/458, HC160/678

How to order

Send the Hankuk Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC160/348Pitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.45 | Pin L2 (mm): 37.15 | Plate Thickness T (mm): 6.3 | Plate Height H (mm): 48.2 | Caterpillar Dog C (mm): 54.6 | Caterpillar Dog E (mm): 18 | Avg. Tensile Strength kN (kgf): 270 (27,500)
HC160/458Pitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.45 | Pin L2 (mm): 37.15 | Plate Thickness T (mm): 6.3 | Plate Height H (mm): 48.2 | Caterpillar Dog C (mm): 60 | Caterpillar Dog E (mm): 26 | Avg. Tensile Strength kN (kgf): 270 (27,500)
HC160/678Pitch P (mm): 50.8 | Roller Link Width W (mm): 31.75 | Roller Dia. Dr (mm): 28.58 | Pin Dia. d (mm): 14.29 | Pin L1 (mm): 32.45 | Pin L2 (mm): 37.15 | Plate Thickness T (mm): 6.3 | Plate Height H (mm): 48.2 | Caterpillar Dog C (mm): 78 | Caterpillar Dog E (mm): 32 | Avg. Tensile Strength kN (kgf): 270 (27,500)
