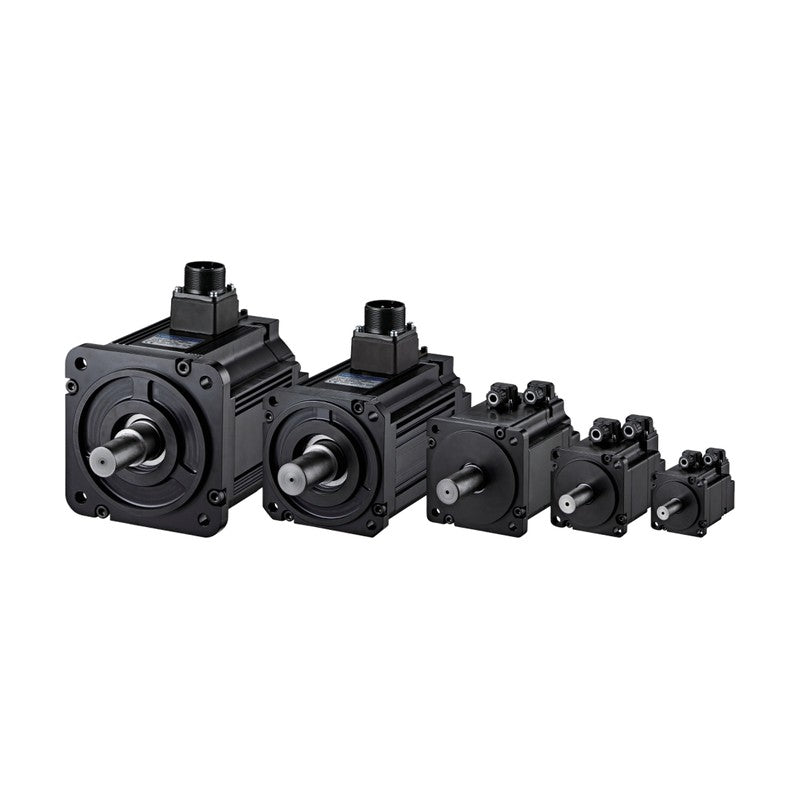

HIGEN RNM FMA KN/KF Series AC Servo Motors (Mid-Speed, Standard, 200V)

HIGEN RNM FMA KN/KF Series AC Servo Motors (Mid-Speed, Standard, 200V)

HIGEN RNM FMA KN/KF series mid-speed, standard AC servo motors for 200V systems, offered with incremental or 17/33-bit serial encoders and optional holding brake.

Key features

  • Mid-speed, standard KN/KF series of the FMA 200V AC servo motor line
  • Encoder choice: 2,000 ppr incremental (A) or 17/33-bit serial 131,072 ppr (P)
  • Flange sizes 80, 130, 180 mm square
  • Rated output 300 W to 7000 W
  • Optional holding brake (DC24V / DC90V by frame), shaft key and oil seal
  • Matched to HIGEN RNM FDA7000 / EDA7000 servo drives

Specifications

Series FMA KN/KF (mid-speed, standard)
Voltage class 200V
Matching drive FDA7000 / EDA7000
Speed (rated/max) 2000/3000 rpm
Encoder options A = incremental 2,000 ppr; P = serial 17/33-bit 131,072 ppr
Brake options 0 none; 1 DC24V (fl. 40-80) / DC90V (fl. 130-220); 2 DC24V (fl. 130-220); none for 250/280
Shaft / oil seal (in codes) B = straight with key; oil seal 0 (1 = option)
Source HIGEN RNM Servo System Catalog (KR) 2024, p. 54, 57-61, 68-77
FMAKN03-AB00 Output: 300 W | Flange: 80 mm sq. | Rated torque: 1.43 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN03-AB10 Output: 300 W | Flange: 80 mm sq. | Rated torque: 1.43 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN03-PB00 Output: 300 W | Flange: 80 mm sq. | Rated torque: 1.43 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN03-PB10 Output: 300 W | Flange: 80 mm sq. | Rated torque: 1.43 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN05-AB00 Output: 450 W | Flange: 80 mm sq. | Rated torque: 2.15 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN05-AB10 Output: 450 W | Flange: 80 mm sq. | Rated torque: 2.15 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN05-PB00 Output: 450 W | Flange: 80 mm sq. | Rated torque: 2.15 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN05-PB10 Output: 450 W | Flange: 80 mm sq. | Rated torque: 2.15 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN06-AB00 Output: 550 W | Flange: 80 mm sq. | Rated torque: 2.57 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN06-AB10 Output: 550 W | Flange: 80 mm sq. | Rated torque: 2.57 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN06-PB00 Output: 550 W | Flange: 80 mm sq. | Rated torque: 2.57 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN06-PB10 Output: 550 W | Flange: 80 mm sq. | Rated torque: 2.57 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN07-AB00 Output: 650 W | Flange: 80 mm sq. | Rated torque: 3.04 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN07-AB10 Output: 650 W | Flange: 80 mm sq. | Rated torque: 3.04 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN07-PB00 Output: 650 W | Flange: 80 mm sq. | Rated torque: 3.04 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN07-PB10 Output: 650 W | Flange: 80 mm sq. | Rated torque: 3.04 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN06A-AB00 Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN06A-AB10 Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN06A-AB20 Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN06A-PB00 Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN06A-PB10 Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN06A-PB20 Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN11-AB00 Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN11-AB10 Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN11-AB20 Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN11-PB00 Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN11-PB10 Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN11-PB20 Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN16-AB00 Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN16-AB10 Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN16-AB20 Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN16-PB00 Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN16-PB10 Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN16-PB20 Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN22-AB00 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN22-AB10 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN22-AB20 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN22-PB00 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN22-PB10 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN22-PB20 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN22A-AB00 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN22A-AB10 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN22A-AB20 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN22A-PB00 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN22A-PB10 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN22A-PB20 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN35-AB00 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN35-AB10 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN35-AB20 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN35-PB00 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN35-PB10 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN35-PB20 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN55-AB00 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN55-AB10 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN55-AB20 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN55-PB00 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN55-PB10 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN55-PB20 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN70-AB00 Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN70-AB10 Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN70-AB20 Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN70-PB00 Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN70-PB10 Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN70-PB20 Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKF22-AB00 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKF22-AB10 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKF22-AB20 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKF22-PB00 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKF22-PB10 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKF22-PB20 Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKF35-AB00 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKF35-AB10 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKF35-AB20 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKF35-PB00 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKF35-PB10 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKF35-PB20 Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKF50-AB00 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKF50-AB10 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKF50-AB20 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKF50-PB00 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKF50-PB10 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKF50-PB20 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
Servo MotorsHIGEN RNM
82 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM FMA KN/KF Series AC Servo Motors (Mid-Speed, Standard, 200V)

Brand HIGEN RNM·Servo Motors

Available part numbers (82)

FMAKN03-AB00, FMAKN03-AB10, FMAKN03-PB00, FMAKN03-PB10, FMAKN05-AB00, FMAKN05-AB10, FMAKN05-PB00, FMAKN05-PB10, FMAKN06-AB00, FMAKN06-AB10 + 72 more — see full table ↓

How to order

Send the HIGEN RNM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMAKN03-AB00Output: 300 W | Flange: 80 mm sq. | Rated torque: 1.43 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN03-AB10Output: 300 W | Flange: 80 mm sq. | Rated torque: 1.43 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN03-PB00Output: 300 W | Flange: 80 mm sq. | Rated torque: 1.43 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN03-PB10Output: 300 W | Flange: 80 mm sq. | Rated torque: 1.43 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN05-AB00Output: 450 W | Flange: 80 mm sq. | Rated torque: 2.15 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN05-AB10Output: 450 W | Flange: 80 mm sq. | Rated torque: 2.15 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN05-PB00Output: 450 W | Flange: 80 mm sq. | Rated torque: 2.15 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN05-PB10Output: 450 W | Flange: 80 mm sq. | Rated torque: 2.15 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN06-AB00Output: 550 W | Flange: 80 mm sq. | Rated torque: 2.57 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN06-AB10Output: 550 W | Flange: 80 mm sq. | Rated torque: 2.57 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN06-PB00Output: 550 W | Flange: 80 mm sq. | Rated torque: 2.57 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN06-PB10Output: 550 W | Flange: 80 mm sq. | Rated torque: 2.57 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN07-AB00Output: 650 W | Flange: 80 mm sq. | Rated torque: 3.04 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN07-AB10Output: 650 W | Flange: 80 mm sq. | Rated torque: 3.04 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN07-PB00Output: 650 W | Flange: 80 mm sq. | Rated torque: 3.04 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN07-PB10Output: 650 W | Flange: 80 mm sq. | Rated torque: 3.04 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN06A-AB00Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN06A-AB10Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN06A-AB20Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN06A-PB00Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN06A-PB10Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN06A-PB20Output: 600 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN11-AB00Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN11-AB10Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN11-AB20Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN11-PB00Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN11-PB10Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN11-PB20Output: 1100 W | Flange: 130 mm sq. | Rated torque: 5.25 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN16-AB00Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN16-AB10Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN16-AB20Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN16-PB00Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN16-PB10Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN16-PB20Output: 1600 W | Flange: 130 mm sq. | Rated torque: 7.64 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN22-AB00Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN22-AB10Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN22-AB20Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN22-PB00Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN22-PB10Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN22-PB20Output: 2200 W | Flange: 130 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN22A-AB00Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN22A-AB10Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN22A-AB20Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN22A-PB00Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN22A-PB10Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN22A-PB20Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.49 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN35-AB00Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN35-AB10Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN35-AB20Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN35-PB00Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN35-PB10Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN35-PB20Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.67 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN55-AB00Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN55-AB10Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN55-AB20Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN55-PB00Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN55-PB10Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN55-PB20Output: 5500 W | Flange: 180 mm sq. | Rated torque: 26.18 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKN70-AB00Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKN70-AB10Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKN70-AB20Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKN70-PB00Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKN70-PB10Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKN70-PB20Output: 7000 W | Flange: 180 mm sq. | Rated torque: 33.4 N·m | Drive: FDA7075 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKF22-AB00Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKF22-AB10Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKF22-AB20Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKF22-PB00Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKF22-PB10Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKF22-PB20Output: 2200 W | Flange: 180 mm sq. | Rated torque: 10.5 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKF35-AB00Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKF35-AB10Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKF35-AB20Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKF35-PB00Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKF35-PB10Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKF35-PB20Output: 3500 W | Flange: 180 mm sq. | Rated torque: 16.7 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMAKF50-AB00Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: None
FMAKF50-AB10Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMAKF50-AB20Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMAKF50-PB00Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMAKF50-PB10Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMAKF50-PB20Output: 5000 W | Flange: 180 mm sq. | Rated torque: 23.9 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
