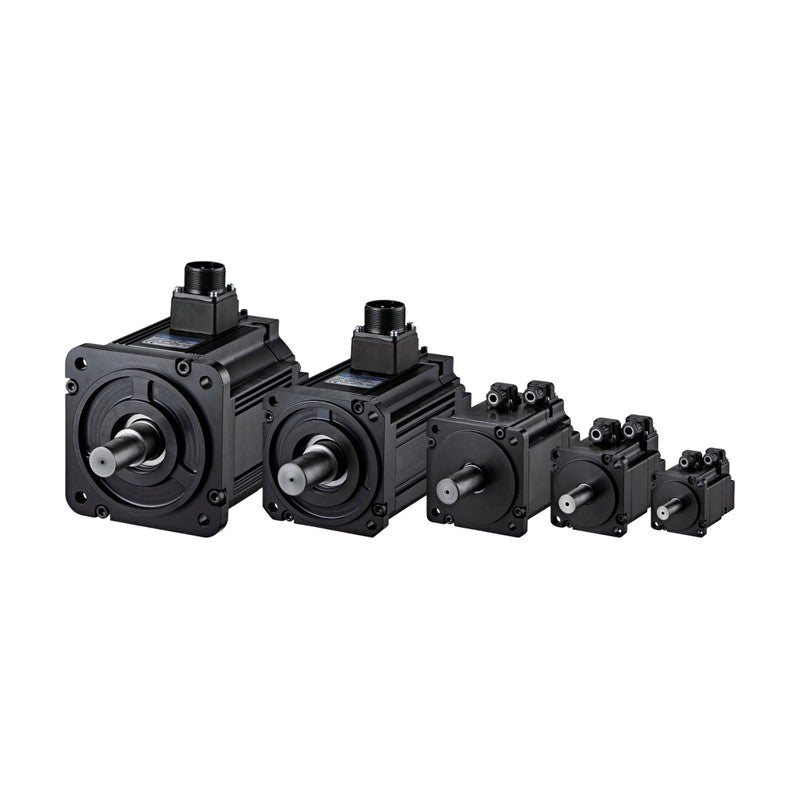

HIGEN RNM FMA LN/LF AC Servo Motors (Low-Speed, High Torque, 200V)

HIGEN RNM FMA LN/LF AC Servo Motors (Low-Speed, High Torque, 200V)

HIGEN RNM FMA LN/LF series low-speed, high-torque AC servo motors for 200V systems, offered with incremental or 17/33-bit serial encoders and optional holding brake.

Key features

  • Low-speed, high-torque LN/LF series of the FMA 200V AC servo motor line
  • Encoder choice: 2,000 ppr incremental (A) or 17/33-bit serial 131,072 ppr (P)
  • Flange sizes 130, 180 mm square
  • Rated output 300 W to 5500 W
  • Optional holding brake (DC24V / DC90V by frame), shaft key and oil seal
  • Matched to HIGEN RNM FDA7000 / EDA7000 servo drives

Specifications

Series FMA LN/LF (low-speed, high-torque)
Voltage class 200V
Matching drive FDA7000 / EDA7000
Speed (rated/max) 1000/2000 rpm
Encoder options A = incremental 2,000 ppr; P = serial 17/33-bit 131,072 ppr
Brake options 0 none; 1 DC24V (fl. 40-80) / DC90V (fl. 130-220); 2 DC24V (fl. 130-220); none for 250/280
Shaft / oil seal (in codes) B = straight with key; oil seal 0 (1 = option)
Source HIGEN RNM Servo System Catalog (KR) 2024, p. 54, 60-63, 68-77
FMALN03-AB00 Output: 300 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: None
FMALN03-AB10 Output: 300 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALN03-AB20 Output: 300 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7004 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALN03-PB00 Output: 300 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALN03-PB10 Output: 300 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALN03-PB20 Output: 300 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Drive: FDA7004 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALN06-AB00 Output: 600 W | Flange: 130 mm sq. | Rated torque: 5.72 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: None
FMALN06-AB10 Output: 600 W | Flange: 130 mm sq. | Rated torque: 5.72 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALN06-AB20 Output: 600 W | Flange: 130 mm sq. | Rated torque: 5.72 N·m | Drive: FDA7005 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALN06-PB00 Output: 600 W | Flange: 130 mm sq. | Rated torque: 5.72 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALN06-PB10 Output: 600 W | Flange: 130 mm sq. | Rated torque: 5.72 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALN06-PB20 Output: 600 W | Flange: 130 mm sq. | Rated torque: 5.72 N·m | Drive: FDA7005 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALN09-AB00 Output: 900 W | Flange: 130 mm sq. | Rated torque: 8.6 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: None
FMALN09-AB10 Output: 900 W | Flange: 130 mm sq. | Rated torque: 8.6 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALN09-AB20 Output: 900 W | Flange: 130 mm sq. | Rated torque: 8.6 N·m | Drive: FDA7010 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALN09-PB00 Output: 900 W | Flange: 130 mm sq. | Rated torque: 8.6 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALN09-PB10 Output: 900 W | Flange: 130 mm sq. | Rated torque: 8.6 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALN09-PB20 Output: 900 W | Flange: 130 mm sq. | Rated torque: 8.6 N·m | Drive: FDA7010 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALN12-AB00 Output: 1200 W | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: None
FMALN12-AB10 Output: 1200 W | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALN12-AB20 Output: 1200 W | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALN12-PB00 Output: 1200 W | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALN12-PB10 Output: 1200 W | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALN12-PB20 Output: 1200 W | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALN12A-AB00 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: None
FMALN12A-AB10 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALN12A-AB20 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALN12A-PB00 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALN12A-PB10 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALN12A-PB20 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALN20-AB00 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: None
FMALN20-AB10 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALN20-AB20 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALN20-PB00 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALN20-PB10 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALN20-PB20 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALN30-AB00 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: None
FMALN30-AB10 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALN30-AB20 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALN30-PB00 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALN30-PB10 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALN30-PB20 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALN40-AB00 Output: 4000 W | Flange: 180 mm sq. | Rated torque: 38.2 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: None
FMALN40-AB10 Output: 4000 W | Flange: 180 mm sq. | Rated torque: 38.2 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALN40-AB20 Output: 4000 W | Flange: 180 mm sq. | Rated torque: 38.2 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALN40-PB00 Output: 4000 W | Flange: 180 mm sq. | Rated torque: 38.2 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALN40-PB10 Output: 4000 W | Flange: 180 mm sq. | Rated torque: 38.2 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALN40-PB20 Output: 4000 W | Flange: 180 mm sq. | Rated torque: 38.2 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALN55-AB00 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: None
FMALN55-AB10 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALN55-AB20 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Drive: FDA7045 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALN55-PB00 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALN55-PB10 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALN55-PB20 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Drive: FDA7045 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALF12-AB00 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: None
FMALF12-AB10 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALF12-AB20 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALF12-PB00 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALF12-PB10 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALF12-PB20 Output: 1200 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Drive: FDA7015 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALF20-AB00 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: None
FMALF20-AB10 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALF20-AB20 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALF20-PB00 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALF20-PB10 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALF20-PB20 Output: 2000 W | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Drive: FDA7020 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMALF30-AB00 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.4 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: None
FMALF30-AB10 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.4 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMALF30-AB20 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.4 N·m | Drive: FDA7030 | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMALF30-PB00 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.4 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMALF30-PB10 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.4 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMALF30-PB20 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 28.4 N·m | Drive: FDA7030 | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
Servo MotorsHIGEN RNM
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM FMA LN/LF AC Servo Motors (Low-Speed, High Torque, 200V)

Brand HIGEN RNM·Servo Motors

Available part numbers (72)

FMALN03-AB00, FMALN03-AB10, FMALN03-AB20, FMALN03-PB00, FMALN03-PB10, FMALN03-PB20, FMALN06-AB00, FMALN06-AB10, FMALN06-AB20, FMALN06-PB00 + 62 more — see full table ↓
