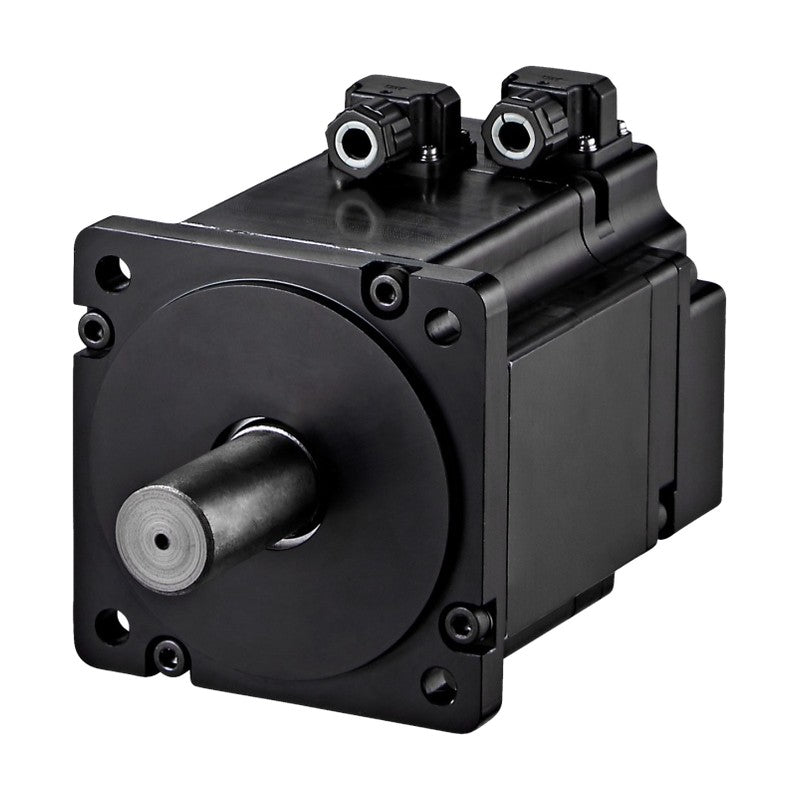

HIGEN RNM FMC Series AC Servo Motors (23-bit, 50 W-2.5 kW, 200V)

HIGEN RNM FMC Series AC Servo Motors (23-bit, 50 W-2.5 kW, 200V)

HIGEN RNM FMC series compact AC servo motors with 23-bit serial absolute/incremental encoders, designed for the H1 servo drive in 40-130 mm flange sizes from 50 W to 2.5 kW.

Key features

  • 23-bit serial encoder, 8,388,608 pulses per revolution (ABS/INC)
  • PN series: 3000 rpm rated / 6000 rpm max; QN series: 1500/3000 rpm
  • Compact body - e.g. 400 W motor 89 mm long vs 135 mm for FDA7000 type
  • Flange sizes 40, 60, 80, 100 and 130 mm with pin-type connectors
  • Optional DC24V holding brake, shaft key and oil seal
  • 100 mm flange models (1.5/2.0/2.5 kW) added to the H1 line-up

Specifications

Series FMC (PN high-speed / QN low-speed)
Voltage class 200V (220V AC)
Matching drive HIGEN RNM H1 series (H1-ST / H1-EC)
Encoder Serial 23-bit (8,388,608 ppr)
Allowable load inertia 15x rotor inertia or less
Shaft (in codes) A = straight, no key (B = key, option)
Oil seal Code 0 none (1 = oil seal, option)
Source HIGEN RNM Servo System Catalog (KR) 2024, p. 46-53
FMCPNZ5-SA00 Output: 50 W | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: None
FMCPNZ5-SA10 Output: 50 W | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: DC24V
FMCPN01-SA00 Output: 100 W | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: None
FMCPN01-SA10 Output: 100 W | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: DC24V
FMCPN02-SA00 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: None
FMCPN02-SA10 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: DC24V
FMCPN04-SA00 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: None
FMCPN04-SA10 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: DC24V
FMCPN06-SA00 Output: 600 W | Flange: 60 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: None
FMCPN06-SA10 Output: 600 W | Flange: 60 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: DC24V
FMCPN06A-SA00 Output: 600 W | Flange: 80 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: None
FMCPN06A-SA10 Output: 600 W | Flange: 80 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: DC24V
FMCPN08-SA00 Output: 750 W | Flange: 80 mm sq. | Rated torque: 2.39 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: None
FMCPN08-SA10 Output: 750 W | Flange: 80 mm sq. | Rated torque: 2.39 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: DC24V
FMCPN15-SA00 Output: 1500 W | Flange: 100 mm sq. | Rated torque: 4.78 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-020 | Brake: None
FMCPN15-SA10 Output: 1500 W | Flange: 100 mm sq. | Rated torque: 4.78 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-020 | Brake: DC24V
FMCPN20-SA00 Output: 2000 W | Flange: 100 mm sq. | Rated torque: 6.37 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-020 | Brake: None
FMCPN20-SA10 Output: 2000 W | Flange: 100 mm sq. | Rated torque: 6.37 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-020 | Brake: DC24V
FMCPN25-SA00 Output: 2500 W | Flange: 100 mm sq. | Rated torque: 7.96 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-050 | Brake: None
FMCPN25-SA10 Output: 2500 W | Flange: 100 mm sq. | Rated torque: 7.96 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-050 | Brake: DC24V
FMCQN09-SA00 Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-010 | Brake: None
FMCQN09-SA10 Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-010 | Brake: DC24V
FMCQN13-SA00 Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.28 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-020 | Brake: None
FMCQN13-SA10 Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.28 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-020 | Brake: DC24V
FMCQN18-SA00 Output: 1800 W | Flange: 130 mm sq. | Rated torque: 11.46 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-020 | Brake: None
FMCQN18-SA10 Output: 1800 W | Flange: 130 mm sq. | Rated torque: 11.46 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-020 | Brake: DC24V
Servo MotorsHIGEN RNM
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM FMC Series AC Servo Motors (23-bit, 50 W-2.5 kW, 200V)

Brand HIGEN RNM·Servo Motors

Available part numbers (26)

FMCPNZ5-SA00, FMCPNZ5-SA10, FMCPN01-SA00, FMCPN01-SA10, FMCPN02-SA00, FMCPN02-SA10, FMCPN04-SA00, FMCPN04-SA10, FMCPN06-SA00, FMCPN06-SA10 + 16 more — see full table ↓

How to order

Send the HIGEN RNM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMCPNZ5-SA00Output: 50 W | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: None
FMCPNZ5-SA10Output: 50 W | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: DC24V
FMCPN01-SA00Output: 100 W | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: None
FMCPN01-SA10Output: 100 W | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: DC24V
FMCPN02-SA00Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: None
FMCPN02-SA10Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: DC24V
FMCPN04-SA00Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: None
FMCPN04-SA10Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-004 | Brake: DC24V
FMCPN06-SA00Output: 600 W | Flange: 60 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: None
FMCPN06-SA10Output: 600 W | Flange: 60 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: DC24V
FMCPN06A-SA00Output: 600 W | Flange: 80 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: None
FMCPN06A-SA10Output: 600 W | Flange: 80 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: DC24V
FMCPN08-SA00Output: 750 W | Flange: 80 mm sq. | Rated torque: 2.39 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: None
FMCPN08-SA10Output: 750 W | Flange: 80 mm sq. | Rated torque: 2.39 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-010 | Brake: DC24V
FMCPN15-SA00Output: 1500 W | Flange: 100 mm sq. | Rated torque: 4.78 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-020 | Brake: None
FMCPN15-SA10Output: 1500 W | Flange: 100 mm sq. | Rated torque: 4.78 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-020 | Brake: DC24V
FMCPN20-SA00Output: 2000 W | Flange: 100 mm sq. | Rated torque: 6.37 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-020 | Brake: None
FMCPN20-SA10Output: 2000 W | Flange: 100 mm sq. | Rated torque: 6.37 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-020 | Brake: DC24V
FMCPN25-SA00Output: 2500 W | Flange: 100 mm sq. | Rated torque: 7.96 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-050 | Brake: None
FMCPN25-SA10Output: 2500 W | Flange: 100 mm sq. | Rated torque: 7.96 N·m | Speed (rated/max): 3000/6000 rpm | Drive: H1-050 | Brake: DC24V
FMCQN09-SA00Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-010 | Brake: None
FMCQN09-SA10Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-010 | Brake: DC24V
FMCQN13-SA00Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.28 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-020 | Brake: None
FMCQN13-SA10Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.28 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-020 | Brake: DC24V
FMCQN18-SA00Output: 1800 W | Flange: 130 mm sq. | Rated torque: 11.46 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-020 | Brake: None
FMCQN18-SA10Output: 1800 W | Flange: 130 mm sq. | Rated torque: 11.46 N·m | Speed (rated/max): 1500/3000 rpm | Drive: H1-020 | Brake: DC24V
