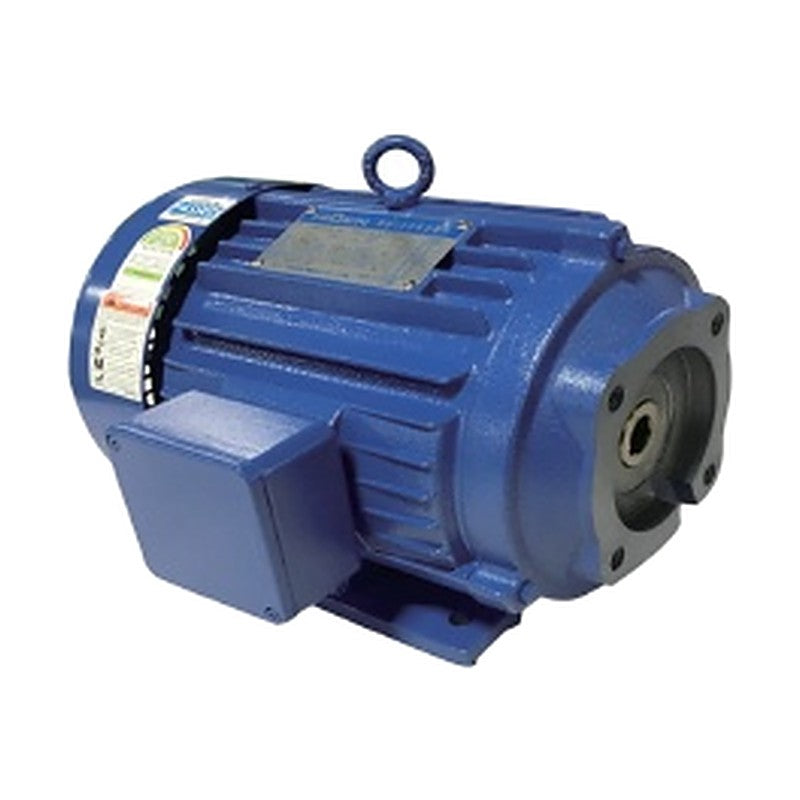

HIGEN RNM HK Series Hydraulic Unit Motors (IE1 / IE2 / IE3)

HIGEN RNM HK Series Hydraulic Unit Motors (IE1 / IE2 / IE3)

HIGEN RNM HK series hydraulic power-unit motors with direct pump-mounting end bracket, 1 to 10 HP (0.75-7.5 kW) in IE1, IE2 and IE3 efficiency versions.

Key features

  • Direct-coupled hydraulic pump mounting on the front end bracket (E/B types A, B, C, D)
  • Choice of pump pilot diameter, tapped holes and hollow/solid shaft fit per model
  • Available in IE1, IE2 and IE3 efficiency classes for each mounting variant
  • Built to Korean Industrial Standards (KS); non-standard designs available on request
  • Meets minimum efficiency regulations of the Korean Energy Use Rationalization Act

Specifications

Type Three-phase hydraulic unit motor
Output range 1-10 HP (0.75-7.5 kW)
Frame range 80-132M
Efficiency classes IE1 / IE2 / IE3
Bearings 6206ZZ-6209ZZ / 6203ZZ-6206ZZ
Standard KS
Source HIGEN RNM Low Voltage Motor catalog, p. 29
I01HK1DUDP Efficiency: IE1 | Output: 1 HP (0.75 kW) | Frame: 80 | Pump pilot: Ø50.9 mm, 4-M8 | End bracket: Type A | Shaft: Ø12.7 mm
I01HK1HDUP Efficiency: IE2 | Output: 1 HP (0.75 kW) | Frame: 80 | Pump pilot: Ø50.9 mm, 4-M8 | End bracket: Type A | Shaft: Ø12.7 mm
P01HK1DUDP Efficiency: IE3 | Output: 1 HP (0.75 kW) | Frame: 80 | Pump pilot: Ø50.9 mm, 4-M8 | End bracket: Type A | Shaft: Ø12.7 mm
I01HK1DUTS Efficiency: IE1 | Output: 1 HP (0.75 kW) | Frame: 80 | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type A | Shaft: Ø15.88 mm
I01HK1HDUS Efficiency: IE2 | Output: 1 HP (0.75 kW) | Frame: 80 | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type A | Shaft: Ø15.88 mm
P01HK1DUTS Efficiency: IE3 | Output: 1 HP (0.75 kW) | Frame: 80 | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type A | Shaft: Ø15.88 mm
I01HK1DUD Efficiency: IE1 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø70 mm, 2-M8 | End bracket: Type D | Shaft: Ø16.00 mm
I01HK1HDUD Efficiency: IE2 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø70 mm, 2-M8 | End bracket: Type D | Shaft: Ø16.00 mm
P01HK1DUD Efficiency: IE3 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø70 mm, 2-M8 | End bracket: Type D | Shaft: Ø16.00 mm
P01HK7DUD Efficiency: IE3 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø70 mm, 2-M8 | End bracket: Type D | Shaft: Ø16.00 mm
I01HK1DUS Efficiency: IE1 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø12.7 mm
I01HK1DUSH Efficiency: IE2 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø12.7 mm
P01HK1DUS Efficiency: IE3 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø12.7 mm
P01HK7DUS Efficiency: IE3 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø12.7 mm
I01HK1DUP Efficiency: IE1 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø16 mm
I01HK1DUPH Efficiency: IE2 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø16 mm
P01HK1DUP Efficiency: IE3 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø16 mm
P01HK7DUP Efficiency: IE3 | Output: 1 HP (0.75 kW) | Frame: 90S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø16 mm
I02HK1DUP Efficiency: IE1 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø95.05 mm, 4-M10 | End bracket: Type C | Shaft: Ø19.05 mm
I02HK1HDUP Efficiency: IE2 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø95.05 mm, 4-M10 | End bracket: Type C | Shaft: Ø19.05 mm
P02HK1DUP Efficiency: IE3 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø95.05 mm, 4-M10 | End bracket: Type C | Shaft: Ø19.05 mm
I02HK1DUS Efficiency: IE1 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type B | Shaft: Ø19.05 mm
I02HK1HDUS Efficiency: IE2 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type B | Shaft: Ø19.05 mm
P02HK1DUS Efficiency: IE3 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type B | Shaft: Ø19.05 mm
I02HK1DUK Efficiency: IE1 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø15.88 mm
I02HK1HDUK Efficiency: IE2 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø15.88 mm
P02HK1DUK Efficiency: IE3 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø15.88 mm
I02HK1DUDP Efficiency: IE1 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø50.9 mm, 2-M8 | End bracket: Type D | Shaft: Ø12.7 mm
I02HK1DDPH Efficiency: IE2 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø50.9 mm, 2-M8 | End bracket: Type D | Shaft: Ø12.7 mm
P02HK1DUDP Efficiency: IE3 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø50.9 mm, 2-M8 | End bracket: Type D | Shaft: Ø12.7 mm
I02HK1DUD Efficiency: IE1 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø16 mm
I02HK1HDUD Efficiency: IE2 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø16 mm
P02HK1DUD Efficiency: IE3 | Output: 2 HP (1.5 kW) | Frame: 90L | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type D | Shaft: Ø16 mm
I03HK6DUP Efficiency: IE1 | Output: 3 HP (2.2 kW) | Frame: 100L | Pump pilot: Ø95.05 mm, 4-M10 | End bracket: Type C | Shaft: Ø19.05 mm
I03HK6HDUP Efficiency: IE2 | Output: 3 HP (2.2 kW) | Frame: 100L | Pump pilot: Ø95.05 mm, 4-M10 | End bracket: Type C | Shaft: Ø19.05 mm
P03HK6DUP Efficiency: IE3 | Output: 3 HP (2.2 kW) | Frame: 100L | Pump pilot: Ø95.05 mm, 4-M10 | End bracket: Type C | Shaft: Ø19.05 mm
I03HK1DUK Efficiency: IE1 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type A | Shaft: Ø15.88 mm
I03HK1HDUK Efficiency: IE2 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type A | Shaft: Ø15.88 mm
P03HK1DUK Efficiency: IE3 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type A | Shaft: Ø15.88 mm
I03HK1DUDP Efficiency: IE1 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø50.9 mm, 4-M8 | End bracket: Type A | Shaft: Ø12.7 mm
I03HK1HDDP Efficiency: IE2 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø50.9 mm, 4-M8 | End bracket: Type A | Shaft: Ø12.7 mm
P03HK1DUDP Efficiency: IE3 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø50.9 mm, 4-M8 | End bracket: Type A | Shaft: Ø12.7 mm
I03HK1DUT Efficiency: IE1 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø101.6 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
I03HK1DUTH Efficiency: IE2 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø101.6 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
P03HK1DUT Efficiency: IE3 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø101.6 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
I03HK1DUS Efficiency: IE1 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type A | Shaft: Ø19.05 mm
I03HK1DUSH Efficiency: IE2 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type A | Shaft: Ø19.05 mm
P03HK1DUS Efficiency: IE3 | Output: 3 HP (2.2 kW) | Frame: 112S | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type A | Shaft: Ø19.05 mm
I05HK1DUK Efficiency: IE1 | Output: 5 HP (3.7 kW) | Frame: 112M | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type A | Shaft: Ø15.88 mm
I05HK1HDUK Efficiency: IE2 | Output: 5 HP (3.7 kW) | Frame: 112M | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type A | Shaft: Ø15.88 mm
P05HK1DUK Efficiency: IE3 | Output: 5 HP (3.7 kW) | Frame: 112M | Pump pilot: Ø82.55 mm, 2-M10 | End bracket: Type A | Shaft: Ø15.88 mm
I05HK1DUT Efficiency: IE1 | Output: 5 HP (3.7 kW) | Frame: 112M | Pump pilot: Ø101.6 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
I05HK1HDUT Efficiency: IE2 | Output: 5 HP (3.7 kW) | Frame: 112M | Pump pilot: Ø101.6 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
P05HK1DUT Efficiency: IE3 | Output: 5 HP (3.7 kW) | Frame: 112M | Pump pilot: Ø101.6 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
I05HK1DUS Efficiency: IE1 | Output: 5 HP (3.7 kW) | Frame: 112M | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type A | Shaft: Ø19.05 mm
I05HK1HDUS Efficiency: IE2 | Output: 5 HP (3.7 kW) | Frame: 112M | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type A | Shaft: Ø19.05 mm
P05HK1DUS Efficiency: IE3 | Output: 5 HP (3.7 kW) | Frame: 112M | Pump pilot: Ø82.55 mm, 4-M10 | End bracket: Type A | Shaft: Ø19.05 mm
I08HK1DUS Efficiency: IE1 | Output: 7.5 HP (5.5 kW) | Frame: 132S | Pump pilot: Ø101.6 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
I08HK1HDUS Efficiency: IE2 | Output: 7.5 HP (5.5 kW) | Frame: 132S | Pump pilot: Ø101.6 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
P08HK1DUS Efficiency: IE3 | Output: 7.5 HP (5.5 kW) | Frame: 132S | Pump pilot: Ø101.6 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
I08HK1DUT Efficiency: IE1 | Output: 7.5 HP (5.5 kW) | Frame: 132S | Pump pilot: Ø127.0 mm, 2-M16 | End bracket: Type D | Shaft: Ø31.77 mm
I08HK1HDUT Efficiency: IE2 | Output: 7.5 HP (5.5 kW) | Frame: 132S | Pump pilot: Ø127.0 mm, 2-M16 | End bracket: Type D | Shaft: Ø31.77 mm
P08HK1DUT Efficiency: IE3 | Output: 7.5 HP (5.5 kW) | Frame: 132S | Pump pilot: Ø127.0 mm, 2-M16 | End bracket: Type D | Shaft: Ø31.77 mm
I10HK1DUS Efficiency: IE1 | Output: 10 HP (7.5 kW) | Frame: 132M | Pump pilot: Ø127.0 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
I10HK1HDUS Efficiency: IE2 | Output: 10 HP (7.5 kW) | Frame: 132M | Pump pilot: Ø127.0 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
P10HK1DUS Efficiency: IE3 | Output: 10 HP (7.5 kW) | Frame: 132M | Pump pilot: Ø127.0 mm, 4-M12 | End bracket: Type A | Shaft: Ø22.23 mm
AC MotorsHIGEN RNM
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM HK Series Hydraulic Unit Motors (IE1 / IE2 / IE3)

Brand HIGEN RNM·AC Motors

Available part numbers (66)

I01HK1DUDP, I01HK1HDUP, P01HK1DUDP, I01HK1DUTS, I01HK1HDUS, P01HK1DUTS, I01HK1DUD, I01HK1HDUD, P01HK1DUD, P01HK7DUD + 56 more — see full table ↓
