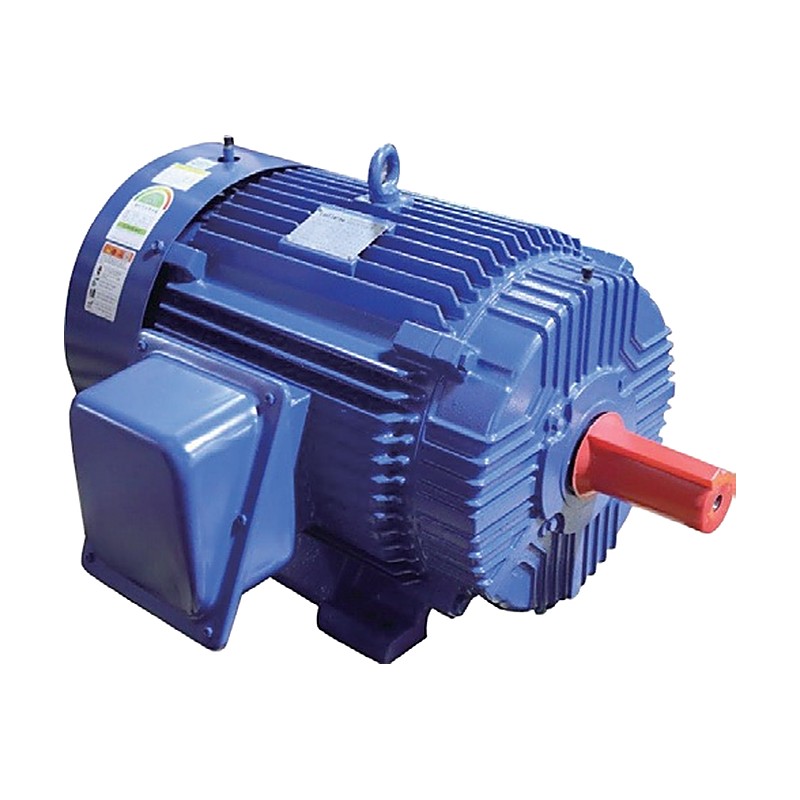

HIGEN RNM Smoke Extraction Motors (TEFC, KS Frame 71M-315J)

HIGEN RNM Smoke Extraction Motors (TEFC, KS Frame 71M-315J)

Fire-rated TEFC horizontal foot-mount smoke-extraction induction motors in KS frames 71M to 315J, 0.2 to 300 kW in 2, 4, 6 and 8 poles.

Key features

  • Heat-resistant to 400 C for 2 hours for fire smoke-extraction duty
  • Runs in ventilation mode normally, switches to smoke-extraction mode in a fire
  • Class H insulation system and H-class varnish
  • Premium efficiency IE3, NEMA design B torque or higher
  • Cast iron frame, end shields and terminal box; SUS nameplate
  • For high-rise buildings, underground complexes, hotels and tunnels

Specifications

Enclosure TEFC, IP55, horizontal foot mount
Efficiency Premium IE3 (IEC 60034-30-1:2014)
Fire rating F250-1, F250-2, F300, F400 (EN 12101-3)
Fire duty S1 at 40 C; S2 up to 400 C for 2 h (F400)
Insulation Class H, class B temperature rise, S.F. 1.0
Certification KTC; KR (Korean Register) heat-resistance test
Bearings Deep-groove ball, high-temperature grease
Options Thermal sensors (PTC/thermostat/PT100), space heater
Source HIGEN RNM Smoke Extraction Motor catalog (KR Ver 1.3 2026.05), p. 2-3, 6-7
Smoke Extraction TEFC 71M 2P 0.2kW Output: 0.2 kW | Poles: 2 | Frame: KS 71M
Smoke Extraction TEFC 71M 2P 0.4kW Output: 0.4 kW | Poles: 2 | Frame: KS 71M
Smoke Extraction TEFC 71M 4P 0.2kW Output: 0.2 kW | Poles: 4 | Frame: KS 71M
Smoke Extraction TEFC 71M 4P 0.4kW Output: 0.4 kW | Poles: 4 | Frame: KS 71M
Smoke Extraction TEFC 80M 2P 0.75kW Output: 0.75 kW | Poles: 2 | Frame: KS 80M
Smoke Extraction TEFC 80M 4P 0.4kW Output: 0.4 kW | Poles: 4 | Frame: KS 80M
Smoke Extraction TEFC 80M 4P 0.75kW Output: 0.75 kW | Poles: 4 | Frame: KS 80M
Smoke Extraction TEFC 80M 6P 0.2kW Output: 0.2 kW | Poles: 6 | Frame: KS 80M
Smoke Extraction TEFC 80M 6P 0.4kW Output: 0.4 kW | Poles: 6 | Frame: KS 80M
Smoke Extraction TEFC 80M 8P 0.2kW Output: 0.2 kW | Poles: 8 | Frame: KS 80M
Smoke Extraction TEFC 90L 2P 1.5kW Output: 1.5 kW | Poles: 2 | Frame: KS 90L
Smoke Extraction TEFC 90L 2P 2.2kW Output: 2.2 kW | Poles: 2 | Frame: KS 90L
Smoke Extraction TEFC 90L 4P 1.5kW Output: 1.5 kW | Poles: 4 | Frame: KS 90L
Smoke Extraction TEFC 90L 6P 0.75kW Output: 0.75 kW | Poles: 6 | Frame: KS 90L
Smoke Extraction TEFC 90L 8P 0.4kW Output: 0.4 kW | Poles: 8 | Frame: KS 90L
Smoke Extraction TEFC 100L 4P 2.2kW Output: 2.2 kW | Poles: 4 | Frame: KS 100L
Smoke Extraction TEFC 100L 6P 1.5kW Output: 1.5 kW | Poles: 6 | Frame: KS 100L
Smoke Extraction TEFC 100L 8P 0.75kW Output: 0.75 kW | Poles: 8 | Frame: KS 100L
Smoke Extraction TEFC 112M 2P 3.7kW Output: 3.7 kW | Poles: 2 | Frame: KS 112M
Smoke Extraction TEFC 112M 4P 3.7kW Output: 3.7 kW | Poles: 4 | Frame: KS 112M
Smoke Extraction TEFC 112M 6P 2.2kW Output: 2.2 kW | Poles: 6 | Frame: KS 112M
Smoke Extraction TEFC 112M 8P 1.5kW Output: 1.5 kW | Poles: 8 | Frame: KS 112M
Smoke Extraction TEFC 132S 2P 5.5kW Output: 5.5 kW | Poles: 2 | Frame: KS 132S
Smoke Extraction TEFC 132S 2P 7.5kW Output: 7.5 kW | Poles: 2 | Frame: KS 132S
Smoke Extraction TEFC 132S 4P 5.5kW Output: 5.5 kW | Poles: 4 | Frame: KS 132S
Smoke Extraction TEFC 132S 6P 3.7kW Output: 3.7 kW | Poles: 6 | Frame: KS 132S
Smoke Extraction TEFC 132S 8P 2.2kW Output: 2.2 kW | Poles: 8 | Frame: KS 132S
Smoke Extraction TEFC 132M 4P 7.5kW Output: 7.5 kW | Poles: 4 | Frame: KS 132M
Smoke Extraction TEFC 132M 6P 5.5kW Output: 5.5 kW | Poles: 6 | Frame: KS 132M
Smoke Extraction TEFC 132M 8P 3.7kW Output: 3.7 kW | Poles: 8 | Frame: KS 132M
Smoke Extraction TEFC 160M 2P 11kW Output: 11 kW | Poles: 2 | Frame: KS 160M
Smoke Extraction TEFC 160M 2P 15kW Output: 15 kW | Poles: 2 | Frame: KS 160M
Smoke Extraction TEFC 160M 4P 11kW Output: 11 kW | Poles: 4 | Frame: KS 160M
Smoke Extraction TEFC 160M 6P 7.5kW Output: 7.5 kW | Poles: 6 | Frame: KS 160M
Smoke Extraction TEFC 160M 8P 5.5kW Output: 5.5 kW | Poles: 8 | Frame: KS 160M
Smoke Extraction TEFC 160L 2P 18.5kW Output: 18.5 kW | Poles: 2 | Frame: KS 160L
Smoke Extraction TEFC 160L 4P 15kW Output: 15 kW | Poles: 4 | Frame: KS 160L
Smoke Extraction TEFC 160L 6P 11kW Output: 11 kW | Poles: 6 | Frame: KS 160L
Smoke Extraction TEFC 160L 8P 7.5kW Output: 7.5 kW | Poles: 8 | Frame: KS 160L
Smoke Extraction TEFC 180M 2P 22kW Output: 22 kW | Poles: 2 | Frame: KS 180M
Smoke Extraction TEFC 180M 4P 18.5kW Output: 18.5 kW | Poles: 4 | Frame: KS 180M
Smoke Extraction TEFC 180M 4P 22kW Output: 22 kW | Poles: 4 | Frame: KS 180M
Smoke Extraction TEFC 180M 6P 15kW Output: 15 kW | Poles: 6 | Frame: KS 180M
Smoke Extraction TEFC 180M 8P 11kW Output: 11 kW | Poles: 8 | Frame: KS 180M
Smoke Extraction TEFC 180L 2P 30kW Output: 30 kW | Poles: 2 | Frame: KS 180L
Smoke Extraction TEFC 180L 4P 30kW Output: 30 kW | Poles: 4 | Frame: KS 180L
Smoke Extraction TEFC 180L 6P 18.5kW Output: 18.5 kW | Poles: 6 | Frame: KS 180L
Smoke Extraction TEFC 180L 6P 22kW Output: 22 kW | Poles: 6 | Frame: KS 180L
Smoke Extraction TEFC 180L 8P 15kW Output: 15 kW | Poles: 8 | Frame: KS 180L
Smoke Extraction TEFC 200L 2P 37kW Output: 37 kW | Poles: 2 | Frame: KS 200L
Smoke Extraction TEFC 200L 2P 45kW Output: 45 kW | Poles: 2 | Frame: KS 200L
Smoke Extraction TEFC 200L 4P 37kW Output: 37 kW | Poles: 4 | Frame: KS 200L
Smoke Extraction TEFC 200L 4P 45kW Output: 45 kW | Poles: 4 | Frame: KS 200L
Smoke Extraction TEFC 200L 6P 30kW Output: 30 kW | Poles: 6 | Frame: KS 200L
Smoke Extraction TEFC 200L 6P 37kW Output: 37 kW | Poles: 6 | Frame: KS 200L
Smoke Extraction TEFC 200L 8P 18.5kW Output: 18.5 kW | Poles: 8 | Frame: KS 200L
Smoke Extraction TEFC 200L 8P 22kW Output: 22 kW | Poles: 8 | Frame: KS 200L
Smoke Extraction TEFC 225S 2P 55kW Output: 55 kW | Poles: 2 | Frame: KS 225S
Smoke Extraction TEFC 225S 4P 55kW Output: 55 kW | Poles: 4 | Frame: KS 225S
Smoke Extraction TEFC 225S 6P 45kW Output: 45 kW | Poles: 6 | Frame: KS 225S
Smoke Extraction TEFC 225S 8P 30kW Output: 30 kW | Poles: 8 | Frame: KS 225S
Smoke Extraction TEFC 250S 2P 75kW Output: 75 kW | Poles: 2 | Frame: KS 250S
Smoke Extraction TEFC 250S 4P 75kW Output: 75 kW | Poles: 4 | Frame: KS 250S
Smoke Extraction TEFC 250S 6P 55kW Output: 55 kW | Poles: 6 | Frame: KS 250S
Smoke Extraction TEFC 250S 8P 37kW Output: 37 kW | Poles: 8 | Frame: KS 250S
Smoke Extraction TEFC 250M 2P 90kW Output: 90 kW | Poles: 2 | Frame: KS 250M
Smoke Extraction TEFC 250M 4P 90kW Output: 90 kW | Poles: 4 | Frame: KS 250M
Smoke Extraction TEFC 250M 6P 75kW Output: 75 kW | Poles: 6 | Frame: KS 250M
Smoke Extraction TEFC 250M 8P 45kW Output: 45 kW | Poles: 8 | Frame: KS 250M
Smoke Extraction TEFC 280S 2P 110kW Output: 110 kW | Poles: 2 | Frame: KS 280S
Smoke Extraction TEFC 280S 4P 110kW Output: 110 kW | Poles: 4 | Frame: KS 280S
Smoke Extraction TEFC 280S 6P 90kW Output: 90 kW | Poles: 6 | Frame: KS 280S
Smoke Extraction TEFC 280S 8P 55kW Output: 55 kW | Poles: 8 | Frame: KS 280S
Smoke Extraction TEFC 280M 2P 132kW Output: 132 kW | Poles: 2 | Frame: KS 280M
Smoke Extraction TEFC 280M 4P 132kW Output: 132 kW | Poles: 4 | Frame: KS 280M
Smoke Extraction TEFC 280M 6P 110kW Output: 110 kW | Poles: 6 | Frame: KS 280M
Smoke Extraction TEFC 280M 8P 75kW Output: 75 kW | Poles: 8 | Frame: KS 280M
Smoke Extraction TEFC 315S 2P 160kW Output: 160 kW | Poles: 2 | Frame: KS 315S
Smoke Extraction TEFC 315S 4P 160kW Output: 160 kW | Poles: 4 | Frame: KS 315S
Smoke Extraction TEFC 315S 6P 132kW Output: 132 kW | Poles: 6 | Frame: KS 315S
Smoke Extraction TEFC 315S 8P 90kW Output: 90 kW | Poles: 8 | Frame: KS 315S
Smoke Extraction TEFC 315M 2P 200kW Output: 200 kW | Poles: 2 | Frame: KS 315M
Smoke Extraction TEFC 315M 4P 200kW Output: 200 kW | Poles: 4 | Frame: KS 315M
Smoke Extraction TEFC 315M 6P 160kW Output: 160 kW | Poles: 6 | Frame: KS 315M
Smoke Extraction TEFC 315M 8P 110kW Output: 110 kW | Poles: 8 | Frame: KS 315M
Smoke Extraction TEFC 315L 2P 200kW Output: 200 kW | Poles: 2 | Frame: KS 315L
Smoke Extraction TEFC 315L 2P 260kW Output: 260 kW | Poles: 2 | Frame: KS 315L
Smoke Extraction TEFC 315L 4P 200kW Output: 200 kW | Poles: 4 | Frame: KS 315L
Smoke Extraction TEFC 315L 4P 260kW Output: 260 kW | Poles: 4 | Frame: KS 315L
Smoke Extraction TEFC 315L 6P 185kW Output: 185 kW | Poles: 6 | Frame: KS 315L
Smoke Extraction TEFC 315L 8P 132kW Output: 132 kW | Poles: 8 | Frame: KS 315L
Smoke Extraction TEFC 315J 2P 300kW Output: 300 kW | Poles: 2 | Frame: KS 315J
Smoke Extraction TEFC 315J 4P 300kW Output: 300 kW | Poles: 4 | Frame: KS 315J
Smoke Extraction TEFC 315J 6P 220kW Output: 220 kW | Poles: 6 | Frame: KS 315J
Smoke Extraction TEFC 315J 8P 160kW Output: 160 kW | Poles: 8 | Frame: KS 315J
