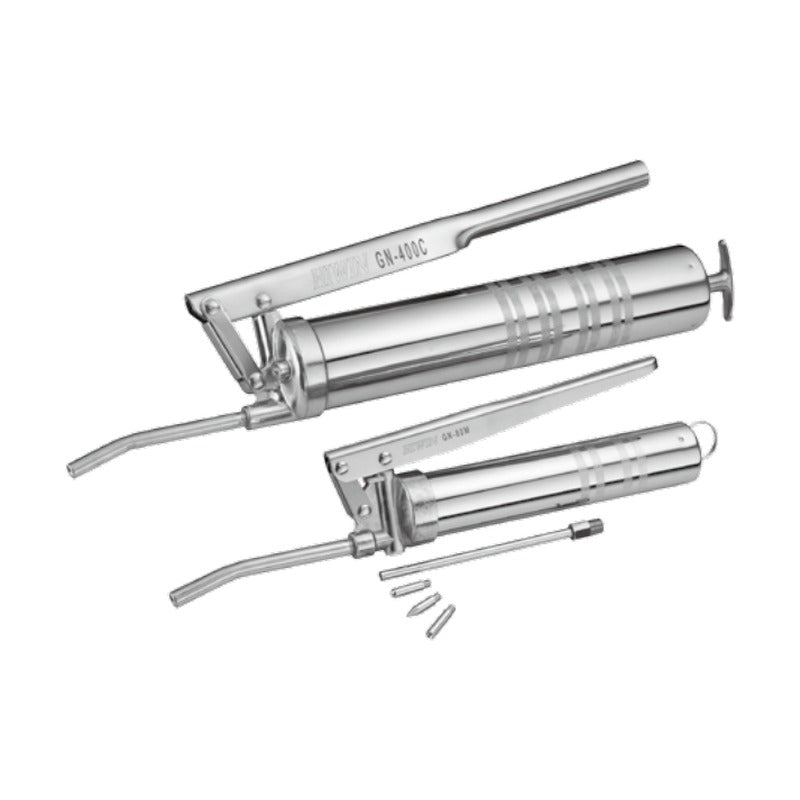

HIWIN Grease Guns and Lubrication Nozzles

HIWIN Grease Guns and Lubrication Nozzles

HIWIN hand grease guns and lubrication pipe/nozzle set (GNZ-05-BOX) for greasing linear guideway blocks through standard or HIWIN grease nipples.

Key features

  • GN-80M compact gun for 70 g soft pack or 120 ml bulk grease
  • GN-400C gun for 14 oz hard pack or 400 ml bulk grease
  • Discharge pressure 15 MPa
  • Nozzle fits standard grease nipples (M6 and M8/PT1/8) and HIWIN nipples
  • GNZ nozzles cover hole, nipple (M3/M4) and DIN 3405 recessed nipple lubrication

Specifications

Product Grease gun / lubrication nozzle
Discharge pressure 15 MPa (guns)
Nozzle thread M5x0.5P (GNZ nozzles)
Lube pipe GT-PT1/8-M5, 140 mm
Kit name GNZ-05-BOX lubrication unit
Source HIWIN Linear Guideway Technical Information (G99TK02-1501), p. 191-192
GN-80M Item: Grease gun | Output: 0.5-0.6 cc/stroke | Body mass: 520 g | Grease: 70 g pack or 120 ml
GN-400C Item: Grease gun | Output: 0.8-0.9 cc/stroke | Body mass: 1150 g | Grease: 14 oz pack or 400 ml
GT-PT1/8-M5 Item: Lube pipe | Output: - | Body mass: - | Grease: PT1/8 to M5x0.5P, 140 mm
GNZ-L-M5 Item: Nozzle, hole type | Output: - | Body mass: - | Grease: Hole lubrication
GNZ-P-M5 Item: Nozzle, hole type | Output: - | Body mass: - | Grease: Hole lubrication
GNZ-R-M5 Item: Nozzle | Output: - | Body mass: - | Grease: Recessed nipple (DIN 3405)
GNZ-C-M5 Item: Nozzle | Output: - | Body mass: - | Grease: Nipple, M3/M4 thread
LubricatorsHIWIN
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN Grease Guns and Lubrication Nozzles

Brand HIWIN·Lubricators

Available part numbers (7)

GN-80M, GN-400C, GT-PT1/8-M5, GNZ-L-M5, GNZ-P-M5, GNZ-R-M5, GNZ-C-M5

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GN-80MItem: Grease gun | Output: 0.5-0.6 cc/stroke | Body mass: 520 g | Grease: 70 g pack or 120 ml
GN-400CItem: Grease gun | Output: 0.8-0.9 cc/stroke | Body mass: 1150 g | Grease: 14 oz pack or 400 ml
GT-PT1/8-M5Item: Lube pipe | Output: - | Body mass: - | Grease: PT1/8 to M5x0.5P, 140 mm
GNZ-L-M5Item: Nozzle, hole type | Output: - | Body mass: - | Grease: Hole lubrication
GNZ-P-M5Item: Nozzle, hole type | Output: - | Body mass: - | Grease: Hole lubrication
GNZ-R-M5Item: Nozzle | Output: - | Body mass: - | Grease: Recessed nipple (DIN 3405)
GNZ-C-M5Item: Nozzle | Output: - | Body mass: - | Grease: Nipple, M3/M4 thread
