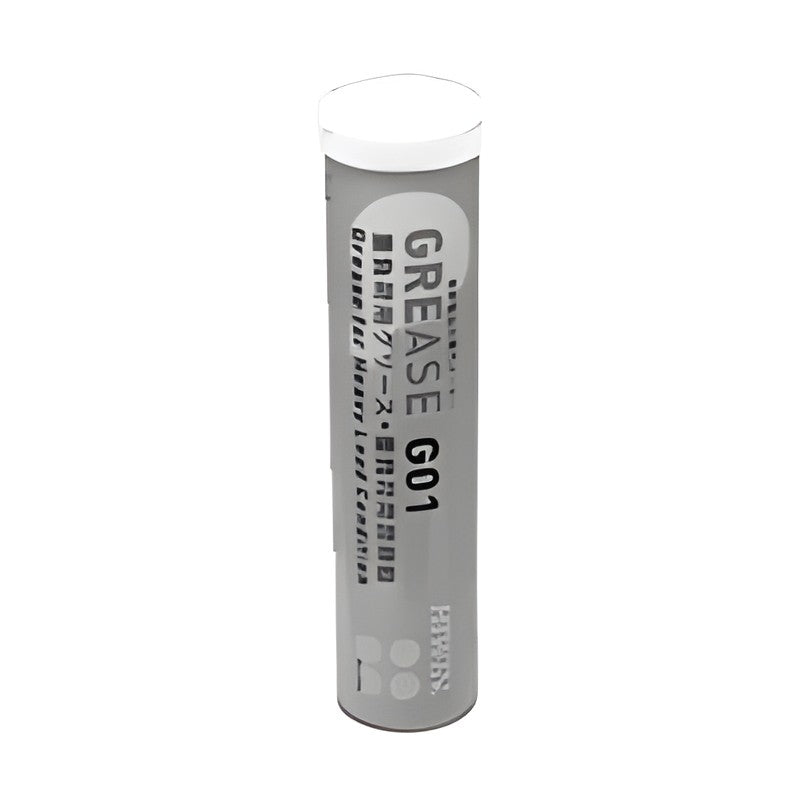

HIWIN Lubricating Greases G01-G05 for Linear Guides

HIWIN Lubricating Greases G01-G05 for Linear Guides

HIWIN greases for linear guideways and ball screws covering heavy load, clean room (low particle), high speed and general multipurpose duty; supplied in 70 g soft packs, 400 g hard packs or 1 kg cans.

Key features

  • G01: heavy-load grease with excellent wear resistance and low-temperature performance
  • G02: low-particle grease for clean rooms, synthetic hydrocarbon base
  • G03: low-particle grease for high-speed clean-room use
  • G04: high-speed grease, ester/PAO base, low friction
  • G05: multipurpose lithium grease with good water and corrosion resistance

Specifications

Product Lubricating grease
Application Linear guideways and ball screws
Packaging 70 g soft pack, 400 g hard pack, 1 kg can
Viscosity at 40 C (cSt) G01 500, G02 100, G03 30, G04 25, G05 200
Dropping point G01 >170, G02 >180, G03 >210, G04 >225, G05 190 C
Source HIWIN Linear Guideway Technical Information (G99TK02-1501), p. 193-194
G01 Base oil: Mineral oil | Thickener: Polyurea | Temp: -15 to 115 C | Penetration: 310-340
G02 Base oil: Synthetic hydrocarbon | Thickener: Calcium soap | Temp: -30 to 140 C | Penetration: 265-295
G03 Base oil: Synthetic hydrocarbon | Thickener: Calcium soap | Temp: -45 to 125 C | Penetration: 265-295
G04 Base oil: Ester/PAO | Thickener: Lithium soap | Temp: -35 to 120 C | Penetration: 260-280
G05 Base oil: Mineral oil | Thickener: Lithium soap | Temp: -15 to 120 C | Penetration: NLGI 2
LubricantsHIWIN
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIWIN Lubricating Greases G01-G05 for Linear Guides

Brand HIWIN·Lubricants

Available part numbers (5)

G01, G02, G03, G04, G05

How to order

Send the HIWIN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G01Base oil: Mineral oil | Thickener: Polyurea | Temp: -15 to 115 C | Penetration: 310-340
G02Base oil: Synthetic hydrocarbon | Thickener: Calcium soap | Temp: -30 to 140 C | Penetration: 265-295
G03Base oil: Synthetic hydrocarbon | Thickener: Calcium soap | Temp: -45 to 125 C | Penetration: 265-295
G04Base oil: Ester/PAO | Thickener: Lithium soap | Temp: -35 to 120 C | Penetration: 260-280
G05Base oil: Mineral oil | Thickener: Lithium soap | Temp: -15 to 120 C | Penetration: NLGI 2
