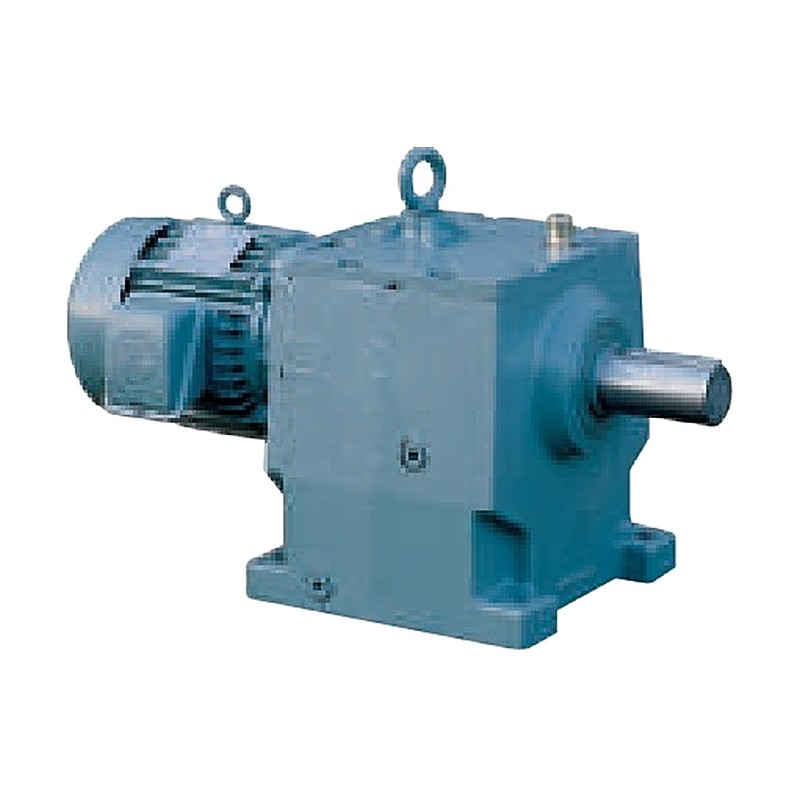

Hyosung H Series Helical Geared Motor, 3.7-22 kW

Hyosung H Series Helical Geared Motor, 3.7-22 kW

Oil-lubricated high-ratio helical geared motors from 3.7 to 22 kW with ratios 1/40 to 1/120, horizontal or flange mounted, with integrated motor or input shaft.

Key features

  • Casing fully supports overhung and thrust loads; output cover-free design fixed with bolts
  • Vibration-absorbing high-accuracy gearing for smooth, low-noise operation
  • All bearing housings machined in one setting for high accuracy
  • Free mounting position; reduced parts count lowers maintenance cost

Specifications

Motor 4-pole (4-6P), 50/60 Hz
Selection basis 60 Hz, 4P
Gear type Helical
Power range 3.7-22 kW
Ratio range 1/40-1/120
Lubrication Oil
Service factor 1.4-2.0
Unit sizes 25, 28, 32, 39
HHM25 Mounting: Horizontal, integrated motor | Unit size: 25 | Power and ratio: 3.7 kW 1/80-1/120; 5.5 kW 1/40-1/60; 7.5 kW 1/40-1/50 | Allowable output torque: 1682-3394 N·m | Output shaft OHL: 17032-17287 N | Motor frame: 112M-160L
HHM28 Mounting: Horizontal, integrated motor | Unit size: 28 | Power and ratio: 5.5 kW 1/80-1/120; 7.5 kW 1/60; 11 kW 1/40-1/60; 15 kW 1/40 | Allowable output torque: 3363-5045 N·m | Output shaft OHL: 21589-24255 N | Motor frame: 132S-160L
HHM32 Mounting: Horizontal, integrated motor | Unit size: 32 | Power and ratio: 7.5 kW 1/80-1/120; 11 kW 1/80; 15 kW 1/40-1/60; 18.5 kW 1/40-1/50 | Allowable output torque: 4586-7071 N·m | Output shaft OHL: 42248-43051 N | Motor frame: 132M-160L
HHM39 Mounting: Horizontal, integrated motor | Unit size: 39 | Power and ratio: 11 kW 1/90-1/120; 15 kW 1/80-1/100; 18.5 kW 1/60-1/80; 22 kW 1/45-1/60 | Allowable output torque: 7568-11466 N·m | Output shaft OHL: 60623-63622 N | Motor frame: 160M-160L
HFM25 Mounting: Flange, integrated motor | Unit size: 25 | Power and ratio: 3.7 kW 1/80-1/120; 5.5 kW 1/40-1/60; 7.5 kW 1/40-1/50 | Allowable output torque: 1682-3394 N·m | Output shaft OHL: 17032-17287 N | Motor frame: 112M-160L
HFM28 Mounting: Flange, integrated motor | Unit size: 28 | Power and ratio: 5.5 kW 1/80-1/120; 7.5 kW 1/60; 11 kW 1/40-1/60; 15 kW 1/40 | Allowable output torque: 3363-5045 N·m | Output shaft OHL: 21589-24255 N | Motor frame: 132S-160L
HFM32 Mounting: Flange, integrated motor | Unit size: 32 | Power and ratio: 7.5 kW 1/80-1/120; 11 kW 1/80; 15 kW 1/40-1/60; 18.5 kW 1/40-1/50 | Allowable output torque: 4586-7071 N·m | Output shaft OHL: 42248-43051 N | Motor frame: 132M-160L
HFM39 Mounting: Flange, integrated motor | Unit size: 39 | Power and ratio: 11 kW 1/90-1/120; 15 kW 1/80-1/100; 18.5 kW 1/60-1/80; 22 kW 1/45-1/60 | Allowable output torque: 7568-11466 N·m | Output shaft OHL: 60623-63622 N | Motor frame: 160M-160L
HH25 Mounting: Horizontal, line power | Unit size: 25 | Power and ratio: 3.7 kW 1/80-1/120; 5.5 kW 1/40-1/60; 7.5 kW 1/40-1/50 | Allowable output torque: 1682-3394 N·m | Output shaft OHL: 17032-17287 N
HH28 Mounting: Horizontal, line power | Unit size: 28 | Power and ratio: 5.5 kW 1/80-1/120; 7.5 kW 1/60; 11 kW 1/40-1/60; 15 kW 1/40 | Allowable output torque: 3363-5045 N·m | Output shaft OHL: 21589-24255 N
HH32 Mounting: Horizontal, line power | Unit size: 32 | Power and ratio: 7.5 kW 1/80-1/120; 11 kW 1/80; 15 kW 1/40-1/60; 18.5 kW 1/40-1/50 | Allowable output torque: 4586-7071 N·m | Output shaft OHL: 42248-43051 N
HH39 Mounting: Horizontal, line power | Unit size: 39 | Power and ratio: 11 kW 1/90-1/120; 15 kW 1/80-1/100; 18.5 kW 1/60-1/80; 22 kW 1/45-1/60 | Allowable output torque: 7568-11466 N·m | Output shaft OHL: 60623-63622 N
HF25 Mounting: Flange, line power | Unit size: 25 | Power and ratio: 3.7 kW 1/80-1/120; 5.5 kW 1/40-1/60; 7.5 kW 1/40-1/50 | Allowable output torque: 1682-3394 N·m | Output shaft OHL: 17032-17287 N
HF28 Mounting: Flange, line power | Unit size: 28 | Power and ratio: 5.5 kW 1/80-1/120; 7.5 kW 1/60; 11 kW 1/40-1/60; 15 kW 1/40 | Allowable output torque: 3363-5045 N·m | Output shaft OHL: 21589-24255 N
HF32 Mounting: Flange, line power | Unit size: 32 | Power and ratio: 7.5 kW 1/80-1/120; 11 kW 1/80; 15 kW 1/40-1/60; 18.5 kW 1/40-1/50 | Allowable output torque: 4586-7071 N·m | Output shaft OHL: 42248-43051 N
HF39 Mounting: Flange, line power | Unit size: 39 | Power and ratio: 11 kW 1/90-1/120; 15 kW 1/80-1/100; 18.5 kW 1/60-1/80; 22 kW 1/45-1/60 | Allowable output torque: 7568-11466 N·m | Output shaft OHL: 60623-63622 N
Geared MotorsHyosung
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hyosung H Series Helical Geared Motor, 3.7-22 kW

Brand Hyosung·Geared Motors

Available part numbers (16)

HHM25, HHM28, HHM32, HHM39, HFM25, HFM28, HFM32, HFM39, HH25, HH28 + 6 more — see full table ↓

How to order

Send the Hyosung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HHM25Mounting: Horizontal, integrated motor | Unit size: 25 | Power and ratio: 3.7 kW 1/80-1/120; 5.5 kW 1/40-1/60; 7.5 kW 1/40-1/50 | Allowable output torque: 1682-3394 N·m | Output shaft OHL: 17032-17287 N | Motor frame: 112M-160L
HHM28Mounting: Horizontal, integrated motor | Unit size: 28 | Power and ratio: 5.5 kW 1/80-1/120; 7.5 kW 1/60; 11 kW 1/40-1/60; 15 kW 1/40 | Allowable output torque: 3363-5045 N·m | Output shaft OHL: 21589-24255 N | Motor frame: 132S-160L
HHM32Mounting: Horizontal, integrated motor | Unit size: 32 | Power and ratio: 7.5 kW 1/80-1/120; 11 kW 1/80; 15 kW 1/40-1/60; 18.5 kW 1/40-1/50 | Allowable output torque: 4586-7071 N·m | Output shaft OHL: 42248-43051 N | Motor frame: 132M-160L
HHM39Mounting: Horizontal, integrated motor | Unit size: 39 | Power and ratio: 11 kW 1/90-1/120; 15 kW 1/80-1/100; 18.5 kW 1/60-1/80; 22 kW 1/45-1/60 | Allowable output torque: 7568-11466 N·m | Output shaft OHL: 60623-63622 N | Motor frame: 160M-160L
HFM25Mounting: Flange, integrated motor | Unit size: 25 | Power and ratio: 3.7 kW 1/80-1/120; 5.5 kW 1/40-1/60; 7.5 kW 1/40-1/50 | Allowable output torque: 1682-3394 N·m | Output shaft OHL: 17032-17287 N | Motor frame: 112M-160L
HFM28Mounting: Flange, integrated motor | Unit size: 28 | Power and ratio: 5.5 kW 1/80-1/120; 7.5 kW 1/60; 11 kW 1/40-1/60; 15 kW 1/40 | Allowable output torque: 3363-5045 N·m | Output shaft OHL: 21589-24255 N | Motor frame: 132S-160L
HFM32Mounting: Flange, integrated motor | Unit size: 32 | Power and ratio: 7.5 kW 1/80-1/120; 11 kW 1/80; 15 kW 1/40-1/60; 18.5 kW 1/40-1/50 | Allowable output torque: 4586-7071 N·m | Output shaft OHL: 42248-43051 N | Motor frame: 132M-160L
HFM39Mounting: Flange, integrated motor | Unit size: 39 | Power and ratio: 11 kW 1/90-1/120; 15 kW 1/80-1/100; 18.5 kW 1/60-1/80; 22 kW 1/45-1/60 | Allowable output torque: 7568-11466 N·m | Output shaft OHL: 60623-63622 N | Motor frame: 160M-160L
HH25Mounting: Horizontal, line power | Unit size: 25 | Power and ratio: 3.7 kW 1/80-1/120; 5.5 kW 1/40-1/60; 7.5 kW 1/40-1/50 | Allowable output torque: 1682-3394 N·m | Output shaft OHL: 17032-17287 N
HH28Mounting: Horizontal, line power | Unit size: 28 | Power and ratio: 5.5 kW 1/80-1/120; 7.5 kW 1/60; 11 kW 1/40-1/60; 15 kW 1/40 | Allowable output torque: 3363-5045 N·m | Output shaft OHL: 21589-24255 N
HH32Mounting: Horizontal, line power | Unit size: 32 | Power and ratio: 7.5 kW 1/80-1/120; 11 kW 1/80; 15 kW 1/40-1/60; 18.5 kW 1/40-1/50 | Allowable output torque: 4586-7071 N·m | Output shaft OHL: 42248-43051 N
HH39Mounting: Horizontal, line power | Unit size: 39 | Power and ratio: 11 kW 1/90-1/120; 15 kW 1/80-1/100; 18.5 kW 1/60-1/80; 22 kW 1/45-1/60 | Allowable output torque: 7568-11466 N·m | Output shaft OHL: 60623-63622 N
HF25Mounting: Flange, line power | Unit size: 25 | Power and ratio: 3.7 kW 1/80-1/120; 5.5 kW 1/40-1/60; 7.5 kW 1/40-1/50 | Allowable output torque: 1682-3394 N·m | Output shaft OHL: 17032-17287 N
HF28Mounting: Flange, line power | Unit size: 28 | Power and ratio: 5.5 kW 1/80-1/120; 7.5 kW 1/60; 11 kW 1/40-1/60; 15 kW 1/40 | Allowable output torque: 3363-5045 N·m | Output shaft OHL: 21589-24255 N
HF32Mounting: Flange, line power | Unit size: 32 | Power and ratio: 7.5 kW 1/80-1/120; 11 kW 1/80; 15 kW 1/40-1/60; 18.5 kW 1/40-1/50 | Allowable output torque: 4586-7071 N·m | Output shaft OHL: 42248-43051 N
HF39Mounting: Flange, line power | Unit size: 39 | Power and ratio: 11 kW 1/90-1/120; 15 kW 1/80-1/100; 18.5 kW 1/60-1/80; 22 kW 1/45-1/60 | Allowable output torque: 7568-11466 N·m | Output shaft OHL: 60623-63622 N
