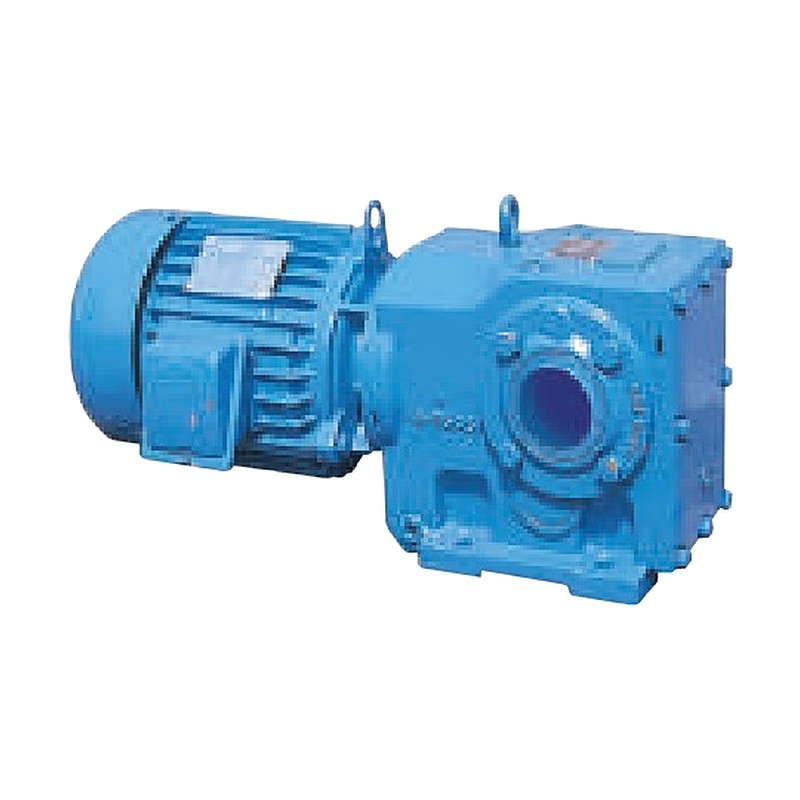

Hyosung K Series Right-Angle Bevel Geared Motor, 0.4-55 kW

Hyosung K Series Right-Angle Bevel Geared Motor, 0.4-55 kW

Oil-lubricated right-angle bevel-helical geared motors from 0.4 to 55 kW with ratios 1/20 to 1/120, with solid or hollow output shaft, foot or flange mounted.

Key features

  • Robust frame; carburised and ground gears for low noise and high efficiency
  • Free mounting position with high-quality seals against oil leakage
  • Output bearings optimised for overhung load
  • Types: H solid shaft, F solid shaft flange, HH hollow shaft, FH hollow shaft flange; M = integrated motor

Specifications

Motor 4-pole (4-6P), 50/60 Hz
Selection basis 60 Hz, 4P
Gear type Bevel (right angle)
Power range 0.4-55 kW
Ratio range 1/20-1/120
Lubrication Oil
Service factor 1.0-2.0
K04 Unit size: 04 | Allowable output torque (ratio ~60/~90/~120): 304/314/323 N·m | Output shaft OHL (~60/~90/~120): 4116/4410/4704 N | Motor frame: 80M-90L | Weight (KHHM): 51-56 kg
K06 Unit size: 06 | Allowable output torque (ratio ~60/~90/~120): 451/490/510 N·m | Output shaft OHL (~60/~90/~120): 6468/6664/6860 N | Motor frame: 80M-112M | Weight (KHHM): 68-100 kg
K07 Unit size: 07 | Allowable output torque (ratio ~60/~90/~120): 813/862/902 N·m | Output shaft OHL (~60/~90/~120): 8820/9212/9604 N | Motor frame: 80M-132S | Weight (KHHM): 87-150 kg
K08 Unit size: 08 | Allowable output torque (ratio ~60/~90/~120): 1784/1891/1960 N·m | Output shaft OHL (~60/~90/~120): 13034/17150/20384 N | Motor frame: 90L-160M | Weight (KHHM): 116-242 kg
K09 Unit size: 09 | Allowable output torque (ratio ~60/~90/~120): 3234/3626/4018 N·m | Output shaft OHL (~60/~90/~120): 19894/26656/32046 N | Motor frame: 112M-180M | Weight (KHHM): 229-386 kg
K10 Unit size: 10 | Allowable output torque (ratio ~60/~90/~120): 6370/7056/7644 N·m | Output shaft OHL (~60/~90/~120): 24108/33418/43512 N | Motor frame: 132S-200L | Weight (KHHM): 344-552 kg
K12 Unit size: 12 | Allowable output torque (ratio ~60/~90/~120): 10290/11270/12250 N·m | Output shaft OHL (~60/~90/~120): 37240/49000/62034 N | Motor frame: 160M-225S | Weight (KHHM): 549-709 kg
K15 Unit size: 15 | Allowable output torque (ratio ~60/~90/~120): 12740/14210/15190 N·m | Output shaft OHL (~60/~90/~120): 44100/61348/73696 N | Motor frame: 160L-250S | Weight (KHHM): 923-1202 kg
K16 Unit size: 16 | Allowable output torque (ratio ~60/~90/~120): 26460/28420/30380 N·m | Output shaft OHL (~60/~90/~120): 76440/103488/121814 N | Motor frame: 180M-250M | Weight (KHHM): 1281-1560 kg
Geared MotorsHyosung
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hyosung K Series Right-Angle Bevel Geared Motor, 0.4-55 kW

Brand Hyosung·Geared Motors

Available part numbers (9)

K04, K06, K07, K08, K09, K10, K12, K15, K16

How to order

Send the Hyosung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K04Unit size: 04 | Allowable output torque (ratio ~60/~90/~120): 304/314/323 N·m | Output shaft OHL (~60/~90/~120): 4116/4410/4704 N | Motor frame: 80M-90L | Weight (KHHM): 51-56 kg
K06Unit size: 06 | Allowable output torque (ratio ~60/~90/~120): 451/490/510 N·m | Output shaft OHL (~60/~90/~120): 6468/6664/6860 N | Motor frame: 80M-112M | Weight (KHHM): 68-100 kg
K07Unit size: 07 | Allowable output torque (ratio ~60/~90/~120): 813/862/902 N·m | Output shaft OHL (~60/~90/~120): 8820/9212/9604 N | Motor frame: 80M-132S | Weight (KHHM): 87-150 kg
K08Unit size: 08 | Allowable output torque (ratio ~60/~90/~120): 1784/1891/1960 N·m | Output shaft OHL (~60/~90/~120): 13034/17150/20384 N | Motor frame: 90L-160M | Weight (KHHM): 116-242 kg
K09Unit size: 09 | Allowable output torque (ratio ~60/~90/~120): 3234/3626/4018 N·m | Output shaft OHL (~60/~90/~120): 19894/26656/32046 N | Motor frame: 112M-180M | Weight (KHHM): 229-386 kg
K10Unit size: 10 | Allowable output torque (ratio ~60/~90/~120): 6370/7056/7644 N·m | Output shaft OHL (~60/~90/~120): 24108/33418/43512 N | Motor frame: 132S-200L | Weight (KHHM): 344-552 kg
K12Unit size: 12 | Allowable output torque (ratio ~60/~90/~120): 10290/11270/12250 N·m | Output shaft OHL (~60/~90/~120): 37240/49000/62034 N | Motor frame: 160M-225S | Weight (KHHM): 549-709 kg
K15Unit size: 15 | Allowable output torque (ratio ~60/~90/~120): 12740/14210/15190 N·m | Output shaft OHL (~60/~90/~120): 44100/61348/73696 N | Motor frame: 160L-250S | Weight (KHHM): 923-1202 kg
K16Unit size: 16 | Allowable output torque (ratio ~60/~90/~120): 26460/28420/30380 N·m | Output shaft OHL (~60/~90/~120): 76440/103488/121814 N | Motor frame: 180M-250M | Weight (KHHM): 1281-1560 kg
