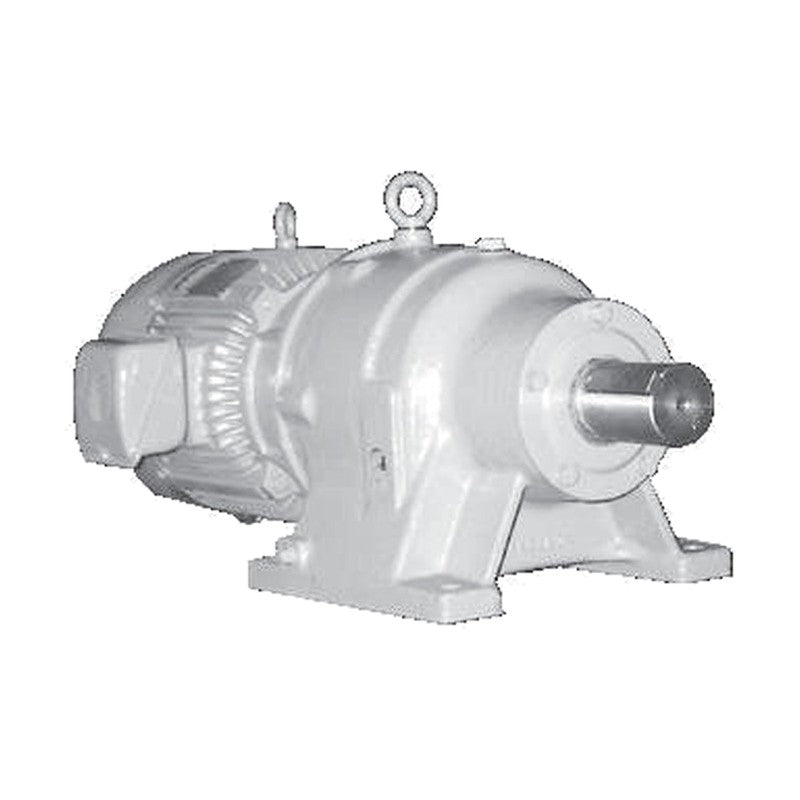

Hyosung P Series Planetary Geared Motor, 0.4-55 kW

Hyosung P Series Planetary Geared Motor, 0.4-55 kW

Oil-lubricated planetary geared motors from 0.4 to 55 kW with ratios 1/40 to 1/600, horizontal or vertical, with integrated motor or input shaft.

Key features

  • Multiple planetary gears share the load, allowing a light, compact casing
  • Carburised and ground alloy-steel gears for high accuracy and efficiency
  • Long service life and low noise
  • Concentric input and output for easy assembly and handling
  • Gear ratios up to 1/1,000,000 possible with multi-stage planetary reduction

Specifications

Motor 4-pole (4-6P), 50/60 Hz
Selection basis 60 Hz, 4P
Gear type Planetary
Power range 0.4-55 kW
Ratio range 1/40-1/600
Lubrication Oil
Service factor 1.4-2.0
Unit sizes (shaft codes) B, C, D, E, F, G, H, I, J, L, N
PHM-B Mounting: Horizontal, integrated motor | Unit size (shaft code): B | Power: 0.4-0.75 kW | Ratio: 1/120-1/240 | Allowable low-speed shaft torque: 588 N·m | Weight: 82-86 kg
PHM-C Mounting: Horizontal, integrated motor | Unit size (shaft code): C | Power: 0.4-0.75 kW | Ratio: 1/150-1/320 | Allowable low-speed shaft torque: 980 N·m | Weight: 93-99 kg
PHM-D Mounting: Horizontal, integrated motor | Unit size (shaft code): D | Power: 0.4-1.5 kW | Ratio: 1/120-1/470 | Allowable low-speed shaft torque: 1225 N·m | Weight: 94-111 kg
PHM-E Mounting: Horizontal, integrated motor | Unit size (shaft code): E | Power: 0.4-5.5 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 1862 N·m | Weight: 130-182 kg
PHM-F Mounting: Horizontal, integrated motor | Unit size (shaft code): F | Power: 0.75-7.5 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 2156 N·m | Weight: 134-190 kg
PHM-G Mounting: Horizontal, integrated motor | Unit size (shaft code): G | Power: 0.75-11 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 3332 N·m | Weight: 197-312 kg
PHM-H Mounting: Horizontal, integrated motor | Unit size (shaft code): H | Power: 1.5-7.5 kW | Ratio: 1/80-1/470 | Allowable low-speed shaft torque: 4410 N·m | Weight: 202-258 kg
PHM-I Mounting: Horizontal, integrated motor | Unit size (shaft code): I | Power: 1.5-22 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 6664 N·m | Weight: 269-432 kg
PHM-J Mounting: Horizontal, integrated motor | Unit size (shaft code): J | Power: 2.2-45 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 13230 N·m | Weight: 559-844 kg
PHM-L Mounting: Horizontal, integrated motor | Unit size (shaft code): L | Power: 5.5-55 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 17150 N·m | Weight: 865-1109 kg
PHM-N Mounting: Horizontal, integrated motor | Unit size (shaft code): N | Power: 5.5-55 kW | Ratio: 1/60-1/600 | Allowable low-speed shaft torque: 23030 N·m | Weight: 1117-1335 kg
PVM-B Mounting: Vertical, integrated motor | Unit size (shaft code): B | Power: 0.4-0.75 kW | Ratio: 1/120-1/240 | Allowable low-speed shaft torque: 588 N·m | Weight: 87-93 kg
PVM-C Mounting: Vertical, integrated motor | Unit size (shaft code): C | Power: 0.4-2.2 kW | Ratio: 1/40-1/320 | Allowable low-speed shaft torque: 980 N·m | Weight: 100-130 kg
PVM-D Mounting: Vertical, integrated motor | Unit size (shaft code): D | Power: 0.4-2.2 kW | Ratio: 1/60-1/470 | Allowable low-speed shaft torque: 1225 N·m | Weight: 100-140 kg
PVM-E Mounting: Vertical, integrated motor | Unit size (shaft code): E | Power: 0.4-5.5 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 1862 N·m | Weight: 144-192 kg
PVM-F Mounting: Vertical, integrated motor | Unit size (shaft code): F | Power: 0.75-7.5 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 2156 N·m | Weight: 151-200 kg
PVM-G Mounting: Vertical, integrated motor | Unit size (shaft code): G | Power: 0.75-7.5 kW | Ratio: 1/60-1/600 | Allowable low-speed shaft torque: 3332 N·m | Weight: 218-261 kg
PVM-H Mounting: Vertical, integrated motor | Unit size (shaft code): H | Power: 1.5-11 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 4410 N·m | Weight: 226-328 kg
PVM-I Mounting: Vertical, integrated motor | Unit size (shaft code): I | Power: 1.5-22 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 6664 N·m | Weight: 300-459 kg
PVM-J Mounting: Vertical, integrated motor | Unit size (shaft code): J | Power: 2.2-45 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 13230 N·m | Weight: 589-874 kg
PVM-L Mounting: Vertical, integrated motor | Unit size (shaft code): L | Power: 5.5-55 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 17150 N·m | Weight: 940-1185 kg
PVM-N Mounting: Vertical, integrated motor | Unit size (shaft code): N | Power: 5.5-55 kW | Ratio: 1/60-1/600 | Allowable low-speed shaft torque: 23030 N·m | Weight: 1207-1425 kg
PH-B Mounting: Horizontal, line power | Unit size (shaft code): B | Power: 0.75-1.5 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 588 N·m | Weight: 49-53 kg
PH-C Mounting: Horizontal, line power | Unit size (shaft code): C | Power: 1.5-2.2 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 980 N·m | Weight: 67-70 kg
PH-D Mounting: Horizontal, line power | Unit size (shaft code): D | Power: 2.2 kW | Ratio: 1/60-1/80 | Allowable low-speed shaft torque: 1225 N·m | Weight: 73-77 kg
PH-E Mounting: Horizontal, line power | Unit size (shaft code): E | Power: 3.7-5.5 kW | Ratio: 1/40-1/60 | Allowable low-speed shaft torque: 1862 N·m | Weight: 100-105 kg
PH-F Mounting: Horizontal, line power | Unit size (shaft code): F | Power: 3.7-7.5 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 2156 N·m | Weight: 107-108 kg
PH-G Mounting: Horizontal, line power | Unit size (shaft code): G | Power: 5.5-11 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 3332 N·m | Weight: 164-173 kg
PH-H Mounting: Horizontal, line power | Unit size (shaft code): H | Power: 7.5 kW | Ratio: 1/80 | Allowable low-speed shaft torque: 4410 N·m | Weight: 170 kg
PH-I Mounting: Horizontal, line power | Unit size (shaft code): I | Power: 11-15 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 6664 N·m | Weight: 230-237 kg
PH-J Mounting: Horizontal, line power | Unit size (shaft code): J | Power: 15 kW | Ratio: 1/80 | Allowable low-speed shaft torque: 13230 N·m | Weight: 465 kg
Geared MotorsHyosung
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hyosung P Series Planetary Geared Motor, 0.4-55 kW

Brand Hyosung·Geared Motors

Available part numbers (31)

PHM-B, PHM-C, PHM-D, PHM-E, PHM-F, PHM-G, PHM-H, PHM-I, PHM-J, PHM-L + 21 more — see full table ↓

How to order

Send the Hyosung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PHM-BMounting: Horizontal, integrated motor | Unit size (shaft code): B | Power: 0.4-0.75 kW | Ratio: 1/120-1/240 | Allowable low-speed shaft torque: 588 N·m | Weight: 82-86 kg
PHM-CMounting: Horizontal, integrated motor | Unit size (shaft code): C | Power: 0.4-0.75 kW | Ratio: 1/150-1/320 | Allowable low-speed shaft torque: 980 N·m | Weight: 93-99 kg
PHM-DMounting: Horizontal, integrated motor | Unit size (shaft code): D | Power: 0.4-1.5 kW | Ratio: 1/120-1/470 | Allowable low-speed shaft torque: 1225 N·m | Weight: 94-111 kg
PHM-EMounting: Horizontal, integrated motor | Unit size (shaft code): E | Power: 0.4-5.5 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 1862 N·m | Weight: 130-182 kg
PHM-FMounting: Horizontal, integrated motor | Unit size (shaft code): F | Power: 0.75-7.5 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 2156 N·m | Weight: 134-190 kg
PHM-GMounting: Horizontal, integrated motor | Unit size (shaft code): G | Power: 0.75-11 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 3332 N·m | Weight: 197-312 kg
PHM-HMounting: Horizontal, integrated motor | Unit size (shaft code): H | Power: 1.5-7.5 kW | Ratio: 1/80-1/470 | Allowable low-speed shaft torque: 4410 N·m | Weight: 202-258 kg
PHM-IMounting: Horizontal, integrated motor | Unit size (shaft code): I | Power: 1.5-22 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 6664 N·m | Weight: 269-432 kg
PHM-JMounting: Horizontal, integrated motor | Unit size (shaft code): J | Power: 2.2-45 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 13230 N·m | Weight: 559-844 kg
PHM-LMounting: Horizontal, integrated motor | Unit size (shaft code): L | Power: 5.5-55 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 17150 N·m | Weight: 865-1109 kg
PHM-NMounting: Horizontal, integrated motor | Unit size (shaft code): N | Power: 5.5-55 kW | Ratio: 1/60-1/600 | Allowable low-speed shaft torque: 23030 N·m | Weight: 1117-1335 kg
PVM-BMounting: Vertical, integrated motor | Unit size (shaft code): B | Power: 0.4-0.75 kW | Ratio: 1/120-1/240 | Allowable low-speed shaft torque: 588 N·m | Weight: 87-93 kg
PVM-CMounting: Vertical, integrated motor | Unit size (shaft code): C | Power: 0.4-2.2 kW | Ratio: 1/40-1/320 | Allowable low-speed shaft torque: 980 N·m | Weight: 100-130 kg
PVM-DMounting: Vertical, integrated motor | Unit size (shaft code): D | Power: 0.4-2.2 kW | Ratio: 1/60-1/470 | Allowable low-speed shaft torque: 1225 N·m | Weight: 100-140 kg
PVM-EMounting: Vertical, integrated motor | Unit size (shaft code): E | Power: 0.4-5.5 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 1862 N·m | Weight: 144-192 kg
PVM-FMounting: Vertical, integrated motor | Unit size (shaft code): F | Power: 0.75-7.5 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 2156 N·m | Weight: 151-200 kg
PVM-GMounting: Vertical, integrated motor | Unit size (shaft code): G | Power: 0.75-7.5 kW | Ratio: 1/60-1/600 | Allowable low-speed shaft torque: 3332 N·m | Weight: 218-261 kg
PVM-HMounting: Vertical, integrated motor | Unit size (shaft code): H | Power: 1.5-11 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 4410 N·m | Weight: 226-328 kg
PVM-IMounting: Vertical, integrated motor | Unit size (shaft code): I | Power: 1.5-22 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 6664 N·m | Weight: 300-459 kg
PVM-JMounting: Vertical, integrated motor | Unit size (shaft code): J | Power: 2.2-45 kW | Ratio: 1/40-1/600 | Allowable low-speed shaft torque: 13230 N·m | Weight: 589-874 kg
PVM-LMounting: Vertical, integrated motor | Unit size (shaft code): L | Power: 5.5-55 kW | Ratio: 1/40-1/470 | Allowable low-speed shaft torque: 17150 N·m | Weight: 940-1185 kg
PVM-NMounting: Vertical, integrated motor | Unit size (shaft code): N | Power: 5.5-55 kW | Ratio: 1/60-1/600 | Allowable low-speed shaft torque: 23030 N·m | Weight: 1207-1425 kg
PH-BMounting: Horizontal, line power | Unit size (shaft code): B | Power: 0.75-1.5 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 588 N·m | Weight: 49-53 kg
PH-CMounting: Horizontal, line power | Unit size (shaft code): C | Power: 1.5-2.2 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 980 N·m | Weight: 67-70 kg
PH-DMounting: Horizontal, line power | Unit size (shaft code): D | Power: 2.2 kW | Ratio: 1/60-1/80 | Allowable low-speed shaft torque: 1225 N·m | Weight: 73-77 kg
PH-EMounting: Horizontal, line power | Unit size (shaft code): E | Power: 3.7-5.5 kW | Ratio: 1/40-1/60 | Allowable low-speed shaft torque: 1862 N·m | Weight: 100-105 kg
PH-FMounting: Horizontal, line power | Unit size (shaft code): F | Power: 3.7-7.5 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 2156 N·m | Weight: 107-108 kg
PH-GMounting: Horizontal, line power | Unit size (shaft code): G | Power: 5.5-11 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 3332 N·m | Weight: 164-173 kg
PH-HMounting: Horizontal, line power | Unit size (shaft code): H | Power: 7.5 kW | Ratio: 1/80 | Allowable low-speed shaft torque: 4410 N·m | Weight: 170 kg
PH-IMounting: Horizontal, line power | Unit size (shaft code): I | Power: 11-15 kW | Ratio: 1/40-1/80 | Allowable low-speed shaft torque: 6664 N·m | Weight: 230-237 kg
PH-JMounting: Horizontal, line power | Unit size (shaft code): J | Power: 15 kW | Ratio: 1/80 | Allowable low-speed shaft torque: 13230 N·m | Weight: 465 kg
