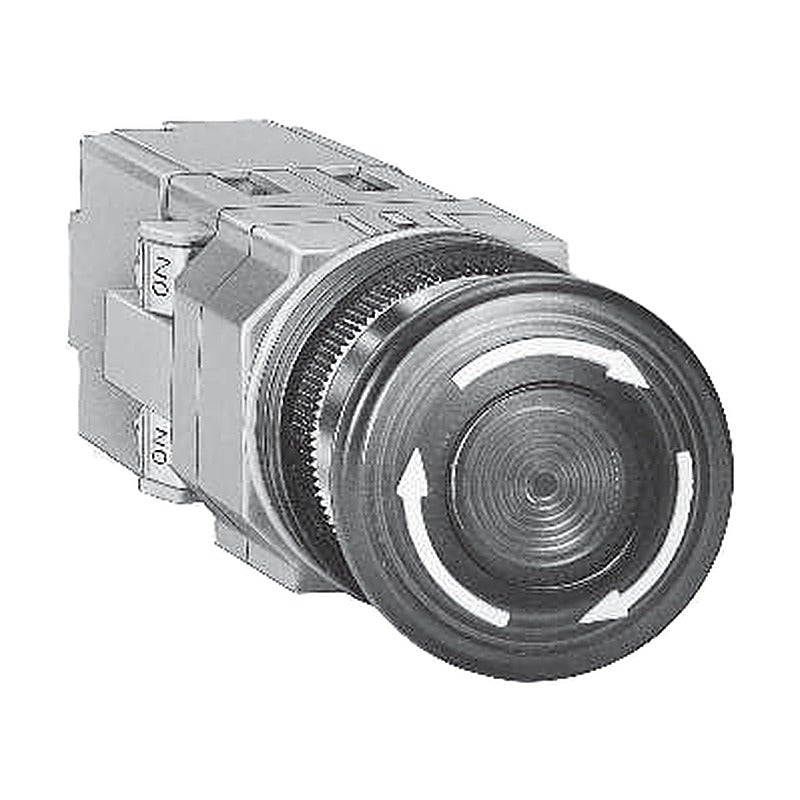

IDEC φ30 Series Illuminated Pushbuttons (Push-Lock / Push-Turn)

IDEC φ30 Series Illuminated Pushbuttons (Push-Lock / Push-Turn)

φ30 Series illuminated pushbuttons, push-lock / push-turn type, with LED or incandescent lamp (BA9S or E12 socket), momentary or alternate.

Key features

  • Specify the illumination colour code in the part number
  • Rated voltages AC/DC6V to AC200/220V
  • φ30 mm mounting heavy-duty control units
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • BS/BST single-contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator

Specifications

Series IDEC φ30 Series
Panel thickness 0.8 to 7.5 mm
Contact block BS/BST, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Protection IP65 (IEC 60529)
Source IDEC φ30 Series Control Units catalogue, p. 23-24
AVLN36611DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN36620DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLN36602DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AVLN31111DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN31120DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLN31102DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AVLN32211DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN32220DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLN32202DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AVLN31611DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN31620DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLN31602DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AVLN32611DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN32620DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLN32602DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AVLNE36611DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE36620DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLNE36602DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AVLNE31111DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE31120DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLNE31102DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AVLNE32211DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE32220DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLNE32202DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AVLNE31611DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE31620DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLNE31602DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AVLNE32611DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE32620DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLNE32602DNR Operator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AJLN36611DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN36611DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN36611DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN36611DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN36611DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN36620DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AJLN36620DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AJLN36620DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
AJLN36620DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AJLN36620DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AJLN36602DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AJLN36602DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
AJLN36602DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
AJLN36602DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
AJLN36602DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
AJLN31111DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN31111DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN31111DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN31111DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN31111DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN31120DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AJLN31120DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AJLN31120DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
AJLN31120DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AJLN31120DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AJLN31102DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AJLN31102DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
AJLN31102DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
AJLN31102DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
AJLN31102DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
AJLN32211DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN32211DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN32211DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN32211DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN32211DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN32220DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AJLN32220DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AJLN32220DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
AJLN32220DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AJLN32220DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AJLN32202DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AJLN32202DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
AJLN32202DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
AJLN32202DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
AJLN32202DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
AJLN31611DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN31611DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN31611DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN31611DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN31611DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN31620DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AJLN31620DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AJLN31620DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
AJLN31620DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AJLN31620DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AJLN31602DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AJLN31602DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
AJLN31602DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
AJLN31602DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
AJLN31602DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
AJLN32611DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN32611DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN32611DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN32611DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN32611DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN32620DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AJLN32620DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AJLN32620DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
AJLN32620DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AJLN32620DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AJLN32602DNR Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AJLN32602DNG Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
AJLN32602DNY Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
AJLN32602DNA Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
AJLN32602DNW Operator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
AVLN36611NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN36620NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLN36602NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AVLN38811NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN38820NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLN38802NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AVLN33311NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN33320NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLN33302NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AVLN31611NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN31620NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLN31602NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AVLN32611NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN32620NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLN32602NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AVLNE36611NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE36620NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLNE36602NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AVLNE38811NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE38820NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLNE38802NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AVLNE33311NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE33320NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLNE33302NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AVLN31811NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN31820NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLN31802NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AVLN32811NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN32820NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLN32802NR Operator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AJLN36611NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN36611NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN36611NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN36620NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AJLN36620NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AJLN36620NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AJLN36602NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AJLN36602NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
AJLN36602NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
AJLN38811NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN38811NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN38811NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN38820NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AJLN38820NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AJLN38820NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AJLN38802NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AJLN38802NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
AJLN38802NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
AJLN33311NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN33311NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN33311NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN33320NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AJLN33320NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AJLN33320NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AJLN33302NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AJLN33302NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
AJLN33302NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
AJLN31611NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN31611NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN31611NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN31620NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AJLN31620NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AJLN31620NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AJLN31602NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AJLN31602NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
AJLN31602NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
AJLN32611NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN32611NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN32611NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN32620NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AJLN32620NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AJLN32620NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AJLN32602NR Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AJLN32602NG Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
AJLN32602NA Operator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
Illuminated PushbuttonsIDEC
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC φ30 Series Illuminated Pushbuttons (Push-Lock / Push-Turn)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (180)

AVLN36611DNR, AVLN36620DNR, AVLN36602DNR, AVLN31111DNR, AVLN31120DNR, AVLN31102DNR, AVLN32211DNR, AVLN32220DNR, AVLN32202DNR, AVLN31611DNR + 170 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AVLN36611DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN36620DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLN36602DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AVLN31111DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN31120DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLN31102DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AVLN32211DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN32220DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLN32202DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AVLN31611DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN31620DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLN31602DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AVLN32611DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN32620DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLN32602DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AVLNE36611DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE36620DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLNE36602DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AVLNE31111DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE31120DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLNE31102DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AVLNE32211DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE32220DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLNE32202DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AVLNE31611DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE31620DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLNE31602DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AVLNE32611DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE32620DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLNE32602DNROperator: Mushroom push-lock turn-reset | Lamp: LED | Socket: E12 | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AJLN36611DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN36611DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN36611DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN36611DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN36611DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN36620DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AJLN36620DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AJLN36620DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
AJLN36620DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AJLN36620DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AJLN36602DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AJLN36602DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
AJLN36602DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Yellow
AJLN36602DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
AJLN36602DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
AJLN31111DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN31111DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN31111DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN31111DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN31111DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN31120DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AJLN31120DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AJLN31120DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
AJLN31120DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AJLN31120DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AJLN31102DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AJLN31102DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
AJLN31102DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Yellow
AJLN31102DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
AJLN31102DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
AJLN32211DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN32211DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN32211DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN32211DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN32211DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN32220DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AJLN32220DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AJLN32220DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
AJLN32220DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AJLN32220DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AJLN32202DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AJLN32202DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
AJLN32202DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Yellow
AJLN32202DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
AJLN32202DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
AJLN31611DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN31611DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN31611DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN31611DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN31611DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN31620DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AJLN31620DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AJLN31620DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
AJLN31620DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AJLN31620DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AJLN31602DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AJLN31602DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
AJLN31602DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Yellow
AJLN31602DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
AJLN31602DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
AJLN32611DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN32611DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN32611DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJLN32611DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN32611DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AJLN32620DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AJLN32620DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AJLN32620DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
AJLN32620DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AJLN32620DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AJLN32602DNROperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AJLN32602DNGOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
AJLN32602DNYOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Yellow
AJLN32602DNAOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber
AJLN32602DNWOperator: Mushroom push-turn lock | Lamp: LED | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
AVLN36611NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN36620NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLN36602NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AVLN38811NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN38820NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLN38802NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AVLN33311NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN33320NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLN33302NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AVLN31611NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN31620NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLN31602NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AVLN32611NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN32620NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLN32602NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AVLNE36611NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE36620NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLNE36602NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AVLNE38811NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE38820NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLNE38802NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AVLNE33311NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLNE33320NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLNE33302NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AVLN31811NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN31820NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLN31802NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AVLN32811NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLN32820NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLN32802NROperator: Mushroom push-lock turn-reset | Lamp: Incandescent 2W | Socket: E12 | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AJLN36611NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN36611NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN36611NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN36620NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AJLN36620NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AJLN36620NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AJLN36602NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
AJLN36602NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
AJLN36602NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Amber
AJLN38811NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN38811NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN38811NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN38820NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AJLN38820NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AJLN38820NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AJLN38802NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
AJLN38802NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
AJLN38802NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Amber
AJLN33311NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN33311NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN33311NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN33320NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AJLN33320NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AJLN33320NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AJLN33302NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
AJLN33302NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
AJLN33302NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Amber
AJLN31611NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN31611NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN31611NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN31620NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AJLN31620NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AJLN31620NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AJLN31602NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
AJLN31602NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
AJLN31602NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Amber
AJLN32611NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJLN32611NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJLN32611NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AJLN32620NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AJLN32620NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AJLN32620NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AJLN32602NROperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
AJLN32602NGOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
AJLN32602NAOperator: Mushroom push-turn lock | Lamp: Incandescent 1W | Socket: BA9S | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Amber

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
