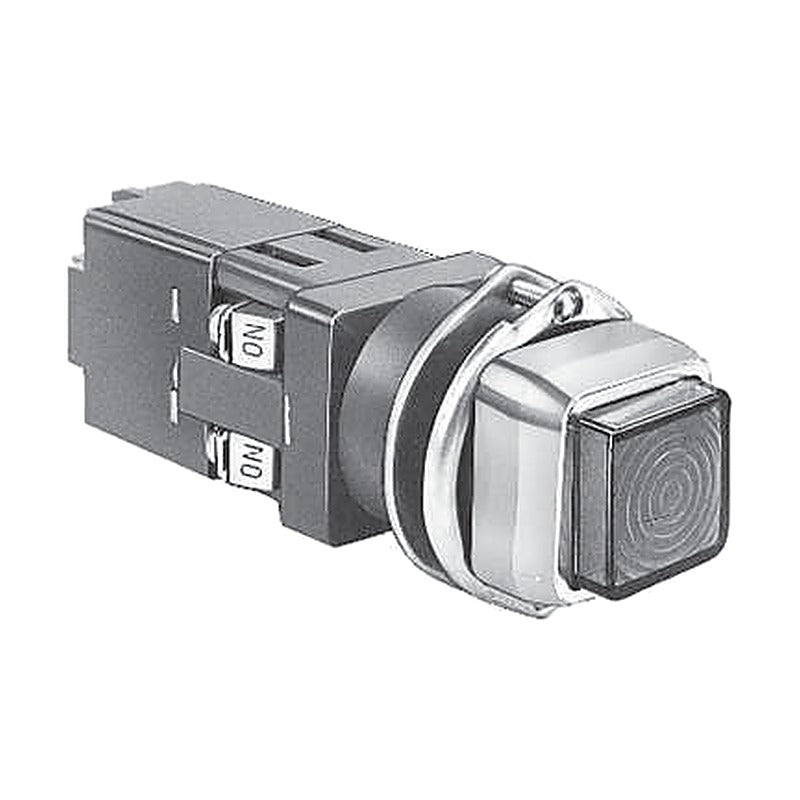

IDEC φ30 Series Illuminated Pushbuttons (Square, Rectangular, Lock)

IDEC φ30 Series Illuminated Pushbuttons (Square, Rectangular, Lock)

φ30 Series illuminated pushbuttons, square, rectangular, lock type, with LED or incandescent lamp (BA9S or E12 socket), momentary or alternate.

Key features

  • Specify the illumination colour code in the part number
  • Rated voltages AC/DC6V to AC200/220V
  • φ30 mm mounting heavy-duty control units
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • BS/BST single-contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator

Specifications

Lamp Incandescent 1W
Socket BA9S
Series IDEC φ30 Series
Panel thickness 0.8 to 7.5 mm
Contact block BS/BST, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Protection IP65 (IEC 60529)
Source IDEC φ30 Series Control Units catalogue, p. 22
ALN6L611R Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN6L611G Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN6L611O Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN6L611W Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN6L611S Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN6L620R Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
ALN6L620G Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
ALN6L620O Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Orange
ALN6L620W Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
ALN6L620S Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
ALN6L602R Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
ALN6L602G Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
ALN6L602O Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Orange
ALN6L602W Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
ALN6L602S Operator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
ALN8L811R Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN8L811G Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN8L811O Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN8L811W Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN8L811S Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN8L820R Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
ALN8L820G Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
ALN8L820O Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Orange
ALN8L820W Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
ALN8L820S Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
ALN8L802R Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
ALN8L802G Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
ALN8L802O Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Orange
ALN8L802W Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
ALN8L802S Operator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
ALN3L311R Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN3L311G Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN3L311O Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN3L311W Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN3L311S Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN3L320R Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
ALN3L320G Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
ALN3L320O Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Orange
ALN3L320W Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
ALN3L320S Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
ALN3L302R Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
ALN3L302G Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
ALN3L302O Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Orange
ALN3L302W Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
ALN3L302S Operator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
ALN1L611R Operator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN1L611G Operator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN1L611O Operator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN1L611W Operator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN1L611S Operator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN1L620R Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
ALN1L620G Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
ALN1L620O Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Orange
ALN1L620W Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
ALN1L620S Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
ALN1L602R Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
ALN1L602G Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
ALN1L602O Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Orange
ALN1L602W Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
ALN1L602S Operator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
ALN2L611R Operator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN2L611G Operator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN2L611O Operator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN2L611W Operator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN2L611S Operator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN2L620R Operator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
ALN2L620G Operator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
ALN2L620O Operator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Orange
ALN2L620W Operator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
ALN2L620S Operator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
ALN2L602R Operator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
ALN2L602G Operator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
ALN2L602O Operator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Orange
ALN2L602W Operator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
ALN2L602S Operator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
UOLQN6611R Operator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN6611G Operator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN6611O Operator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN6611W Operator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN6611C Operator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN6611S Operator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN6620R Operator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
UOLQN6620G Operator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
UOLQN6620O Operator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Orange
UOLQN6620W Operator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
UOLQN6620C Operator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Clear
UOLQN6620S Operator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
UOLQN6602R Operator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
UOLQN6602G Operator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
UOLQN6602O Operator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Orange
UOLQN6602W Operator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
UOLQN6602C Operator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Clear
UOLQN6602S Operator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
UOLQN8811R Operator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN8811G Operator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN8811O Operator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN8811W Operator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN8811C Operator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN8811S Operator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN8820R Operator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
UOLQN8820G Operator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
UOLQN8820O Operator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Orange
UOLQN8820W Operator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
UOLQN8820C Operator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Clear
UOLQN8820S Operator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
UOLQN8802R Operator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
UOLQN8802G Operator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
UOLQN8802O Operator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Orange
UOLQN8802W Operator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
UOLQN8802C Operator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Clear
UOLQN8802S Operator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
UOLQN3311R Operator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN3311G Operator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN3311O Operator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN3311W Operator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN3311C Operator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN3311S Operator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN3320R Operator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
UOLQN3320G Operator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
UOLQN3320O Operator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Orange
UOLQN3320W Operator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
UOLQN3320C Operator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Clear
UOLQN3320S Operator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
UOLQN3302R Operator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
UOLQN3302G Operator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
UOLQN3302O Operator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Orange
UOLQN3302W Operator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
UOLQN3302C Operator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Clear
UOLQN3302S Operator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
UOLQN1611R Operator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN1611G Operator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN1611O Operator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN1611W Operator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN1611C Operator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN1611S Operator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN1620R Operator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
UOLQN1620G Operator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
UOLQN1620O Operator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Orange
UOLQN1620W Operator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
UOLQN1620C Operator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Clear
UOLQN1620S Operator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
UOLQN1602R Operator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
UOLQN1602G Operator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
UOLQN1602O Operator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Orange
UOLQN1602W Operator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
UOLQN1602C Operator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Clear
UOLQN1602S Operator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
UOLQN2611R Operator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN2611G Operator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN2611O Operator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN2611W Operator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN2611C Operator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN2611S Operator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN2620R Operator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
UOLQN2620G Operator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
UOLQN2620O Operator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Orange
UOLQN2620W Operator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
UOLQN2620C Operator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Clear
UOLQN2620S Operator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
UOLQN2602R Operator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
UOLQN2602G Operator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
UOLQN2602O Operator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Orange
UOLQN2602W Operator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
UOLQN2602C Operator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Clear
UOLQN2602S Operator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
UOLQN6B611R Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN6B611G Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN6B611O Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN6B611W Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN6B611S Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN6B620R Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
UOLQN6B620G Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
UOLQN6B620O Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Orange
UOLQN6B620W Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
UOLQN6B620S Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
UOLQN6B602R Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
UOLQN6B602G Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
UOLQN6B602O Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Orange
UOLQN6B602W Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
UOLQN6B602S Operator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
UOLQN8B811R Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN8B811G Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN8B811O Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN8B811W Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN8B811S Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN8B820R Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
UOLQN8B820G Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
UOLQN8B820O Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Orange
UOLQN8B820W Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
UOLQN8B820S Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
UOLQN8B802R Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
UOLQN8B802G Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
UOLQN8B802O Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Orange
UOLQN8B802W Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
UOLQN8B802S Operator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
UOLQN3B311R Operator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN3B311G Operator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN3B311O Operator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN3B311W Operator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN3B311S Operator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN3B320R Operator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
UOLQN3B320G Operator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
UOLQN3B320O Operator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Orange
UOLQN3B320W Operator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
UOLQN3B320S Operator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
UOLQN3B302R Operator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
UOLQN3B302G Operator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
UOLQN3B302O Operator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Orange
UOLQN3B302W Operator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
UOLQN3B302S Operator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
UOLQN1B611R Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN1B611G Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN1B611O Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN1B611W Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN1B611S Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN1B620R Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
UOLQN1B620G Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
UOLQN1B620O Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Orange
UOLQN1B620W Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
UOLQN1B620S Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
UOLQN1B602R Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
UOLQN1B602G Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
UOLQN1B602O Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Orange
UOLQN1B602W Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
UOLQN1B602S Operator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
UOLQN2B611R Operator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN2B611G Operator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN2B611O Operator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN2B611W Operator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN2B611S Operator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN2B620R Operator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
UOLQN2B620G Operator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
UOLQN2B620O Operator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Orange
UOLQN2B620W Operator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
UOLQN2B620S Operator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
UOLQN2B602R Operator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
UOLQN2B602G Operator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
UOLQN2B602O Operator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Orange
UOLQN2B602W Operator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
UOLQN2B602S Operator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
Illuminated PushbuttonsIDEC
240 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC φ30 Series Illuminated Pushbuttons (Square, Rectangular, Lock)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (240)

ALN6L611R, ALN6L611G, ALN6L611O, ALN6L611W, ALN6L611S, ALN6L620R, ALN6L620G, ALN6L620O, ALN6L620W, ALN6L620S + 230 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ALN6L611ROperator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN6L611GOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN6L611OOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN6L611WOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN6L611SOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN6L620ROperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
ALN6L620GOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
ALN6L620OOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Orange
ALN6L620WOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
ALN6L620SOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
ALN6L602ROperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
ALN6L602GOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
ALN6L602OOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Orange
ALN6L602WOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
ALN6L602SOperator: Round, lock type | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
ALN8L811ROperator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN8L811GOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN8L811OOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN8L811WOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN8L811SOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN8L820ROperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
ALN8L820GOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
ALN8L820OOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Orange
ALN8L820WOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
ALN8L820SOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
ALN8L802ROperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
ALN8L802GOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
ALN8L802OOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Orange
ALN8L802WOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
ALN8L802SOperator: Round, lock type | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
ALN3L311ROperator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN3L311GOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN3L311OOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN3L311WOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN3L311SOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN3L320ROperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
ALN3L320GOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
ALN3L320OOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Orange
ALN3L320WOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
ALN3L320SOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
ALN3L302ROperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
ALN3L302GOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
ALN3L302OOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Orange
ALN3L302WOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
ALN3L302SOperator: Round, lock type | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
ALN1L611ROperator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN1L611GOperator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN1L611OOperator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN1L611WOperator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN1L611SOperator: Round, lock type | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN1L620ROperator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
ALN1L620GOperator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
ALN1L620OOperator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Orange
ALN1L620WOperator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
ALN1L620SOperator: Round, lock type | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
ALN1L602ROperator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
ALN1L602GOperator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
ALN1L602OOperator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Orange
ALN1L602WOperator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
ALN1L602SOperator: Round, lock type | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
ALN2L611ROperator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALN2L611GOperator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALN2L611OOperator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
ALN2L611WOperator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALN2L611SOperator: Round, lock type | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALN2L620ROperator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
ALN2L620GOperator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
ALN2L620OOperator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Orange
ALN2L620WOperator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
ALN2L620SOperator: Round | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
ALN2L602ROperator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
ALN2L602GOperator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
ALN2L602OOperator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Orange
ALN2L602WOperator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
ALN2L602SOperator: Round | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
UOLQN6611ROperator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN6611GOperator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN6611OOperator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN6611WOperator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN6611COperator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN6611SOperator: Square | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN6620ROperator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
UOLQN6620GOperator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
UOLQN6620OOperator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Orange
UOLQN6620WOperator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
UOLQN6620COperator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Clear
UOLQN6620SOperator: Square | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
UOLQN6602ROperator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
UOLQN6602GOperator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
UOLQN6602OOperator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Orange
UOLQN6602WOperator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
UOLQN6602COperator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Clear
UOLQN6602SOperator: Square | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
UOLQN8811ROperator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN8811GOperator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN8811OOperator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN8811WOperator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN8811COperator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN8811SOperator: Square | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN8820ROperator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
UOLQN8820GOperator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
UOLQN8820OOperator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Orange
UOLQN8820WOperator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
UOLQN8820COperator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Clear
UOLQN8820SOperator: Square | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
UOLQN8802ROperator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
UOLQN8802GOperator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
UOLQN8802OOperator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Orange
UOLQN8802WOperator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
UOLQN8802COperator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Clear
UOLQN8802SOperator: Square | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
UOLQN3311ROperator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN3311GOperator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN3311OOperator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN3311WOperator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN3311COperator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN3311SOperator: Square | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN3320ROperator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
UOLQN3320GOperator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
UOLQN3320OOperator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Orange
UOLQN3320WOperator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
UOLQN3320COperator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Clear
UOLQN3320SOperator: Square | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
UOLQN3302ROperator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
UOLQN3302GOperator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
UOLQN3302OOperator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Orange
UOLQN3302WOperator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
UOLQN3302COperator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Clear
UOLQN3302SOperator: Square | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
UOLQN1611ROperator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN1611GOperator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN1611OOperator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN1611WOperator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN1611COperator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN1611SOperator: Square | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN1620ROperator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
UOLQN1620GOperator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
UOLQN1620OOperator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Orange
UOLQN1620WOperator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
UOLQN1620COperator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Clear
UOLQN1620SOperator: Square | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
UOLQN1602ROperator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
UOLQN1602GOperator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
UOLQN1602OOperator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Orange
UOLQN1602WOperator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
UOLQN1602COperator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Clear
UOLQN1602SOperator: Square | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
UOLQN2611ROperator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN2611GOperator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN2611OOperator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN2611WOperator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN2611COperator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Clear
UOLQN2611SOperator: Square | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN2620ROperator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
UOLQN2620GOperator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
UOLQN2620OOperator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Orange
UOLQN2620WOperator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
UOLQN2620COperator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Clear
UOLQN2620SOperator: Square | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
UOLQN2602ROperator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
UOLQN2602GOperator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
UOLQN2602OOperator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Orange
UOLQN2602WOperator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
UOLQN2602COperator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Clear
UOLQN2602SOperator: Square | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue
UOLQN6B611ROperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN6B611GOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN6B611OOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN6B611WOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN6B611SOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN6B620ROperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
UOLQN6B620GOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
UOLQN6B620OOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Orange
UOLQN6B620WOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
UOLQN6B620SOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
UOLQN6B602ROperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Red
UOLQN6B602GOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Green
UOLQN6B602OOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Orange
UOLQN6B602WOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: White
UOLQN6B602SOperator: Rectangular (marking) | Voltage: AC/DC6V | Contacts: 2b (2NC) | Colour: Blue
UOLQN8B811ROperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN8B811GOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN8B811OOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN8B811WOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN8B811SOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN8B820ROperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
UOLQN8B820GOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
UOLQN8B820OOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Orange
UOLQN8B820WOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
UOLQN8B820SOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
UOLQN8B802ROperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Red
UOLQN8B802GOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Green
UOLQN8B802OOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Orange
UOLQN8B802WOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: White
UOLQN8B802SOperator: Rectangular (marking) | Voltage: AC/DC12V | Contacts: 2b (2NC) | Colour: Blue
UOLQN3B311ROperator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN3B311GOperator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN3B311OOperator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN3B311WOperator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN3B311SOperator: - | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN3B320ROperator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
UOLQN3B320GOperator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
UOLQN3B320OOperator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Orange
UOLQN3B320WOperator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
UOLQN3B320SOperator: - | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
UOLQN3B302ROperator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Red
UOLQN3B302GOperator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Green
UOLQN3B302OOperator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Orange
UOLQN3B302WOperator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: White
UOLQN3B302SOperator: Rectangular (marking) | Voltage: AC/DC24V | Contacts: 2b (2NC) | Colour: Blue
UOLQN1B611ROperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN1B611GOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN1B611OOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN1B611WOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN1B611SOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN1B620ROperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
UOLQN1B620GOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
UOLQN1B620OOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Orange
UOLQN1B620WOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
UOLQN1B620SOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
UOLQN1B602ROperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Red
UOLQN1B602GOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Green
UOLQN1B602OOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Orange
UOLQN1B602WOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: White
UOLQN1B602SOperator: Rectangular (marking) | Voltage: AC100/110V | Contacts: 2b (2NC) | Colour: Blue
UOLQN2B611ROperator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQN2B611GOperator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQN2B611OOperator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Orange
UOLQN2B611WOperator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQN2B611SOperator: Rectangular (marking) | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQN2B620ROperator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
UOLQN2B620GOperator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
UOLQN2B620OOperator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Orange
UOLQN2B620WOperator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
UOLQN2B620SOperator: - | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
UOLQN2B602ROperator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Red
UOLQN2B602GOperator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Green
UOLQN2B602OOperator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Orange
UOLQN2B602WOperator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: White
UOLQN2B602SOperator: - | Voltage: AC200/220V | Contacts: 2b (2NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
