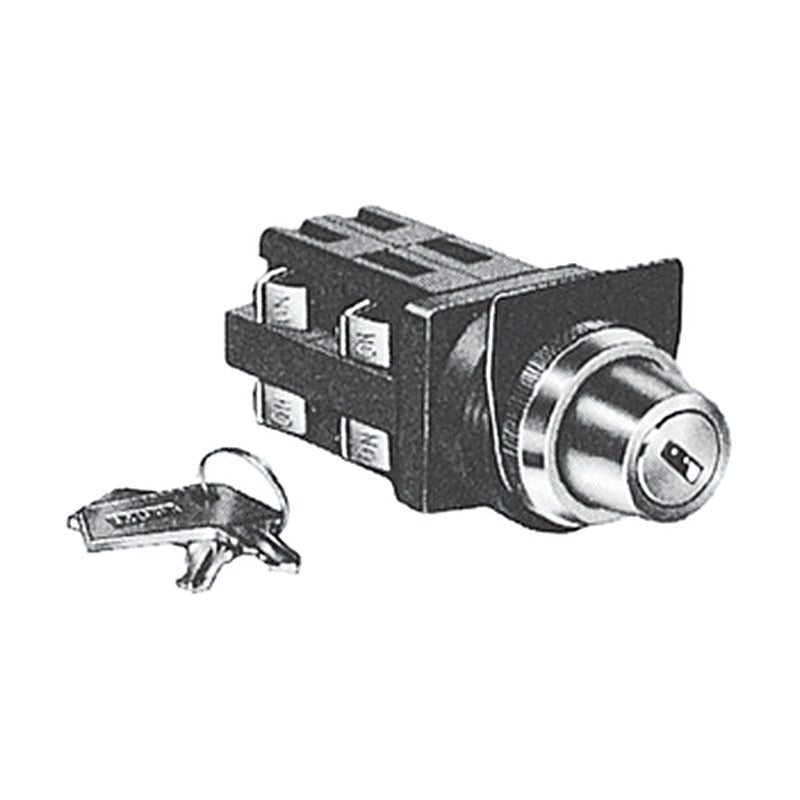

IDEC φ30 Series Key Selector Switches (ASN-K, ASTN-K)

IDEC φ30 Series Key Selector Switches (ASN-K, ASTN-K)

φ30 Series key-operated selector switches ASN□K, ASN□K-T (twin rod) and ASTN□K, 2- and 3-position.

Key features

  • Key number selectable
  • Nameplate sold separately
  • φ30 mm mounting heavy-duty control units
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • BS/BST single-contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator

Specifications

Series IDEC φ30 Series
Panel thickness 0.8 to 7.5 mm
Contact block BS/BST, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Protection IP65 (IEC 60529)
Source IDEC φ30 Series Control Units catalogue, p. 31-36
ASN3K10 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASN3K11 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN3K20 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASN3K22 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN3K7S Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(7s) [7s]
ASN1K11 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN1K22 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN1K5S Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: -
ASN1K7S Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b(7s) [7s]
ASN1K8S Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: -
ASN4K10 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASN4K11 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASN4K20 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASN4K22 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASN4K7S Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(7s) [7s]
ASN2K11 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASN2K22 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASN2K5S Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from left | Contacts: -
ASN2K7S Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 1a-1b(7s) [7s]
ASN2K8S Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from left | Contacts: -
ASN30K10 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASN30K11 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN30K20 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASN30K22 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN30K7S Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(7s) [7s]
ASN10K11 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN10K22 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN10K5S Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: -
ASN10K7S Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b(7s) [7s]
ASN10K8S Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: -
ASN40K10 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASN40K11 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASN40K20 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASN40K22 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASN40K7S Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b(7s) [7s]
ASN20K11 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASN20K22 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASN20K5S Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: -
ASN20K7S Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 1a-1b(7s) [7s]
ASN20K8S Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: -
ASN3K10-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASN3K11-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASN3K20-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASN3K22-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASN3K7S-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b(7s) [7s]
ASN1K20-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASN1K40-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASN1K5S-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b(5s) [5s]
ASN1K7S-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Maintained | Contacts: 2b(7s) [7s]
ASN1K8S-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Maintained | Contacts: 4b(8s) [8s]
ASN4K10-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASN4K11-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASN4K20-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASN4K22-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASN4K7S-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b(7s) [7s]
ASN2K20-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASN2K40-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASN2K5S-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b(5s) [5s]
ASN2K7S-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b(7s) [7s]
ASN2K8S-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b(8s) [8s]
ASN40K10-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASN40K11-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASN40K20-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASN40K22-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASN40K7S-T Operator: Key operated, twin rod | Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b(7s) [7s]
ASN20K20-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASN20K40-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASN20K5S-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b(5s) [5s]
ASN20K7S-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b(7s) [7s]
ASN20K8S-T Operator: Key operated, twin rod | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b(8s) [8s]
ASTN32K11 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN32K22 Operator: Key operated | Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN11K22 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN12K22 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN13K40 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN14K22 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN15K20 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASTN15K40 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASTN16K11 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASTN16K22 Operator: Key operated | Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASTN42K11 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASTN42K22 Operator: Key operated | Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN21K22 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN22K22 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASTN201K22 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN202K22 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN204K22 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASTN205K20 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASTN205K40 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASTN51K20 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASTN51K22 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN52K22 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASTN51K11 Operator: Key operated | Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 1a-1b (1NO+1NC)
Key SwitchesIDEC
93 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC φ30 Series Key Selector Switches (ASN-K, ASTN-K)

Brand IDEC·Key Switches

Available part numbers (93)

ASN3K10, ASN3K11, ASN3K20, ASN3K22, ASN3K7S, ASN1K11, ASN1K22, ASN1K5S, ASN1K7S, ASN1K8S + 83 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
