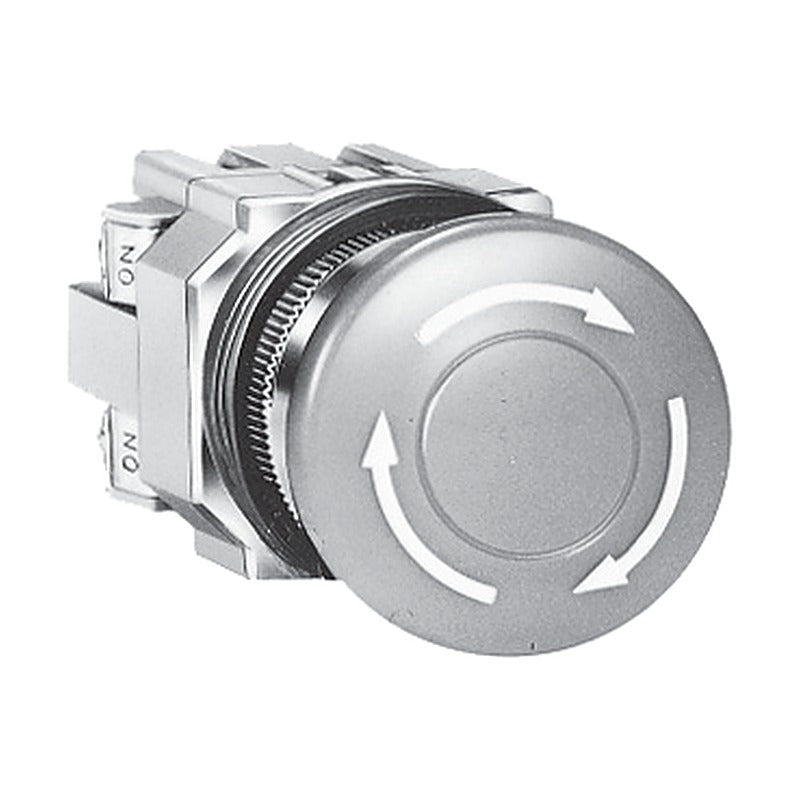

IDEC φ30 Series Locking, Key & Lever Operators

IDEC φ30 Series Locking, Key & Lever Operators

φ30 Series push-lock turn-reset, push-lock key-reset, push-turn lock, key-operated and lever-operated units.

Key features

  • Note: catalogue states these are not for ISO 13850 emergency-stop use
  • Lever type ATN4: 2-position
  • φ30 mm mounting heavy-duty control units
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • BS/BST single-contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator

Specifications

Series IDEC φ30 Series
Panel thickness 0.8 to 7.5 mm
Contact block BS/BST, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Protection IP65 (IEC 60529)
Source IDEC φ30 Series Control Units catalogue, p. 8
AVN310NR Operator: Mushroom push-lock turn-reset | Contacts: 1a (1NO) | Colour: Red
AVN310NY Operator: Mushroom push-lock turn-reset | Contacts: 1a (1NO) | Colour: Yellow
AVN301NR Operator: Mushroom push-lock turn-reset | Contacts: 1b (1NC) | Colour: Red
AVN301NY Operator: Mushroom push-lock turn-reset | Contacts: 1b (1NC) | Colour: Yellow
AVN311NR Operator: Mushroom push-lock turn-reset | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVN311NY Operator: Mushroom push-lock turn-reset | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AVN320NR Operator: Mushroom push-lock turn-reset | Contacts: 2a (2NO) | Colour: Red
AVN320NY Operator: Mushroom push-lock turn-reset | Contacts: 2a (2NO) | Colour: Yellow
AVN302NR Operator: Mushroom push-lock turn-reset | Contacts: 2b (2NC) | Colour: Red
AVN302NY Operator: Mushroom push-lock turn-reset | Contacts: 2b (2NC) | Colour: Yellow
AVN322NR Operator: Mushroom push-lock turn-reset | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVN322NY Operator: Mushroom push-lock turn-reset | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN3K10B Operator: Mushroom push-lock key-reset | Contacts: 1a (1NO) | Colour: Black
ABN3K10G Operator: Mushroom push-lock key-reset | Contacts: 1a (1NO) | Colour: Green
ABN3K10R Operator: Mushroom push-lock key-reset | Contacts: 1a (1NO) | Colour: Red
ABN3K10Y Operator: Mushroom push-lock key-reset | Contacts: 1a (1NO) | Colour: Yellow
ABN3K01B Operator: Mushroom push-lock key-reset | Contacts: 1b (1NC) | Colour: Black
ABN3K01G Operator: Mushroom push-lock key-reset | Contacts: 1b (1NC) | Colour: Green
ABN3K01R Operator: Mushroom push-lock key-reset | Contacts: 1b (1NC) | Colour: Red
ABN3K01Y Operator: Mushroom push-lock key-reset | Contacts: 1b (1NC) | Colour: Yellow
ABN3K11B Operator: Mushroom push-lock key-reset | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN3K11G Operator: Mushroom push-lock key-reset | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN3K11R Operator: Mushroom push-lock key-reset | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN3K11Y Operator: Mushroom push-lock key-reset | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN3K20B Operator: Mushroom push-lock key-reset | Contacts: 2a (2NO) | Colour: Black
ABN3K20G Operator: Mushroom push-lock key-reset | Contacts: 2a (2NO) | Colour: Green
ABN3K20R Operator: Mushroom push-lock key-reset | Contacts: 2a (2NO) | Colour: Red
ABN3K20Y Operator: Mushroom push-lock key-reset | Contacts: 2a (2NO) | Colour: Yellow
ABN3K02B Operator: Mushroom push-lock key-reset | Contacts: 2b (2NC) | Colour: Black
ABN3K02G Operator: Mushroom push-lock key-reset | Contacts: 2b (2NC) | Colour: Green
ABN3K02R Operator: Mushroom push-lock key-reset | Contacts: 2b (2NC) | Colour: Red
ABN3K02Y Operator: Mushroom push-lock key-reset | Contacts: 2b (2NC) | Colour: Yellow
ABN3K22B Operator: Mushroom push-lock key-reset | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN3K22G Operator: Mushroom push-lock key-reset | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN3K22R Operator: Mushroom push-lock key-reset | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN3K22Y Operator: Mushroom push-lock key-reset | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN4K10B Operator: Jumbo mushroom push-lock key-reset | Contacts: 1a (1NO) | Colour: Black
ABN4K10G Operator: Jumbo mushroom push-lock key-reset | Contacts: 1a (1NO) | Colour: Green
ABN4K10R Operator: Jumbo mushroom push-lock key-reset | Contacts: 1a (1NO) | Colour: Red
ABN4K01B Operator: Jumbo mushroom push-lock key-reset | Contacts: 1b (1NC) | Colour: Black
ABN4K01G Operator: Jumbo mushroom push-lock key-reset | Contacts: 1b (1NC) | Colour: Green
ABN4K01R Operator: Jumbo mushroom push-lock key-reset | Contacts: 1b (1NC) | Colour: Red
ABN4K11B Operator: Jumbo mushroom push-lock key-reset | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN4K11G Operator: Jumbo mushroom push-lock key-reset | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN4K11R Operator: Jumbo mushroom push-lock key-reset | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN4K20B Operator: Jumbo mushroom push-lock key-reset | Contacts: 2a (2NO) | Colour: Black
ABN4K20G Operator: Jumbo mushroom push-lock key-reset | Contacts: 2a (2NO) | Colour: Green
ABN4K20R Operator: Jumbo mushroom push-lock key-reset | Contacts: 2a (2NO) | Colour: Red
ABN4K02B Operator: Jumbo mushroom push-lock key-reset | Contacts: 2b (2NC) | Colour: Black
ABN4K02G Operator: Jumbo mushroom push-lock key-reset | Contacts: 2b (2NC) | Colour: Green
ABN4K02R Operator: Jumbo mushroom push-lock key-reset | Contacts: 2b (2NC) | Colour: Red
ABN4K22B Operator: Jumbo mushroom push-lock key-reset | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN4K22G Operator: Jumbo mushroom push-lock key-reset | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN4K22R Operator: Jumbo mushroom push-lock key-reset | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AJN310NB Operator: Mushroom push-turn lock | Contacts: 1a (1NO) | Colour: Black
AJN310NG Operator: Mushroom push-turn lock | Contacts: 1a (1NO) | Colour: Green
AJN310NR Operator: Mushroom push-turn lock | Contacts: 1a (1NO) | Colour: Red
AJN310NY Operator: Mushroom push-turn lock | Contacts: 1a (1NO) | Colour: Yellow
AJN301NB Operator: Mushroom push-turn lock | Contacts: 1b (1NC) | Colour: Black
AJN301NG Operator: Mushroom push-turn lock | Contacts: 1b (1NC) | Colour: Green
AJN301NR Operator: Mushroom push-turn lock | Contacts: 1b (1NC) | Colour: Red
AJN301NY Operator: Mushroom push-turn lock | Contacts: 1b (1NC) | Colour: Yellow
AJN311NB Operator: Mushroom push-turn lock | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AJN311NG Operator: Mushroom push-turn lock | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJN311NR Operator: Mushroom push-turn lock | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJN311NY Operator: Mushroom push-turn lock | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJN320NB Operator: Mushroom push-turn lock | Contacts: 2a (2NO) | Colour: Black
AJN320NG Operator: Mushroom push-turn lock | Contacts: 2a (2NO) | Colour: Green
AJN320NR Operator: Mushroom push-turn lock | Contacts: 2a (2NO) | Colour: Red
AJN320NY Operator: Mushroom push-turn lock | Contacts: 2a (2NO) | Colour: Yellow
AJN302NB Operator: Mushroom push-turn lock | Contacts: 2b (2NC) | Colour: Black
AJN302NG Operator: Mushroom push-turn lock | Contacts: 2b (2NC) | Colour: Green
AJN302NR Operator: Mushroom push-turn lock | Contacts: 2b (2NC) | Colour: Red
AJN302NY Operator: Mushroom push-turn lock | Contacts: 2b (2NC) | Colour: Yellow
AJN322NB Operator: Mushroom push-turn lock | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AJN322NG Operator: Mushroom push-turn lock | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AJN322NR Operator: Mushroom push-turn lock | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AJN322NY Operator: Mushroom push-turn lock | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN510 Operator: Key operated | Contacts: 1a (1NO) | Colour: -
ABN501 Operator: Key operated | Contacts: 1b (1NC) | Colour: -
ABN511 Operator: Key operated | Contacts: 1a-1b (1NO+1NC) | Colour: -
ABN520 Operator: Key operated | Contacts: 2a (2NO) | Colour: -
ABN502 Operator: Key operated | Contacts: 2b (2NC) | Colour: -
ABN522 Operator: Key operated | Contacts: 2a-2b (2NO+2NC) | Colour: -
ATN410 Operator: Lever | Contacts: 1a (1NO) | Colour: -
ATN401 Operator: Lever | Contacts: 1b (1NC) | Colour: -
ATN411 Operator: Lever | Contacts: 1a-1b (1NO+1NC) | Colour: -
ATN420 Operator: Lever | Contacts: 2a (2NO) | Colour: -
ATN402 Operator: Lever | Contacts: 2b (2NC) | Colour: -
ATN422 Operator: Lever | Contacts: 2a-2b (2NO+2NC) | Colour: -
PushbuttonsIDEC
90 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC φ30 Series Locking, Key & Lever Operators

Brand IDEC·Pushbuttons

Available part numbers (90)

AVN310NR, AVN310NY, AVN301NR, AVN301NY, AVN311NR, AVN311NY, AVN320NR, AVN320NY, AVN302NR, AVN302NY + 80 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
