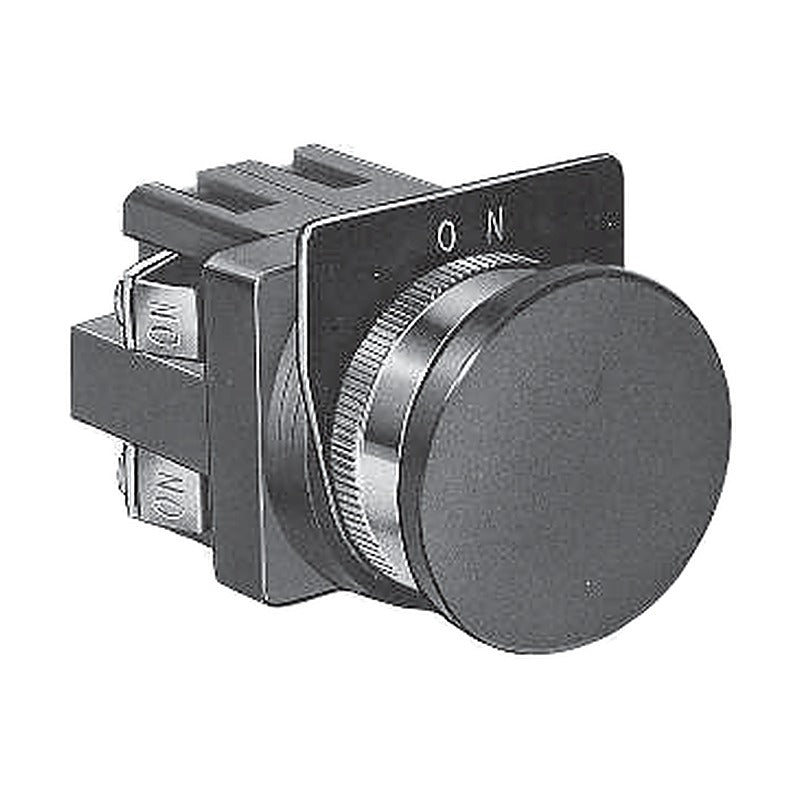

IDEC φ30 Series Mushroom & Square Pushbuttons

IDEC φ30 Series Mushroom & Square Pushbuttons

φ30 Series large and jumbo mushroom pushbuttons (with guard options) and square flush/extended pushbuttons.

Key features

  • Large, large full-guard, jumbo and guarded jumbo mushroom heads
  • Square flush and square extended types
  • φ30 mm mounting heavy-duty control units
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • BS/BST single-contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator

Specifications

Series IDEC φ30 Series
Panel thickness 0.8 to 7.5 mm
Contact block BS/BST, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Protection IP65 (IEC 60529)
Source IDEC φ30 Series Control Units catalogue, p. 7
ABN310B Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN310G Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN310R Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN310Y Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN310S Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN310W Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN301B Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN301G Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN301R Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN301Y Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN301S Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN301W Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN311B Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN311G Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN311R Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN311Y Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN311S Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN311W Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN320B Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN320G Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN320R Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN320Y Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN320S Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN320W Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN302B Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN302G Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN302R Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN302Y Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN302S Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN302W Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN322B Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN322G Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN322R Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN322Y Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN322S Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN322W Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON310B Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON310G Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON310R Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON310Y Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON310S Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON310W Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON301B Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON301G Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON301R Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON301Y Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON301S Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON301W Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON311B Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON311G Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON311R Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON311Y Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON311S Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON311W Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON320B Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON320G Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON320R Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON320Y Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON320S Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON320W Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON302B Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON302G Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON302R Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON302Y Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON302S Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON302W Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON322B Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON322G Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON322R Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON322Y Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON322S Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON322W Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN3G10B Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN3G10G Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN3G10R Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN3G10Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN3G10S Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN3G10W Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN3G01B Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN3G01G Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN3G01R Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN3G01Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN3G01S Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN3G01W Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN3G11B Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN3G11G Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN3G11R Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN3G11Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN3G11S Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN3G11W Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN3G20B Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN3G20G Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN3G20R Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN3G20Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN3G20S Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN3G20W Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN3G02B Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN3G02G Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN3G02R Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN3G02Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN3G02S Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN3G02W Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN3G22B Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN3G22G Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN3G22R Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN3G22Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN3G22S Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN3G22W Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN410B Operator: Jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN410G Operator: Jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN410R Operator: Jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN401B Operator: Jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN401G Operator: Jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN401R Operator: Jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN411B Operator: Jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN411G Operator: Jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN411R Operator: Jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN420B Operator: Jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN420G Operator: Jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN420R Operator: Jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN402B Operator: Jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN402G Operator: Jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN402R Operator: Jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN422B Operator: Jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN422G Operator: Jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN422R Operator: Jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN4G10B Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN4G10G Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN4G10R Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN4G01B Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN4G01G Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN4G01R Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN4G11B Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN4G11G Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN4G11R Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN4G20B Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN4G20G Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN4G20R Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN4G02B Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN4G02G Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN4G02R Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN4G22B Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN4G22G Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN4G22R Operator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN4F10B Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN4F10G Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN4F10R Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN4F01B Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN4F01G Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN4F01R Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN4F11B Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN4F11G Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN4F11R Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN4F20B Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN4F20G Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN4F20R Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN4F02B Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN4F02G Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN4F02R Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN4F22B Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN4F22G Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN4F22R Operator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQN110B Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
UBQN110G Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
UBQN110R Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
UBQN110Y Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
UBQN101B Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
UBQN101G Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
UBQN101R Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
UBQN101Y Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
UBQN111B Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UBQN111G Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UBQN111R Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UBQN111Y Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UBQN120B Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
UBQN120G Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
UBQN120R Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
UBQN120Y Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
UBQN102B Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
UBQN102G Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
UBQN102R Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
UBQN102Y Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
UBQN122B Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UBQN122G Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UBQN122R Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQN122Y Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UBQN210B Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
UBQN210G Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
UBQN210R Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
UBQN210Y Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
UBQN201B Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
UBQN201G Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
UBQN201R Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
UBQN201Y Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
UBQN211B Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UBQN211G Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UBQN211R Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UBQN211Y Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UBQN220B Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
UBQN220G Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
UBQN220R Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
UBQN220Y Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
UBQN202B Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
UBQN202G Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
UBQN202R Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
UBQN202Y Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
UBQN222B Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UBQN222G Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UBQN222R Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQN222Y Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
PushbuttonsIDEC
210 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC φ30 Series Mushroom & Square Pushbuttons

Brand IDEC·Pushbuttons

Available part numbers (210)

ABN310B, ABN310G, ABN310R, ABN310Y, ABN310S, ABN310W, ABN301B, ABN301G, ABN301R, ABN301Y + 200 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABN310BOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN310GOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN310ROperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN310YOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN310SOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN310WOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN301BOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN301GOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN301ROperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN301YOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN301SOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN301WOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN311BOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN311GOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN311ROperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN311YOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN311SOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN311WOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN320BOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN320GOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN320ROperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN320YOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN320SOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN320WOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN302BOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN302GOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN302ROperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN302YOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN302SOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN302WOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN322BOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN322GOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN322ROperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN322YOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN322SOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN322WOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON310BOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON310GOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON310ROperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON310YOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON310SOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON310WOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON301BOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON301GOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON301ROperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON301YOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON301SOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON301WOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON311BOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON311GOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON311ROperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON311YOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON311SOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON311WOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON320BOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON320GOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON320ROperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON320YOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON320SOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON320WOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON302BOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON302GOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON302ROperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON302YOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON302SOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON302WOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON322BOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON322GOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON322ROperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON322YOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON322SOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON322WOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN3G10BOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN3G10GOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN3G10ROperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN3G10YOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN3G10SOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN3G10WOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN3G01BOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN3G01GOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN3G01ROperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN3G01YOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN3G01SOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN3G01WOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN3G11BOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN3G11GOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN3G11ROperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN3G11YOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN3G11SOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN3G11WOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN3G20BOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN3G20GOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN3G20ROperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN3G20YOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN3G20SOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN3G20WOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN3G02BOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN3G02GOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN3G02ROperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN3G02YOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN3G02SOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN3G02WOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN3G22BOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN3G22GOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN3G22ROperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN3G22YOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN3G22SOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN3G22WOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN410BOperator: Jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN410GOperator: Jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN410ROperator: Jumbo mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN401BOperator: Jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN401GOperator: Jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN401ROperator: Jumbo mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN411BOperator: Jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN411GOperator: Jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN411ROperator: Jumbo mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN420BOperator: Jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN420GOperator: Jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN420ROperator: Jumbo mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN402BOperator: Jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN402GOperator: Jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN402ROperator: Jumbo mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN422BOperator: Jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN422GOperator: Jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN422ROperator: Jumbo mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN4G10BOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN4G10GOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN4G10ROperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN4G01BOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN4G01GOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN4G01ROperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN4G11BOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN4G11GOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN4G11ROperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN4G20BOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN4G20GOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN4G20ROperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN4G02BOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN4G02GOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN4G02ROperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN4G22BOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN4G22GOperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN4G22ROperator: Jumbo mushroom, guard (projecting) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN4F10BOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN4F10GOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN4F10ROperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN4F01BOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN4F01GOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN4F01ROperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN4F11BOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN4F11GOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN4F11ROperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN4F20BOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN4F20GOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN4F20ROperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN4F02BOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN4F02GOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN4F02ROperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN4F22BOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN4F22GOperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN4F22ROperator: Jumbo mushroom, guard (recessed) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQN110BOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
UBQN110GOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
UBQN110ROperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
UBQN110YOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
UBQN101BOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
UBQN101GOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
UBQN101ROperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
UBQN101YOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
UBQN111BOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UBQN111GOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UBQN111ROperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UBQN111YOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UBQN120BOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
UBQN120GOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
UBQN120ROperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
UBQN120YOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
UBQN102BOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
UBQN102GOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
UBQN102ROperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
UBQN102YOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
UBQN122BOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UBQN122GOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UBQN122ROperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQN122YOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UBQN210BOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
UBQN210GOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
UBQN210ROperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
UBQN210YOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
UBQN201BOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
UBQN201GOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
UBQN201ROperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
UBQN201YOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
UBQN211BOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UBQN211GOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UBQN211ROperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UBQN211YOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UBQN220BOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
UBQN220GOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
UBQN220ROperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
UBQN220YOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
UBQN202BOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
UBQN202GOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
UBQN202ROperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
UBQN202YOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
UBQN222BOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UBQN222GOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UBQN222ROperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQN222YOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
