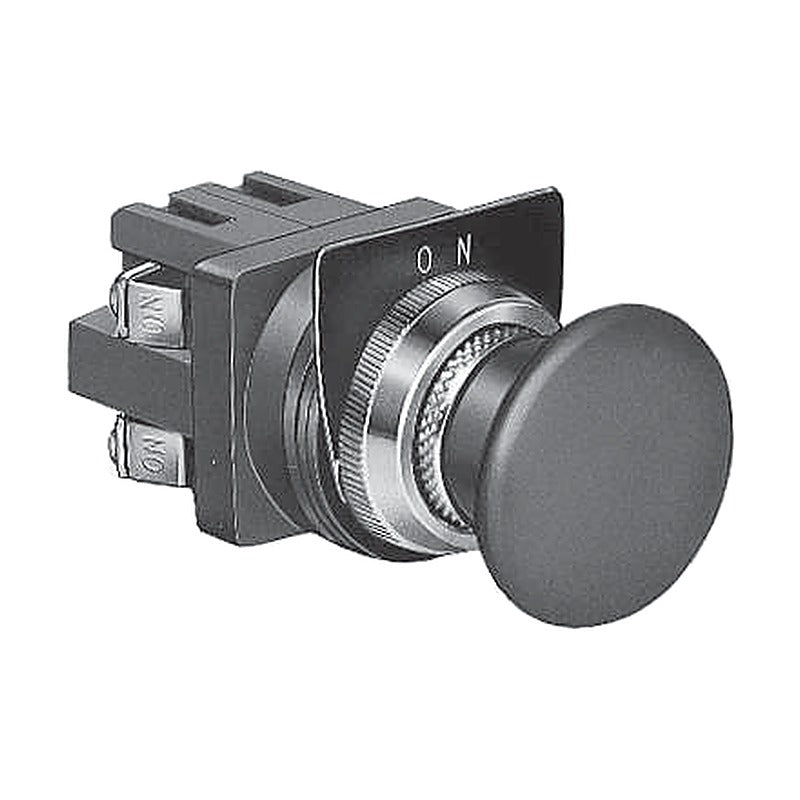

IDEC φ30 Series Pull, Pin-Lock & Two-Button Pushbuttons

IDEC φ30 Series Pull, Pin-Lock & Two-Button Pushbuttons

φ30 Series pull and push-pull switches, square two-button units (momentary or self-holding), pin-lock types and twin flush/mushroom units.

Key features

  • Two-button units: ON black / OFF red as standard
  • Pin lock with ON-lock (TK231-1) variant
  • φ30 mm mounting heavy-duty control units
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • BS/BST single-contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator

Specifications

Series IDEC φ30 Series
Panel thickness 0.8 to 7.5 mm
Contact block BS/BST, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Protection IP65 (IEC 60529)
Source IDEC φ30 Series Control Units catalogue, p. 9-10
ATN2310B Operator: Mushroom pull | Contacts: 1a (1NO) | Colour: Black
ATN2310G Operator: Mushroom pull | Contacts: 1a (1NO) | Colour: Green
ATN2310R Operator: Mushroom pull | Contacts: 1a (1NO) | Colour: Red
ATN2310Y Operator: Mushroom pull | Contacts: 1a (1NO) | Colour: Yellow
ATN2311B Operator: Mushroom pull | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ATN2311G Operator: Mushroom pull | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ATN2311R Operator: Mushroom pull | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ATN2311Y Operator: Mushroom pull | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ATN2320B Operator: Mushroom pull | Contacts: 2a (2NO) | Colour: Black
ATN2320G Operator: Mushroom pull | Contacts: 2a (2NO) | Colour: Green
ATN2320R Operator: Mushroom pull | Contacts: 2a (2NO) | Colour: Red
ATN2320Y Operator: Mushroom pull | Contacts: 2a (2NO) | Colour: Yellow
ATN2302B Operator: Mushroom pull | Contacts: 2b (2NC) | Colour: Black
ATN2302G Operator: Mushroom pull | Contacts: 2b (2NC) | Colour: Green
ATN2302R Operator: Mushroom pull | Contacts: 2b (2NC) | Colour: Red
ATN2302Y Operator: Mushroom pull | Contacts: 2b (2NC) | Colour: Yellow
ATN2111B Operator: Mushroom push-pull | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ATN2111G Operator: Mushroom push-pull | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ATN2111R Operator: Mushroom push-pull | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ATN2111Y Operator: Mushroom push-pull | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ATN2120B Operator: Mushroom push-pull | Contacts: 2a (2NO) | Colour: Black
ATN2120G Operator: Mushroom push-pull | Contacts: 2a (2NO) | Colour: Green
ATN2120R Operator: Mushroom push-pull | Contacts: 2a (2NO) | Colour: Red
ATN2120Y Operator: Mushroom push-pull | Contacts: 2a (2NO) | Colour: Yellow
ATN2102B Operator: Mushroom push-pull | Contacts: 2b (2NC) | Colour: Black
ATN2102G Operator: Mushroom push-pull | Contacts: 2b (2NC) | Colour: Green
ATN2102R Operator: Mushroom push-pull | Contacts: 2b (2NC) | Colour: Red
ATN2102Y Operator: Mushroom push-pull | Contacts: 2b (2NC) | Colour: Yellow
ATN2122B Operator: Mushroom push-pull | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ATN2122G Operator: Mushroom push-pull | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ATN2122R Operator: Mushroom push-pull | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ATN2122Y Operator: Mushroom push-pull | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ATN2211B Operator: Mushroom push-pull (return type) | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ATN2211G Operator: Mushroom push-pull (return type) | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ATN2211R Operator: Mushroom push-pull (return type) | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ATN2211Y Operator: Mushroom push-pull (return type) | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ATN2222B Operator: Mushroom push-pull (return type) | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ATN2222G Operator: Mushroom push-pull (return type) | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ATN2222R Operator: Mushroom push-pull (return type) | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ATN2222Y Operator: Mushroom push-pull (return type) | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UWQN11010 Operator: Square 2-button | Contacts: 1a (1NO) | Colour: -
UWQN11001 Operator: Square 2-button | Contacts: 1a (1NO) | Colour: -
UWQN12002 Operator: Square 2-button | Contacts: 2a (2NO) | Colour: -
ABN8P10 Operator: Pin lock | Contacts: 1a (1NO) | Colour: -
ABN8P01 Operator: Pin lock | Contacts: 1b (1NC) | Colour: -
ABN8P11 Operator: Pin lock | Contacts: 1a-1b (1NO+1NC) | Colour: -
ABN8P20 Operator: Pin lock | Contacts: 2a (2NO) | Colour: -
ABN8P02 Operator: Pin lock | Contacts: 2b (2NC) | Colour: -
ABN8P22 Operator: Pin lock | Contacts: 2a-2b (2NO+2NC) | Colour: -
ABN8P10-TK231-1 Operator: Pin lock | Contacts: 1a (1NO) | Colour: -
ABN8P01-TK231-1 Operator: Pin lock | Contacts: 1b (1NC) | Colour: -
ABN8P11-TK231-1 Operator: Pin lock | Contacts: 1a-1b (1NO+1NC) | Colour: -
ABN8P20-TK231-1 Operator: Pin lock | Contacts: 2a (2NO) | Colour: -
ABN8P02-TK231-1 Operator: Pin lock | Contacts: 2b (2NC) | Colour: -
ABN8P22-TK231-1 Operator: Pin lock | Contacts: 2a-2b (2NO+2NC) | Colour: -
UWQN21000 Operator: Square 2-button | Contacts: 1a (1NO) | Colour: -
UWQN20100 Operator: Square 2-button | Contacts: 1b (1NC) | Colour: -
UWQN21100 Operator: Square 2-button | Contacts: 1a-1b (1NO+1NC) | Colour: -
UWQN22000 Operator: Square 2-button | Contacts: 2a (2NO) | Colour: -
UWQN20200 Operator: Square 2-button | Contacts: 2b (2NC) | Colour: -
ABBN1110 Operator: Flush + flush | Contacts: 1a (1NO) | Colour: -
ABBN1101 Operator: Flush + flush | Contacts: 1b (1NC) | Colour: -
ABBN1111 Operator: Flush + flush | Contacts: 1a-1b (1NO+1NC) | Colour: -
ABBN1120 Operator: Flush + flush | Contacts: 2a (2NO) | Colour: -
ABBN1102 Operator: Flush + flush | Contacts: 2b (2NC) | Colour: -
ABBN1122 Operator: Flush + flush | Contacts: 2a-2b (2NO+2NC) | Colour: -
ABBN3310 Operator: Mushroom + mushroom (no buttons) | Contacts: 1a (1NO) | Colour: -
ABBN3301 Operator: Mushroom + mushroom (no buttons) | Contacts: 1b (1NC) | Colour: -
ABBN3311 Operator: Mushroom + mushroom (no buttons) | Contacts: 1a-1b (1NO+1NC) | Colour: -
ABBN3320 Operator: Mushroom + mushroom (no buttons) | Contacts: 2a (2NO) | Colour: -
ABBN3302 Operator: Mushroom + mushroom (no buttons) | Contacts: 2b (2NC) | Colour: -
ABBN3322 Operator: Mushroom + mushroom (no buttons) | Contacts: 2a-2b (2NO+2NC) | Colour: -
