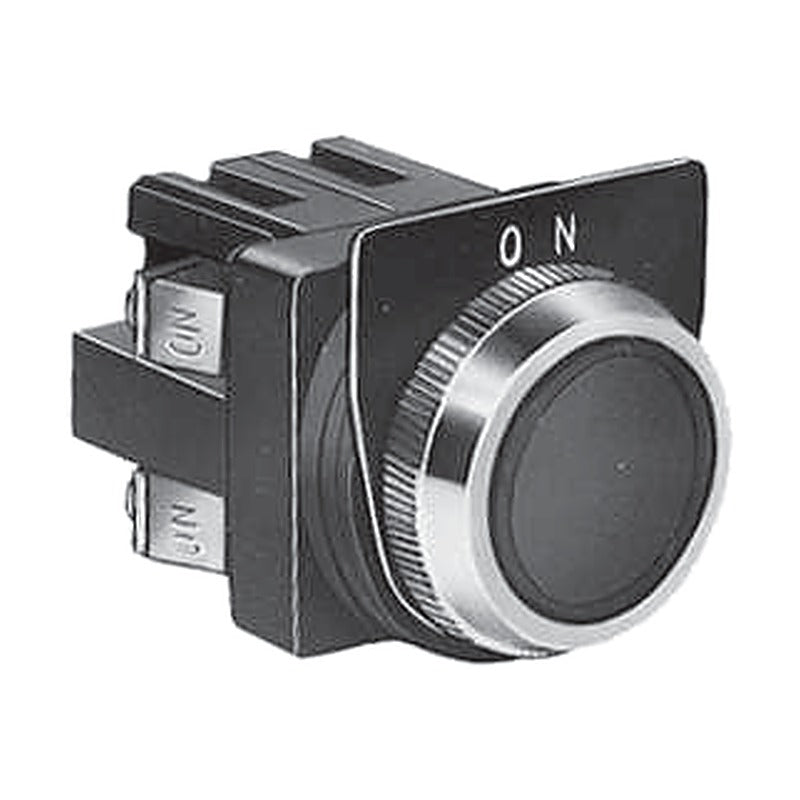

IDEC φ30 Series Pushbuttons (Flush, Extended, Half/Full Guard)

IDEC φ30 Series Pushbuttons (Flush, Extended, Half/Full Guard)

φ30 Series heavy-duty pushbuttons with flush, extended, extended half-guard and extended full-guard buttons, momentary or alternate.

Key features

  • Chrome-plated metal ring; nameplate sold separately
  • Flush types without colour code are supplied with B, G, R caps
  • φ30 mm mounting heavy-duty control units
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • BS/BST single-contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator

Specifications

Series IDEC φ30 Series
Panel thickness 0.8 to 7.5 mm
Contact block BS/BST, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Dielectric strength AC 2500 V, 1 min (live to dead metal)
Protection IP65 (IEC 60529)
Source IDEC φ30 Series Control Units catalogue, p. 6
ABN110 Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: B/G/R caps supplied
ABN110Y Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN110S Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN110W Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN101 Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: B/G/R caps supplied
ABN101Y Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN101S Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN101W Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN111 Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: B/G/R caps supplied
ABN111Y Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN111S Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN111W Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN120 Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: B/G/R caps supplied
ABN120Y Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN120S Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN120W Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN102 Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: B/G/R caps supplied
ABN102Y Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN102S Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN102W Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN122 Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: B/G/R caps supplied
ABN122Y Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN122S Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN122W Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON110B Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON110G Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON110R Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON110Y Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON110S Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON110W Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON101B Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON101G Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON101R Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON101Y Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON101S Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON101W Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON111B Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON111G Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON111R Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON111Y Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON111S Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON111W Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON120B Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON120G Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON120R Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON120Y Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON120S Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON120W Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON102B Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON102G Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON102R Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON102Y Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON102S Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON102W Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON122B Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON122G Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON122R Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON122Y Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON122S Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON122W Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN210B Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN210G Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN210R Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN210Y Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN210S Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN210W Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN201B Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN201G Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN201R Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN201Y Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN201S Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN201W Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN211B Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN211G Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN211R Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN211Y Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN211S Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN211W Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN220B Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN220G Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN220R Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN220Y Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN220S Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN220W Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN202B Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN202G Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN202R Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN202Y Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN202S Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN202W Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN222B Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN222G Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN222R Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN222Y Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN222S Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN222W Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON210B Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON210G Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON210R Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON210Y Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON210S Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON210W Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON201B Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON201G Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON201R Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON201Y Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON201S Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON201W Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON211B Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON211G Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON211R Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON211Y Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON211S Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON211W Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON220B Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON220G Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON220R Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON220Y Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON220S Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON220W Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON202B Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON202G Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON202R Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON202Y Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON202S Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON202W Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON222B Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON222G Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON222R Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON222Y Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON222S Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON222W Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN2G10B Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN2G10G Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN2G10R Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN2G10Y Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN2G10S Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN2G10W Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN2G01B Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN2G01G Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN2G01R Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN2G01Y Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN2G01S Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN2G01W Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN2G11B Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN2G11G Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN2G11R Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN2G11Y Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN2G11S Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN2G11W Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN2G20B Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN2G20G Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN2G20R Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN2G20Y Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN2G20S Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN2G20W Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN2G02B Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN2G02G Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN2G02R Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN2G02Y Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN2G02S Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN2G02W Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN2G22B Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN2G22G Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN2G22R Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN2G22Y Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN2G22S Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN2G22W Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON2G10B Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON2G10G Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON2G10R Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON2G10Y Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON2G10S Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON2G10W Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON2G01B Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON2G01G Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON2G01R Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON2G01Y Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON2G01S Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON2G01W Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON2G11B Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON2G11G Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON2G11R Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON2G11Y Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON2G11S Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON2G11W Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON2G20B Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON2G20G Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON2G20R Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON2G20Y Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON2G20S Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON2G20W Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON2G02B Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON2G02G Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON2G02R Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON2G02Y Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON2G02S Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON2G02W Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON2G22B Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON2G22G Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON2G22R Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON2G22Y Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON2G22S Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON2G22W Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN2F10B Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN2F10G Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN2F10R Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN2F10Y Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN2F10S Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN2F10W Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN2F01B Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN2F01G Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN2F01R Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN2F01Y Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN2F01S Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN2F01W Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN2F11B Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN2F11G Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN2F11R Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN2F11Y Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN2F11S Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN2F11W Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN2F20B Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN2F20G Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN2F20R Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN2F20Y Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN2F20S Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN2F20W Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN2F02B Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN2F02G Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN2F02R Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN2F02Y Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN2F02S Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN2F02W Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN2F22B Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN2F22G Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN2F22R Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN2F22Y Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN2F22S Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN2F22W Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON2F10B Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON2F10G Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON2F10R Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON2F10Y Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON2F10S Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON2F10W Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON2F01B Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON2F01G Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON2F01R Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON2F01Y Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON2F01S Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON2F01W Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON2F11B Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON2F11G Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON2F11R Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON2F11Y Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON2F11S Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON2F11W Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON2F20B Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON2F20G Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON2F20R Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON2F20Y Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON2F20S Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON2F20W Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON2F02B Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON2F02G Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON2F02R Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON2F02Y Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON2F02S Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON2F02W Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON2F22B Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON2F22G Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON2F22R Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON2F22Y Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON2F22S Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON2F22W Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
PushbuttonsIDEC
276 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC φ30 Series Pushbuttons (Flush, Extended, Half/Full Guard)

Brand IDEC·Pushbuttons

Available part numbers (276)

ABN110, ABN110Y, ABN110S, ABN110W, ABN101, ABN101Y, ABN101S, ABN101W, ABN111, ABN111Y + 266 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABN110Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: B/G/R caps supplied
ABN110YOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN110SOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN110WOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN101Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: B/G/R caps supplied
ABN101YOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN101SOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN101WOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN111Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: B/G/R caps supplied
ABN111YOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN111SOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN111WOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN120Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: B/G/R caps supplied
ABN120YOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN120SOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN120WOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN102Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: B/G/R caps supplied
ABN102YOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN102SOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN102WOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN122Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: B/G/R caps supplied
ABN122YOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN122SOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN122WOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON110BOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON110GOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON110ROperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON110YOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON110SOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON110WOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON101BOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON101GOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON101ROperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON101YOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON101SOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON101WOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON111BOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON111GOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON111ROperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON111YOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON111SOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON111WOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON120BOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON120GOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON120ROperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON120YOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON120SOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON120WOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON102BOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON102GOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON102ROperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON102YOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON102SOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON102WOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON122BOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON122GOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON122ROperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON122YOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON122SOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON122WOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN210BOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN210GOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN210ROperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN210YOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN210SOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN210WOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN201BOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN201GOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN201ROperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN201YOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN201SOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN201WOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN211BOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN211GOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN211ROperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN211YOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN211SOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN211WOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN220BOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN220GOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN220ROperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN220YOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN220SOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN220WOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN202BOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN202GOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN202ROperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN202YOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN202SOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN202WOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN222BOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN222GOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN222ROperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN222YOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN222SOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN222WOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON210BOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON210GOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON210ROperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON210YOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON210SOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON210WOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON201BOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON201GOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON201ROperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON201YOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON201SOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON201WOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON211BOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON211GOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON211ROperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON211YOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON211SOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON211WOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON220BOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON220GOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON220ROperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON220YOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON220SOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON220WOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON202BOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON202GOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON202ROperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON202YOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON202SOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON202WOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON222BOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON222GOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON222ROperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON222YOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON222SOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON222WOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN2G10BOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN2G10GOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN2G10ROperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN2G10YOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN2G10SOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN2G10WOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN2G01BOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN2G01GOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN2G01ROperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN2G01YOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN2G01SOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN2G01WOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN2G11BOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN2G11GOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN2G11ROperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN2G11YOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN2G11SOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN2G11WOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN2G20BOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN2G20GOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN2G20ROperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN2G20YOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN2G20SOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN2G20WOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN2G02BOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN2G02GOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN2G02ROperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN2G02YOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN2G02SOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN2G02WOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN2G22BOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN2G22GOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN2G22ROperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN2G22YOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN2G22SOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN2G22WOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON2G10BOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON2G10GOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON2G10ROperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON2G10YOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON2G10SOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON2G10WOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON2G01BOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON2G01GOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON2G01ROperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON2G01YOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON2G01SOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON2G01WOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON2G11BOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON2G11GOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON2G11ROperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON2G11YOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON2G11SOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON2G11WOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON2G20BOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON2G20GOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON2G20ROperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON2G20YOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON2G20SOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON2G20WOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON2G02BOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON2G02GOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON2G02ROperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON2G02YOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON2G02SOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON2G02WOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON2G22BOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON2G22GOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON2G22ROperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON2G22YOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON2G22SOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON2G22WOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABN2F10BOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABN2F10GOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABN2F10ROperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABN2F10YOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABN2F10SOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABN2F10WOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABN2F01BOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABN2F01GOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABN2F01ROperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABN2F01YOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABN2F01SOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABN2F01WOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABN2F11BOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABN2F11GOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABN2F11ROperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABN2F11YOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABN2F11SOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABN2F11WOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABN2F20BOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABN2F20GOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABN2F20ROperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABN2F20YOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABN2F20SOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABN2F20WOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABN2F02BOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABN2F02GOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABN2F02ROperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABN2F02YOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABN2F02SOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABN2F02WOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABN2F22BOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABN2F22GOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABN2F22ROperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABN2F22YOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABN2F22SOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABN2F22WOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AON2F10BOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AON2F10GOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AON2F10ROperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AON2F10YOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AON2F10SOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AON2F10WOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AON2F01BOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AON2F01GOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AON2F01ROperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AON2F01YOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AON2F01SOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AON2F01WOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AON2F11BOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AON2F11GOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AON2F11ROperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AON2F11YOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AON2F11SOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AON2F11WOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AON2F20BOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AON2F20GOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AON2F20ROperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AON2F20YOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AON2F20SOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AON2F20WOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AON2F02BOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AON2F02GOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AON2F02ROperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AON2F02YOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AON2F02SOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AON2F02WOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AON2F22BOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AON2F22GOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AON2F22ROperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AON2F22YOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AON2F22SOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AON2F22WOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
